012500 Series
25B17.5 Trailer
The 25B17.5FB is a compact yet incredibly well-insulated travel trailer, perfect for couples who want to explore off the beaten path without sacrificing comfort.
02Specs & Features
Detailed specifications for 25B17.5FB.
Overall Length17'-5" (5.31 m) (Does not include optional Front Cargo Box)
Overall Width8'-0" (2.44 m)
Overall Height8'-8" (2.64 m) (To top of the refrigerator vent)
Interior Height6'-4" (1.93 m)
Base Dry Weight3,360 lb (1,525 kg)
Hitch Weight315 lb (143 kg)
Axle Rating1×4,400 lb (1×1,996 kg)
GVWR4,300 lb (1,950 kg)
TiresST225/75R15
Fresh Water30 gal (115 L)
Grey Water21 gal (83 L)
Black Water21 gal (83 L)
LPG Capacity2×30 lb (2×18 L)
Water Heater6 gal (23 L)
Furnace20,000 BTU
Fridge7 cu ft (198 L)
Standard features included on every 25B17.5FB — built in at the factory.
Exterior
- Lightweight Two Piece Fiberglass Exterior Shell
- 1 1/2” High Density EPS Insulation (R8)
- Radius Corner Solar Reflective Safety Glass Thermal Pane Windows with Screens
- Folding Assist Handle
- Aluminum Covered Rear Bumper
- E-Z Lube Wide Track Axle with Self Adjusting Electric Brakes
- Spare Tire and Carrier
- Aluminum Wheels
- Continental Tire Kit
- Break Away Switch
- Stabilizer Jacks (front & rear)
- Power Tongue Jack
- LED Exterior Clearance and Directional Lighting
- Molded Fiberglass Rock Guard with Gas Struts
- Ladder
- Solar System - 300W Solar Panels with MPPT Bluetooth Charge Controller & Display
- Electric 10' Awning
- Molded Fibreglass Propane Bottle Cover
- Dual 30 lb Propane Tanks with Auto Changeover & OPD Valves
- Porch, Hitch and Roadside Lights
Interior
- Washable Vinyl Wall Panelling
- Marine Quality Fabric Headliner
- Face Framed Double Screwed Cabinets
- Spring Filled Foam Mattress
- Roller Shades
- LED Lighting
- LCD 12 Volt TV Prep Package
- Skylight in Living Room with Pleated Shade
Electrical
- Electrical Battery Disconnect
- Electrical 120 VAC / 30 Amp Service / 45 Amp DC Power Converter with Battery Charger
- Pre-wired for Roof Air Conditioner
- Power Fan in Bathroom
- Maxxair Fan (choice of location)
- Battery Ready
- Detachable 30 Amp Power Cord
Safety
- Smoke, Carbon Monoxide and Propane Detectors
- Fire Extinguisher
- Emergency Egress Window
Kitchen & Appliances
- Cooktop 2 Burner with Glass Cover
- 12 Volt Range Hood
- 20,000 BTU Furnace
- Stereo AM/FM CD Player (Satellite Ready)
- Microwave Oven (7 cu ft)
- Monitor Panel (See Level)
- Round Stainless Steel Sink with Hi-Rise Faucet
- Cutting Board
- Stainless Steel Lightweight Refrigerator
Plumbing
- City Water Hookup
- Porcelain Toilet
- 12 Volt Demand Water Pump System
- Molded Fiberglass Shower Enclosure
- Exterior Shower with Winterizing Valves
- Water Heater Bypass System & RV Antifreeze Pickup System for Winterization
- Heated and Enclosed Holding Tanks
- Black Tank Rinse System
- LP / 110V Hot Water Heater
Options available for the 25B17.5FB — tailor your build through your dealer.
- Air Conditioner - MACH 10 NDQ - 13,500 BTU
- Air Conditioner - Truma Aventa Eco (must remove skylight in living room)
- Winegard AIR 360 & LP 5G Antenna
- Exterior Stereo Speakers
- Maxxair Exhaust Fan (Bathroom)
- Maxxair 2 Way Fan (Bedroom and/or Galley)
- Fiberglass Front Cargo Box (Adds 2' to length of Trailer)
- Generator Ready Package with Auto Transfer Switch
- Generator - Cummins Onan 2.5kW Propane
- LCD 12 Volt TV
- Leather Decor Upgrade (Simulated)
- Privacy Curtain
- RV BBQ Hook Up
- Receiver for 2" Bike Rack
- Rear Roof Rack
- Wireless Rear View Camera System
- Truma Combi Comfort Plus (replaces hot water heater & furnace)
- Truma Aquago (On Demand Water Heater)
- EcoFlow Power System - includes 5kW Lithium Battery and 3.6kW Inverter with option of adding 2kW and 5kW Batteries, includes 400W solar panels
- Two or Four Inch Lift
Personalize your Bigfoot RV with our curated selection of premium interior materials and finishes.
Onyx LeatherUpholsteryValances
Quick Silver LeatherUpholsteryValances
Windswept LeatherUpholsteryValances
Evolution LeatherUpholsteryValances
Windswept FabricUpholsteryValances
Evolution FabricUpholsteryValances
Canoe BirchCabinets
DriftwoodCabinets
Birch PlankFlooring
CarpetFlooring
Counter LaminateSurfaces
Wall VinylSurfaces
Marine HeadlinerSurfaces

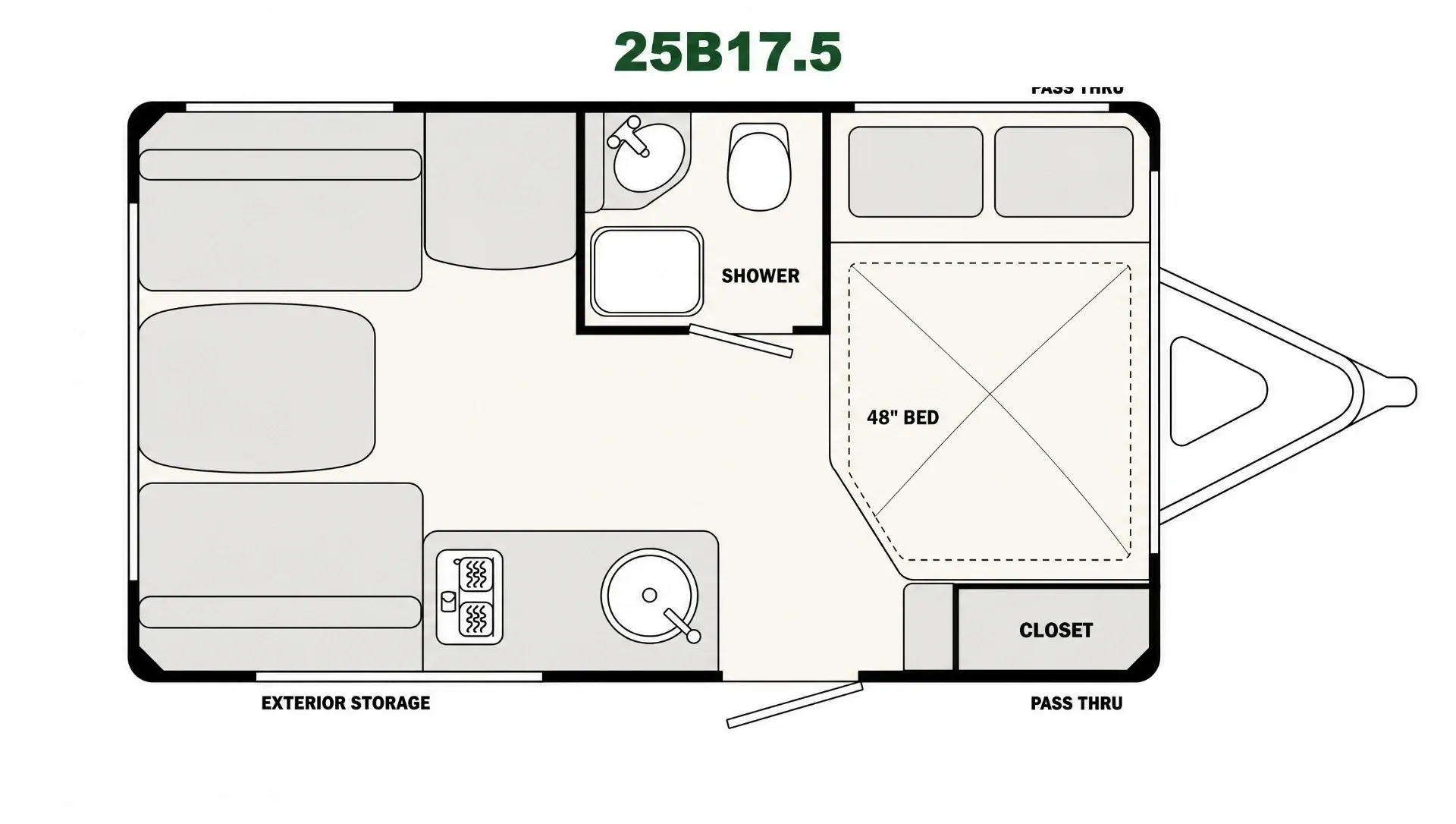

03Floor Plan
The 25B17.5FB Layout
Click to enlarge
04Photo Gallery
Experience the Details
A closer look at the 25B17.5.
05Walkthrough
See It In Action
Watch the 25B17.5 and discover what makes it legendary.
Other Trailers
Explore more models in the Bigfoot lineup.
Model Comparison
Select two Bigfoot Travel Trailer models to compare their specifications side-by-side.
VS
| Overall Length | ||
| Overall Width | ||
| Overall Height | ||
| Interior Height | ||
| Base Dry Weight | ||
| Hitch Weight | ||
| Axle Rating | ||
| GVWR | ||
| Tires | ||
| Fresh Water | ||
| Grey Water | ||
| Black Water | ||
| LPG Capacity | ||
| Water Heater | ||
| Furnace | ||
| Refrigerator |
06Next Steps
Ready to Start Your Adventure?
Contact your local Bigfoot RV dealer today for pricing and availability.
