01B17.5 Series

25B17.5FB

Name: B17.5 25B17.5FB
Brand: Bigfoot RV

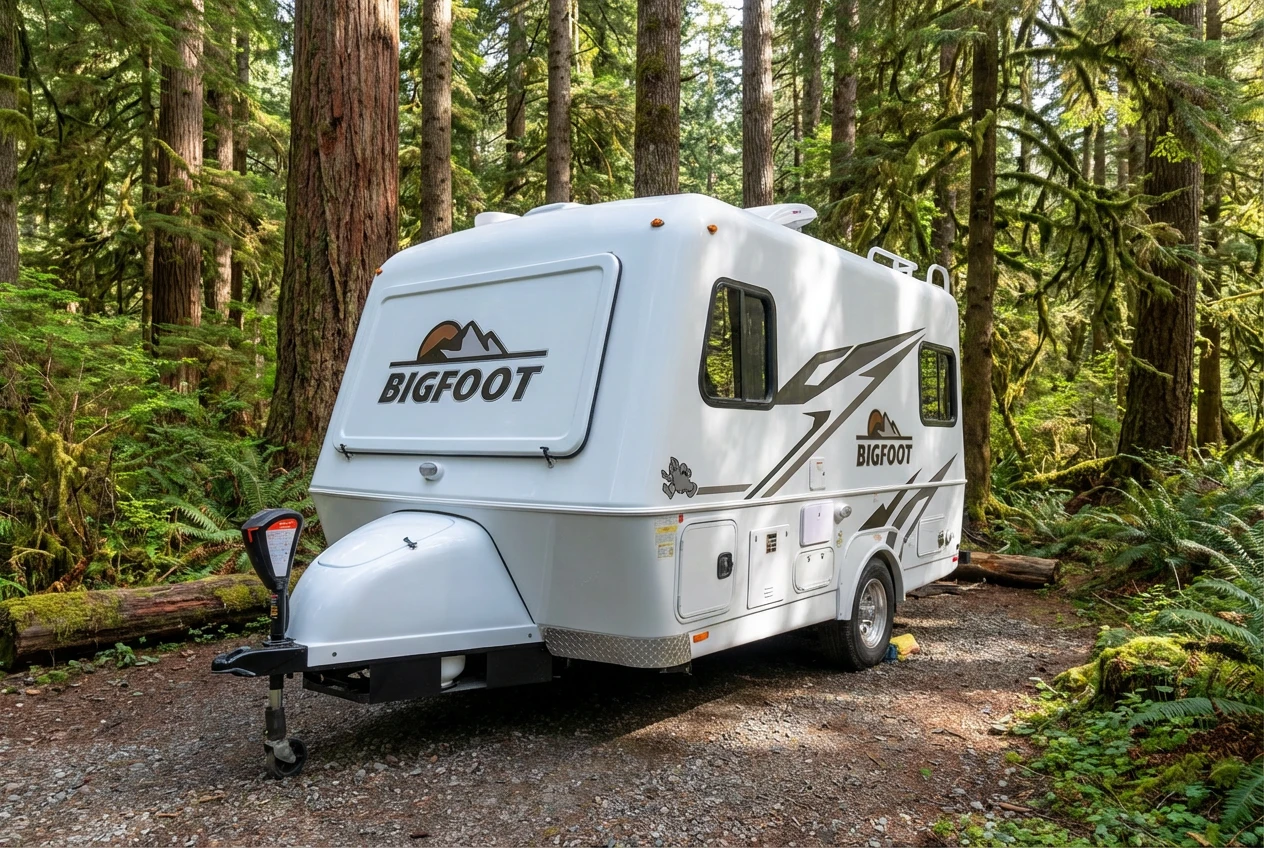

The B17.5FB is a compact yet incredibly well-insulated travel trailer, perfect for couples who want to explore off the beaten path without sacrificing comfort.

Find a Dealer

See the layout

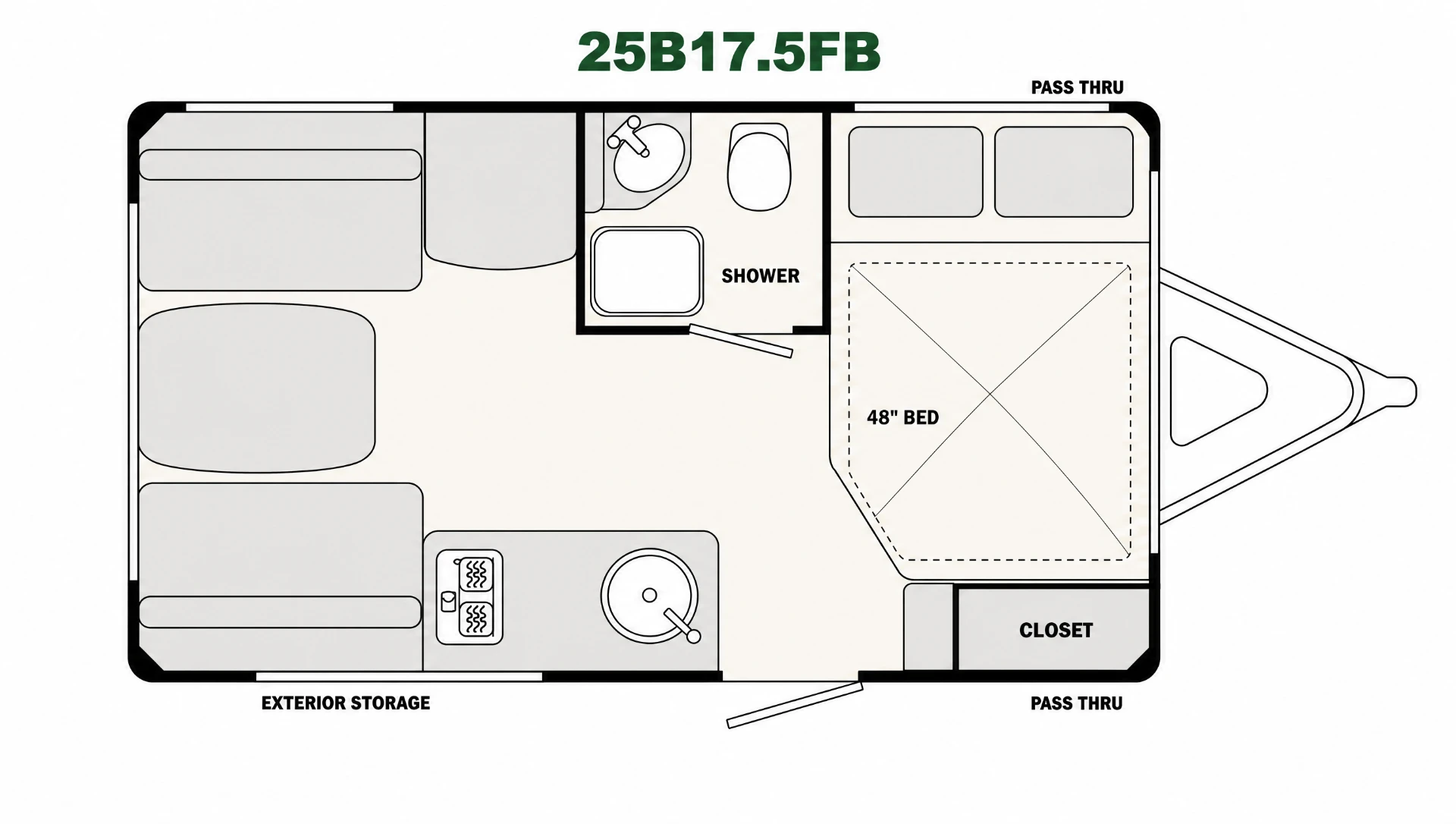

02Floor Plan

The 25B17.5FB Layout

Click to enlarge

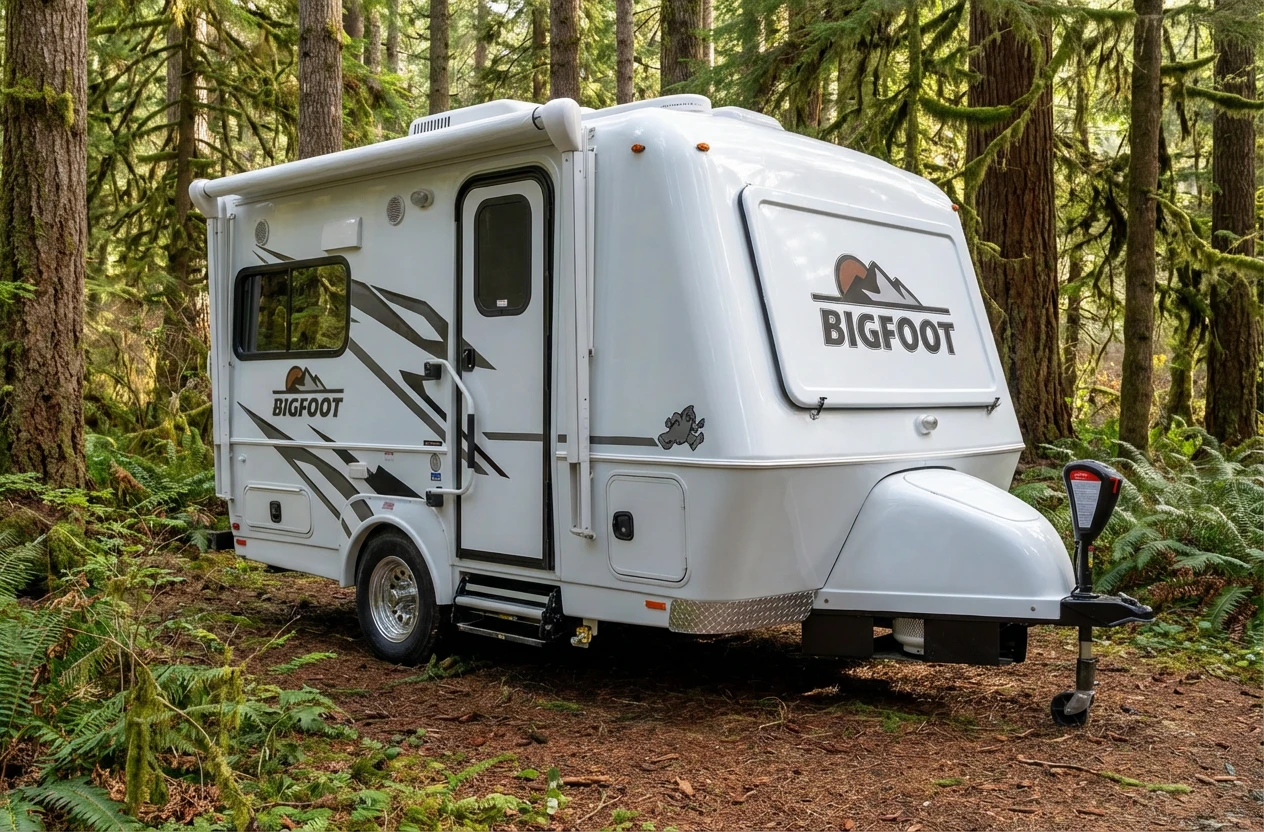

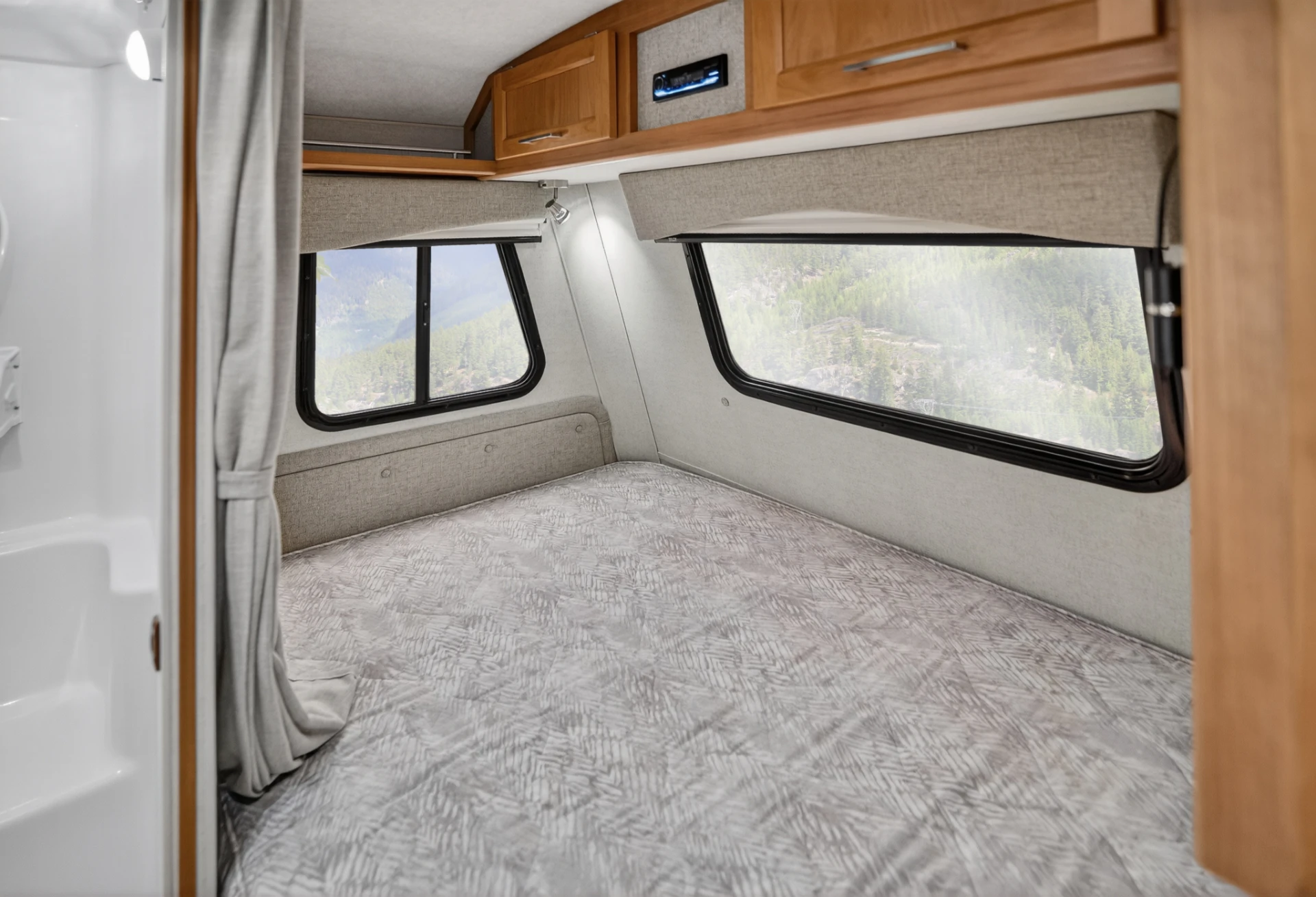

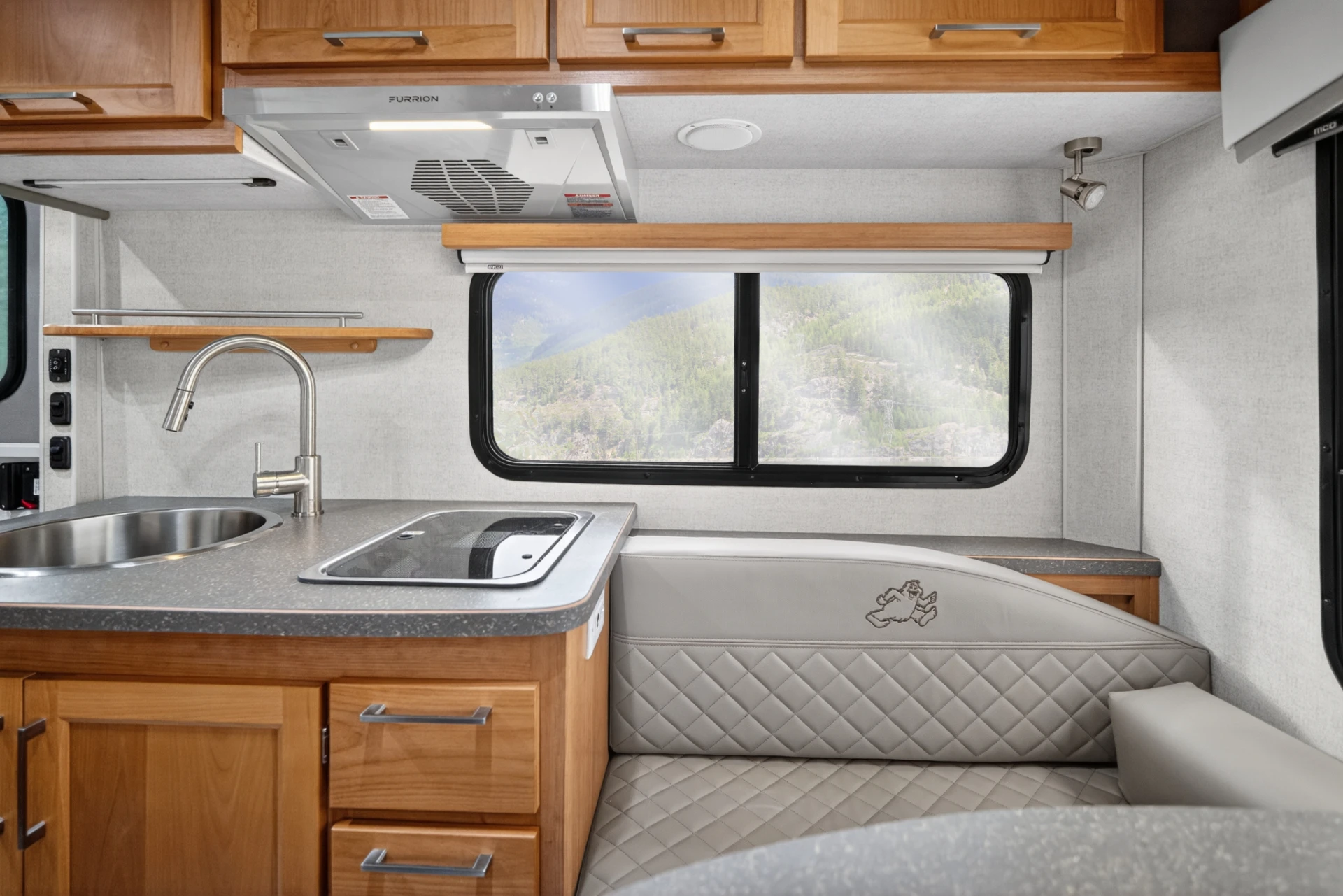

03Photo Gallery

Experience the Details

A closer look at the B17.5 25B17.5FB.

04Specs & Equipment

Detailed specifications for 25B17.5FB.

Overall Length17'-5" (5.31 m) (Does not include optional Front Cargo Box)

Overall Width8'-0" (2.44 m)

Overall Height8'-8" (2.64 m) (To top of the refrigerator vent)

Interior Height6'-4" (1.93 m)

Base Dry Weight3,360 lb (1,525 kg)

Hitch Weight315 lb (143 kg)

Axle Rating1×4,400 lb (1×1,996 kg)

GVWR4,300 lb (1,950 kg)

TiresST225/75R15

Fresh Water30 gal (115 L)

Grey Water21 gal (83 L)

Black Water21 gal (83 L)

LPG Capacity2×30 lb (2×18 L)

Water Heater6 gal (23 L)

Furnace20,000 BTU

Fridge7 cu ft (198 L)

Standard equipment included on every 25B17.5FB — built in at the factory, no upgrades required.

Exterior

Lightweight Two Piece Fiberglass Exterior Shell
1 1/2” High Density EPS Insulation (R8)
Radius Corner Solar Reflective Safety Glass Thermal Pane Windows with Screens
Folding Assist Handle
Aluminum Covered Rear Bumper
E-Z Lube Wide Track Axle with Self Adjusting Electric Brakes
Spare Tire and Carrier
Aluminum Wheels
Continental Tire Kit
Break Away Switch
Stabilizer Jacks (front & rear)
Power Tongue Jack
LED Exterior Clearance and Directional Lighting
Molded Fiberglass Rock Guard with Gas Struts

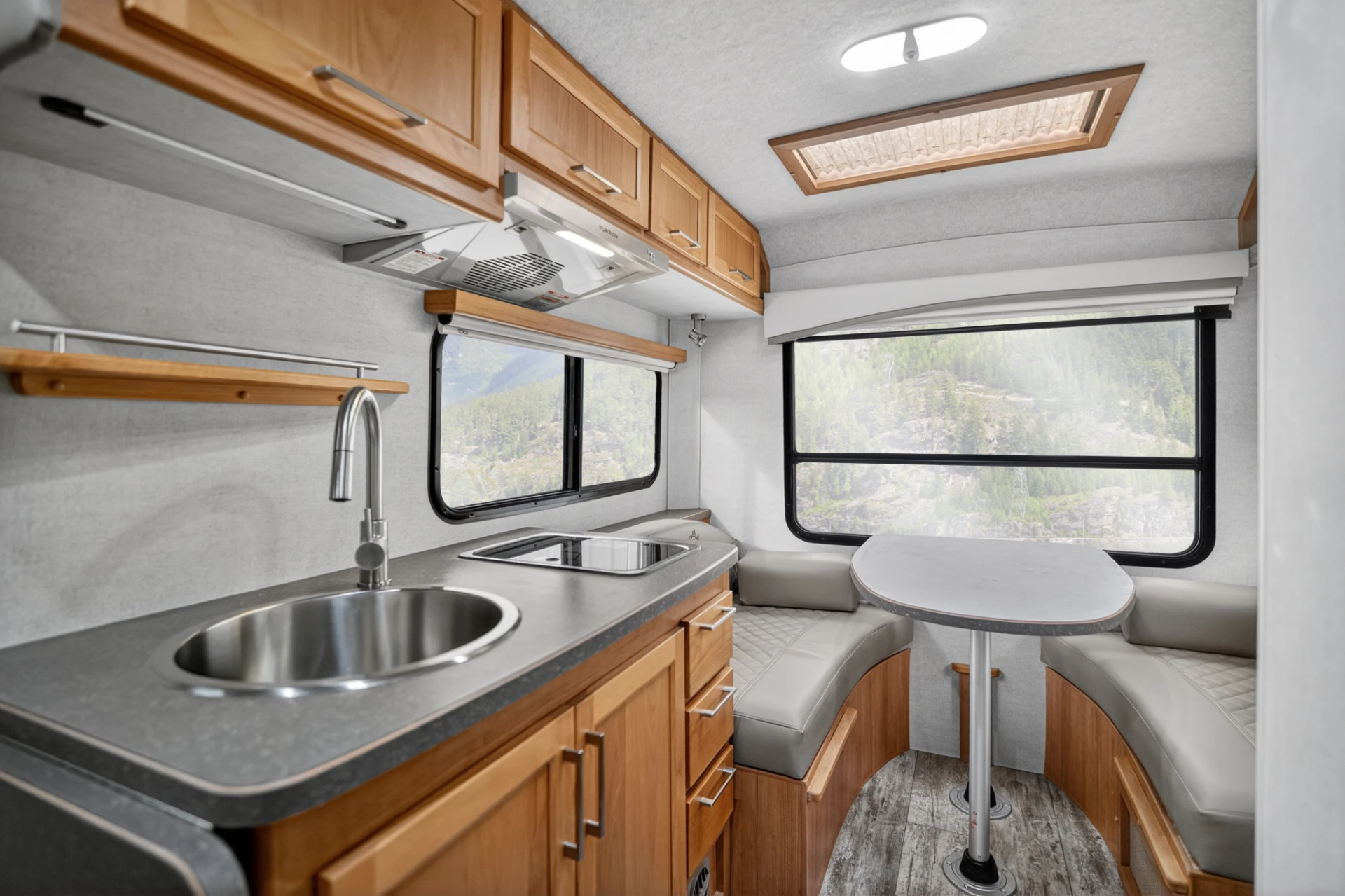

Skylight in Living Room with Pleated Shade
Ladder
Solar System - 300 Watt solar panel with charge controller
Electric 10' Awning
Molded Fibreglass Propane Bottle Cover
Dual 30 lb Propane Tanks with Auto Changeover & OPD Valves

Interior

Washable Vinyl Wall Panelling
Marine Quality Fabric Headliner

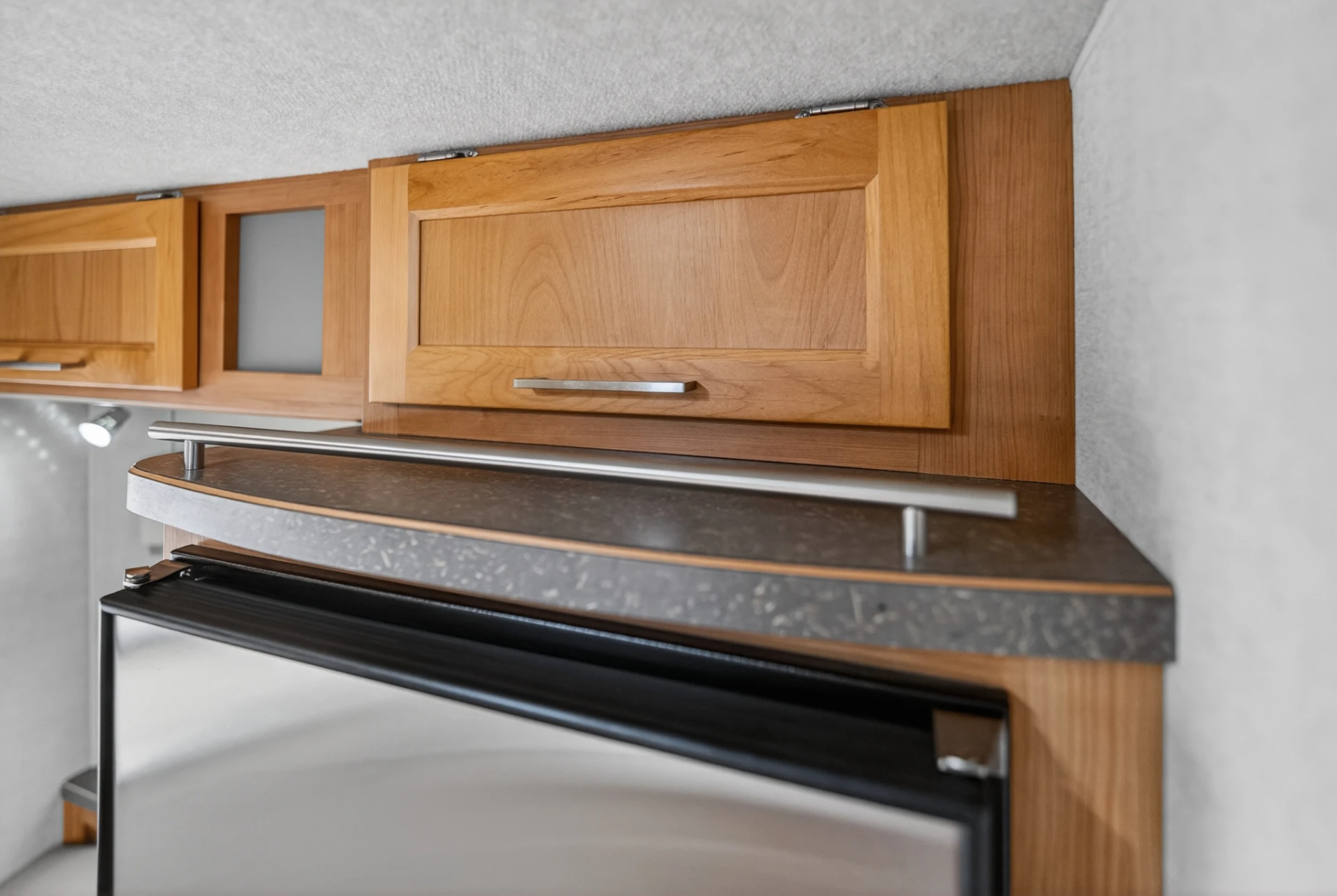

Face Framed Double Screwed Cabinets

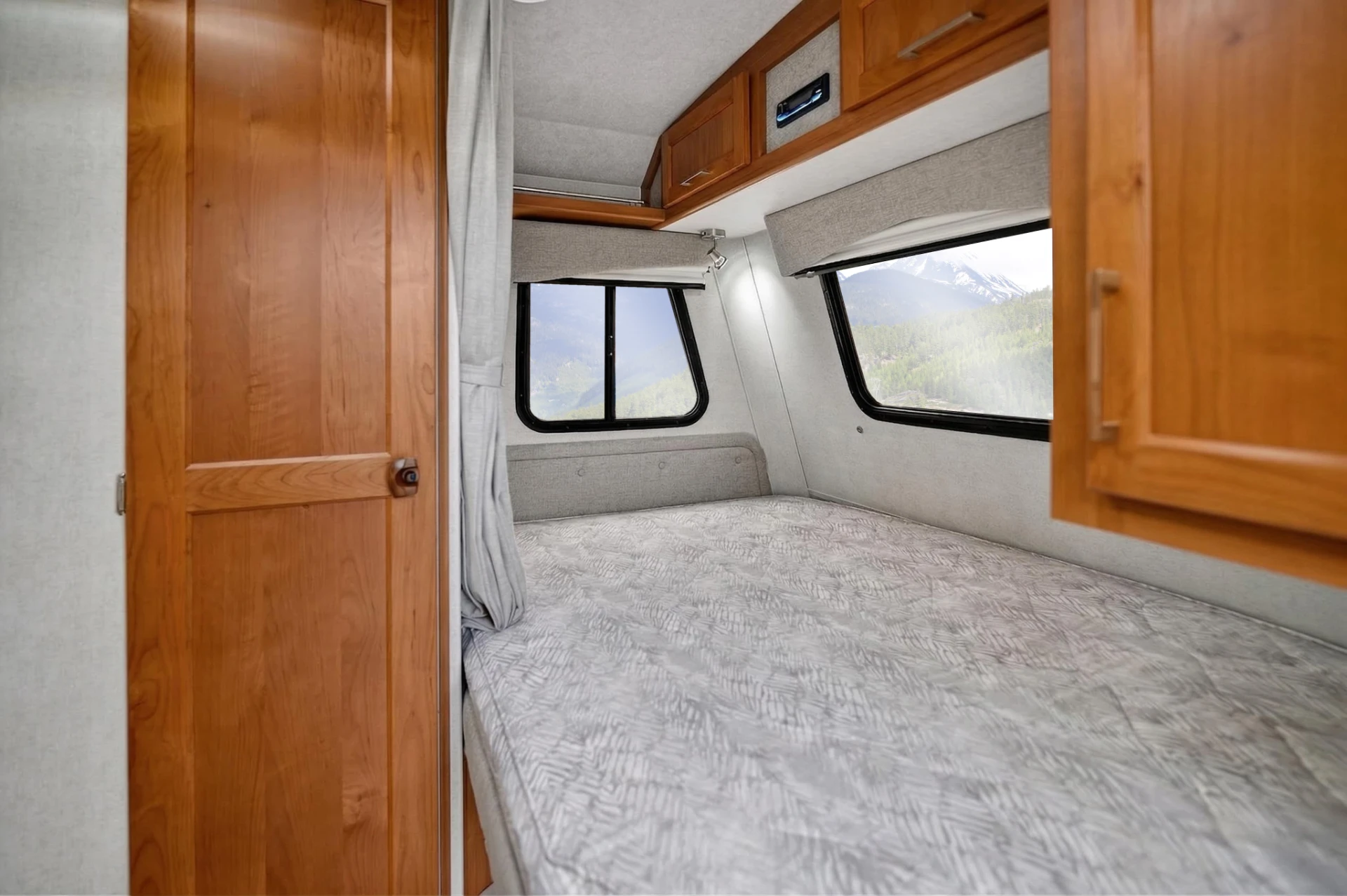

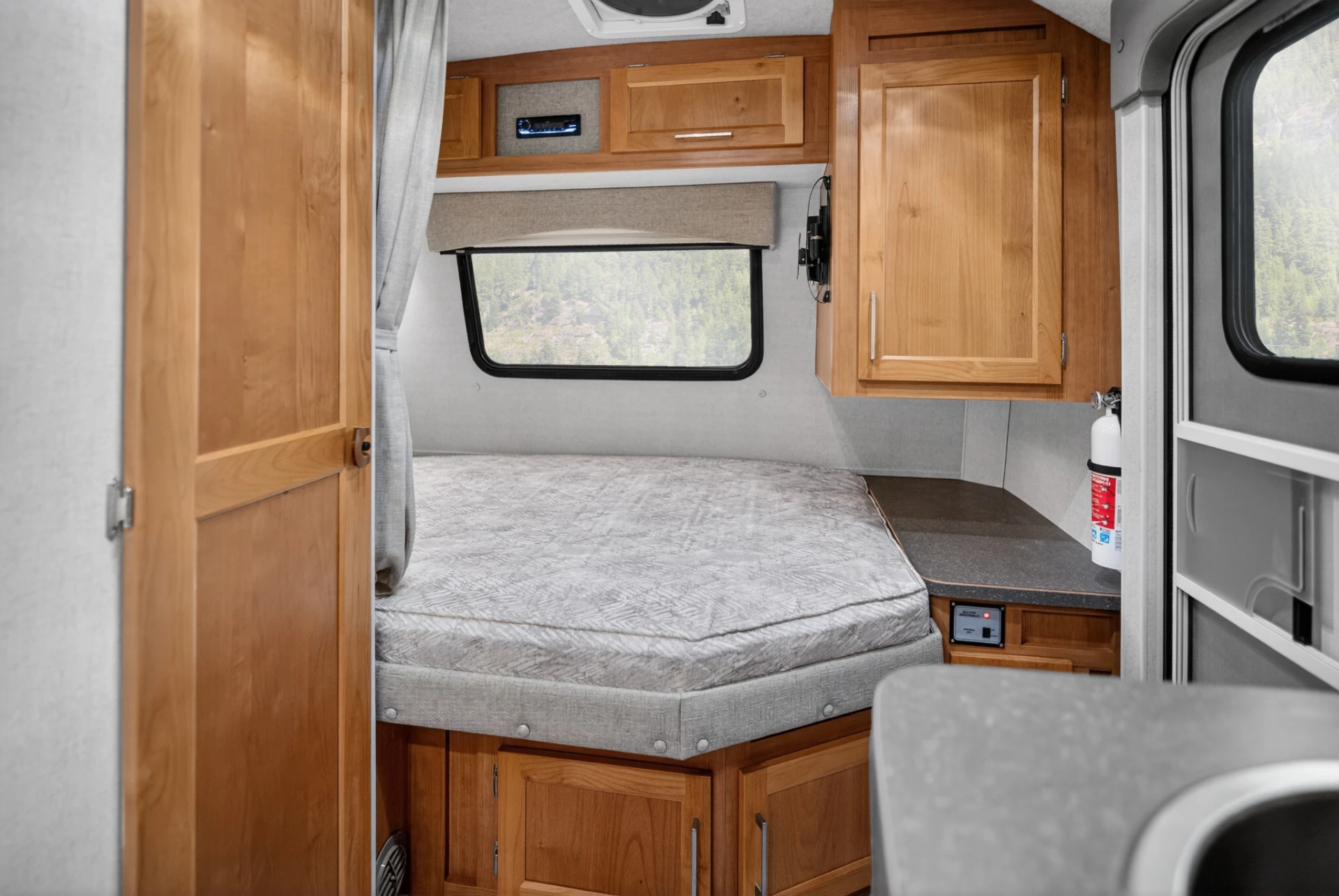

Spring Filled Foam Mattress
Roller Shades
LED Lighting

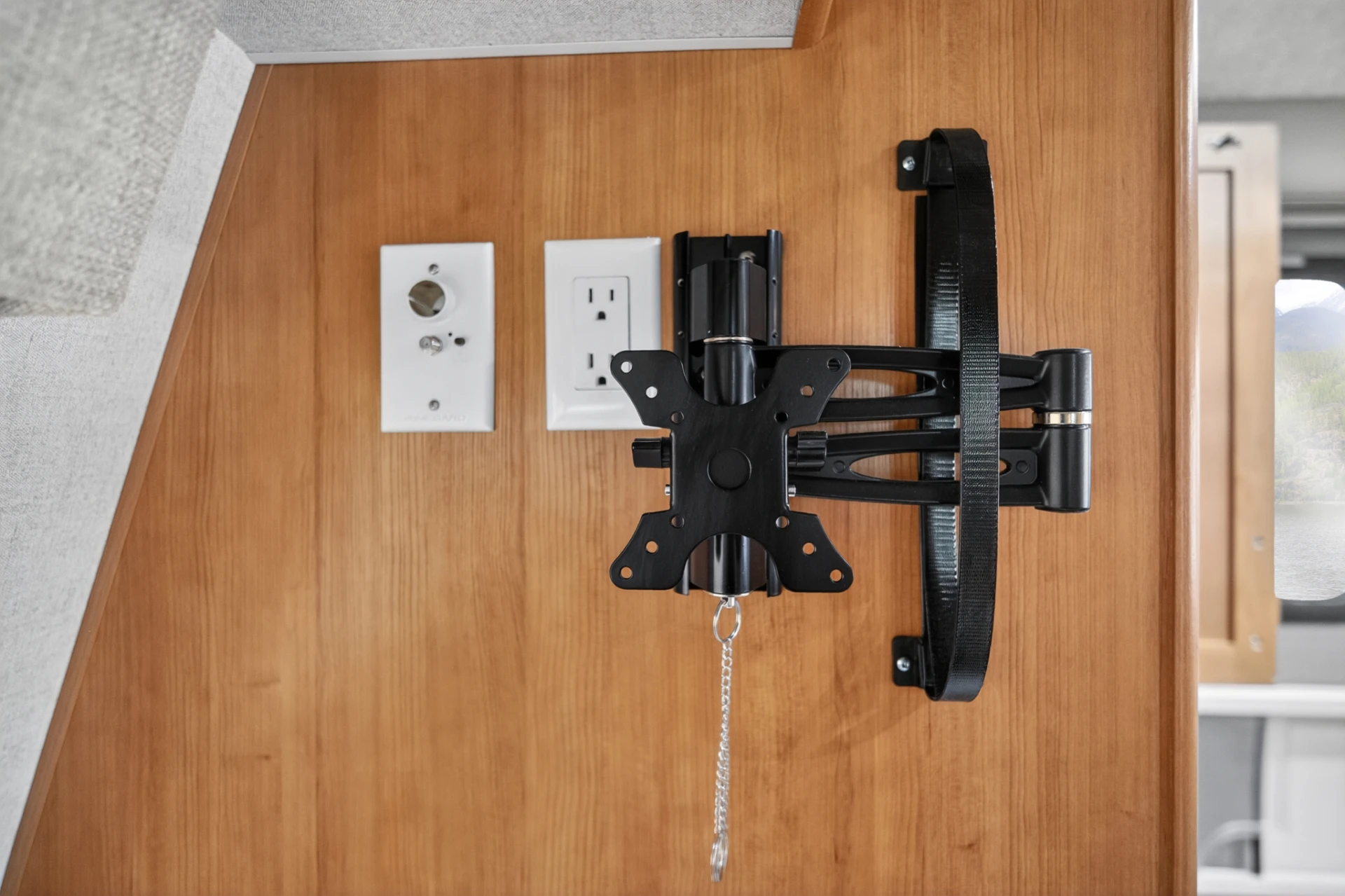

LCD 12 Volt TV Prep Package

Electrical

Electrical Battery Disconnect
Electrical 120 VAC / 30 Amp Service / 45 Amp DC Power Converter with Battery Charger
Pre-wired for Roof Air Conditioner
Power Fan in Bathroom
Maxxair Fan (choice of location)
Battery Ready
Porch, Hitch and Roadside Lights
Detachable 30 Amp Power Cord

Safety

Smoke, Carbon Monoxide and Propane Detectors
Fire Extinguisher
Emergency Egress Window

Kitchen & Appliances

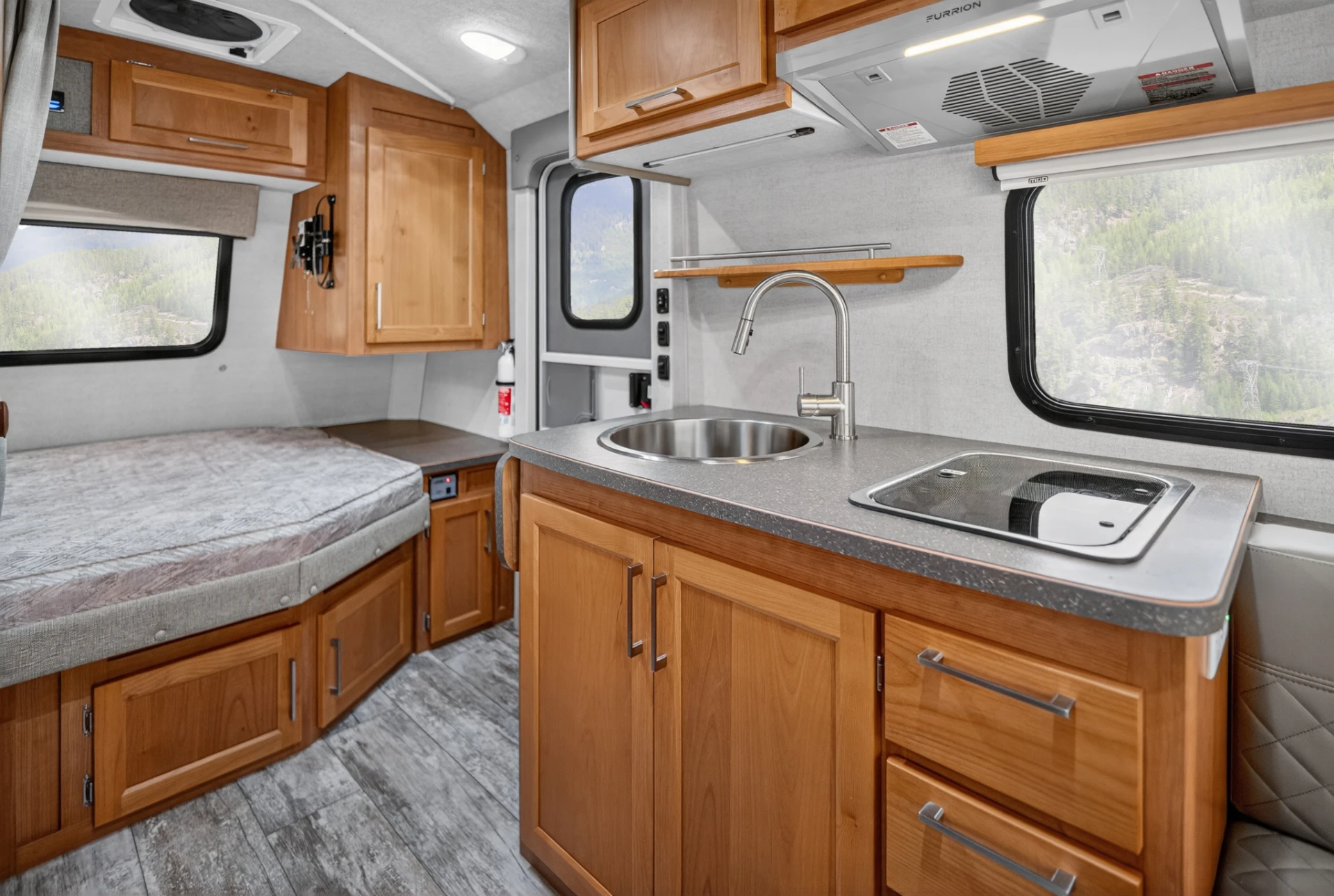

Cooktop 2 Burner with Glass Cover

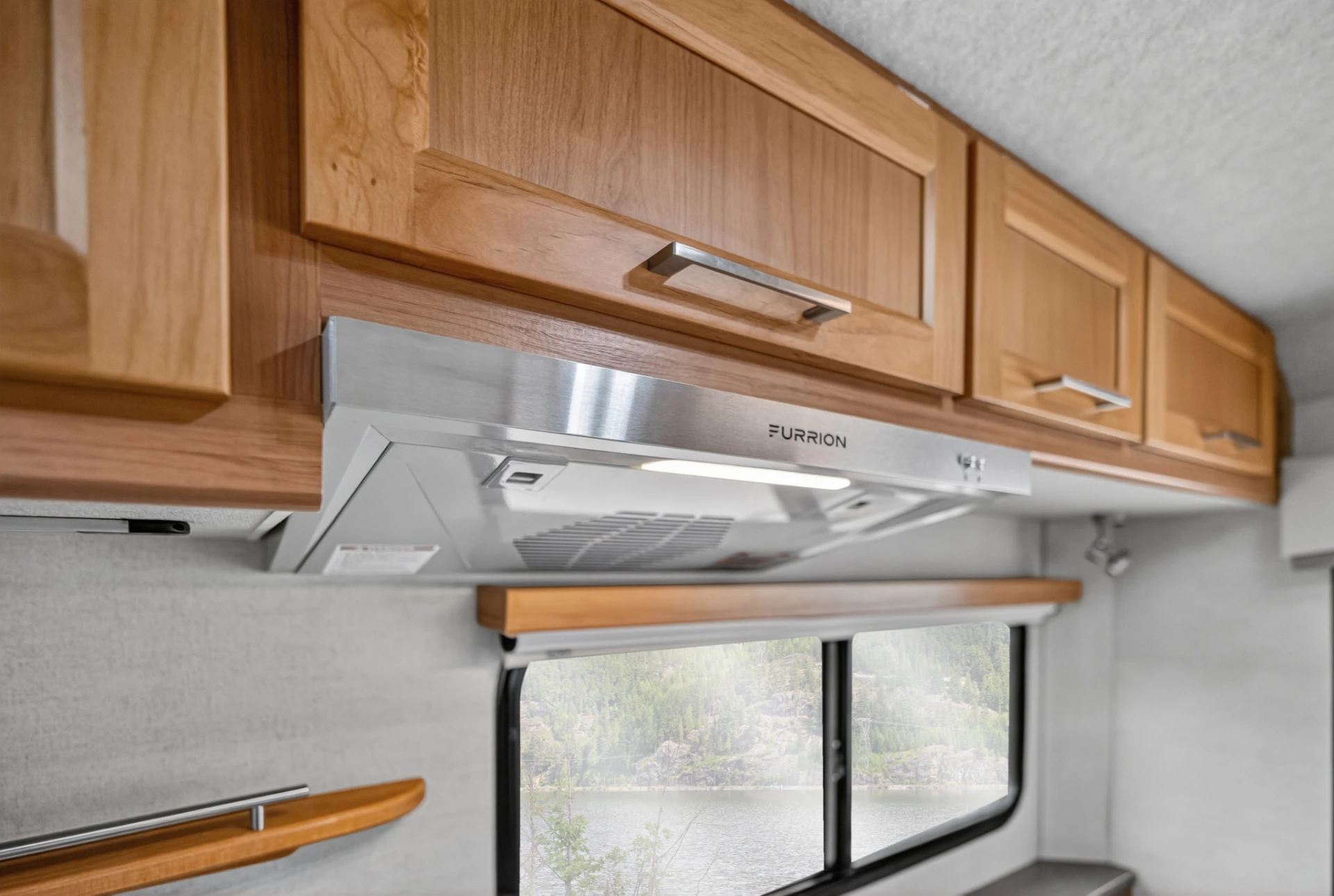

12 Volt Range Hood
20,000 BTU Furnace
Stereo AM/FM CD Player (Satellite Ready)
Stainless Steel Microwave Oven (7 cu ft)
Monitor Panel (See Level)

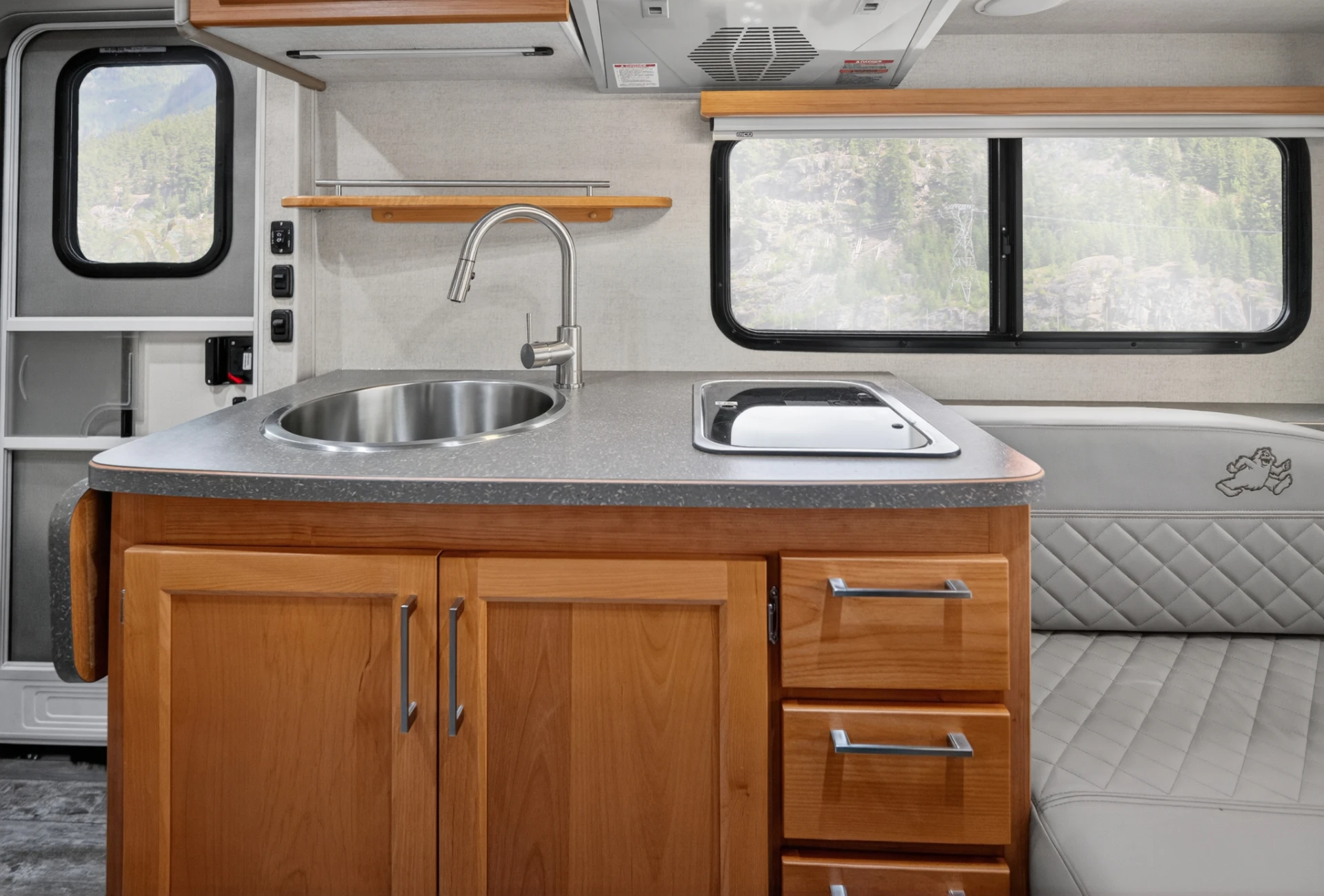

Round Stainless Steel Sink with Hi-Rise Faucet
Cutting Board

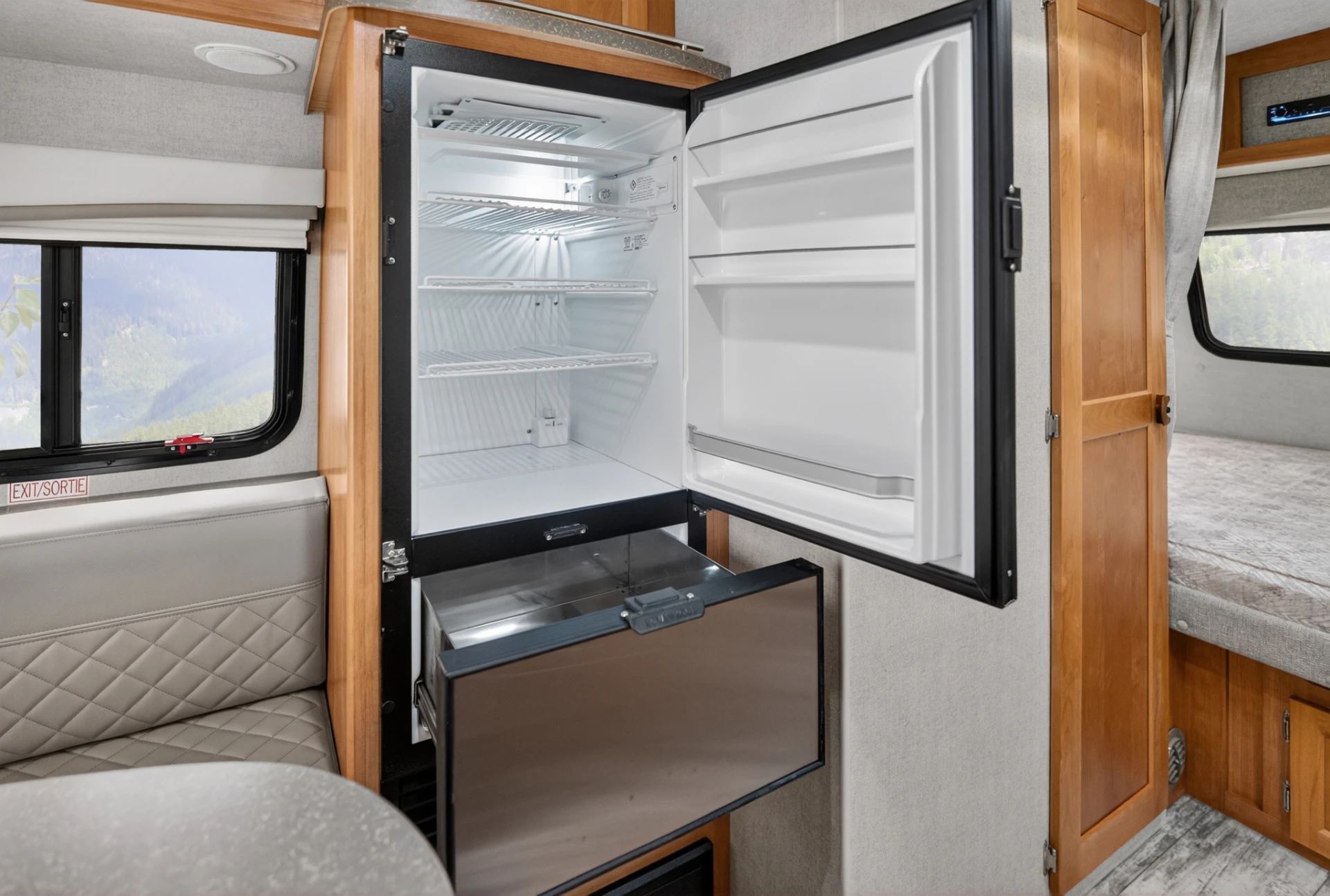

Stainless Steel Lightweight Refrigerator

Plumbing

City Water Hookup
Porcelain Toilet
12 Volt Demand Water Pump System

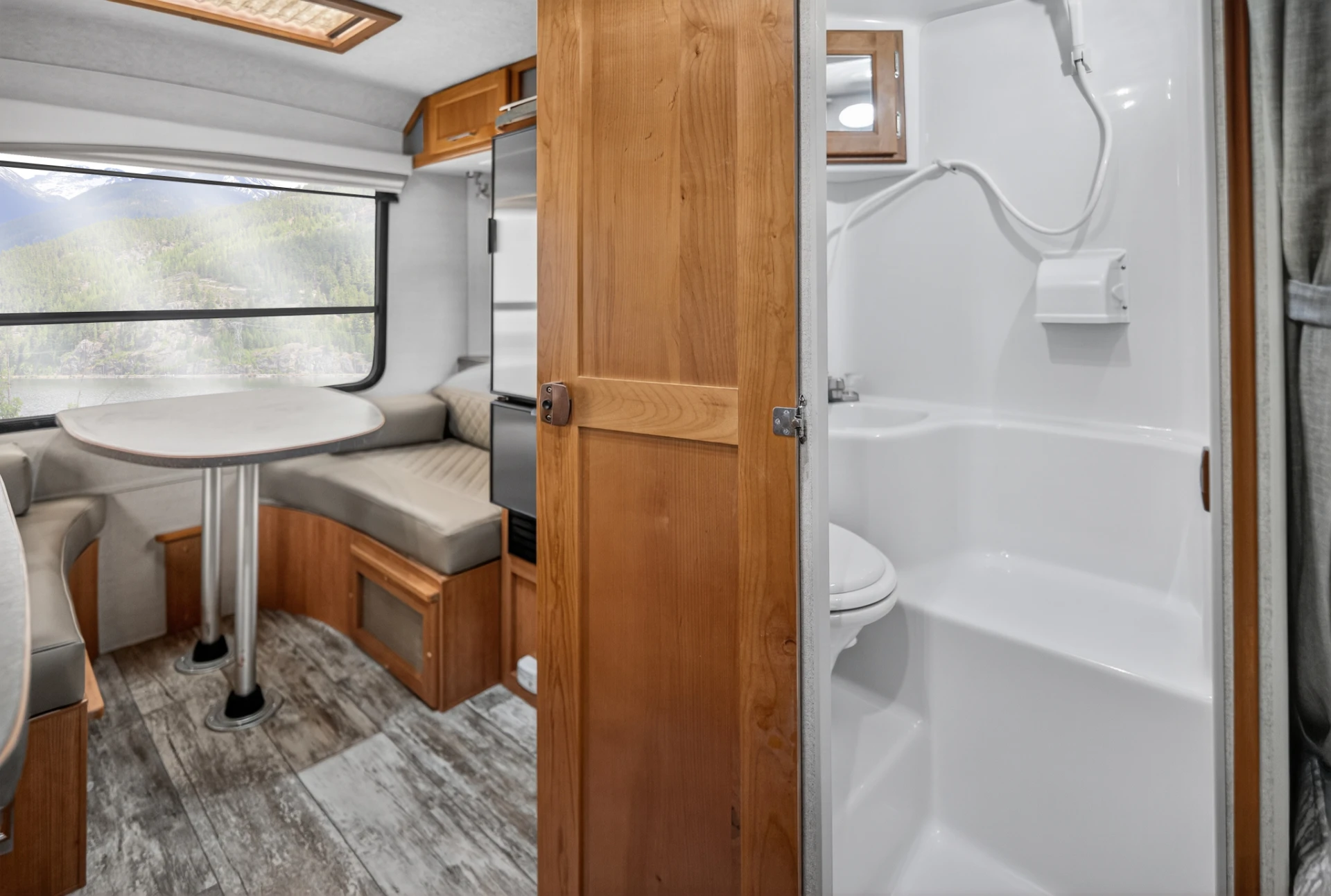

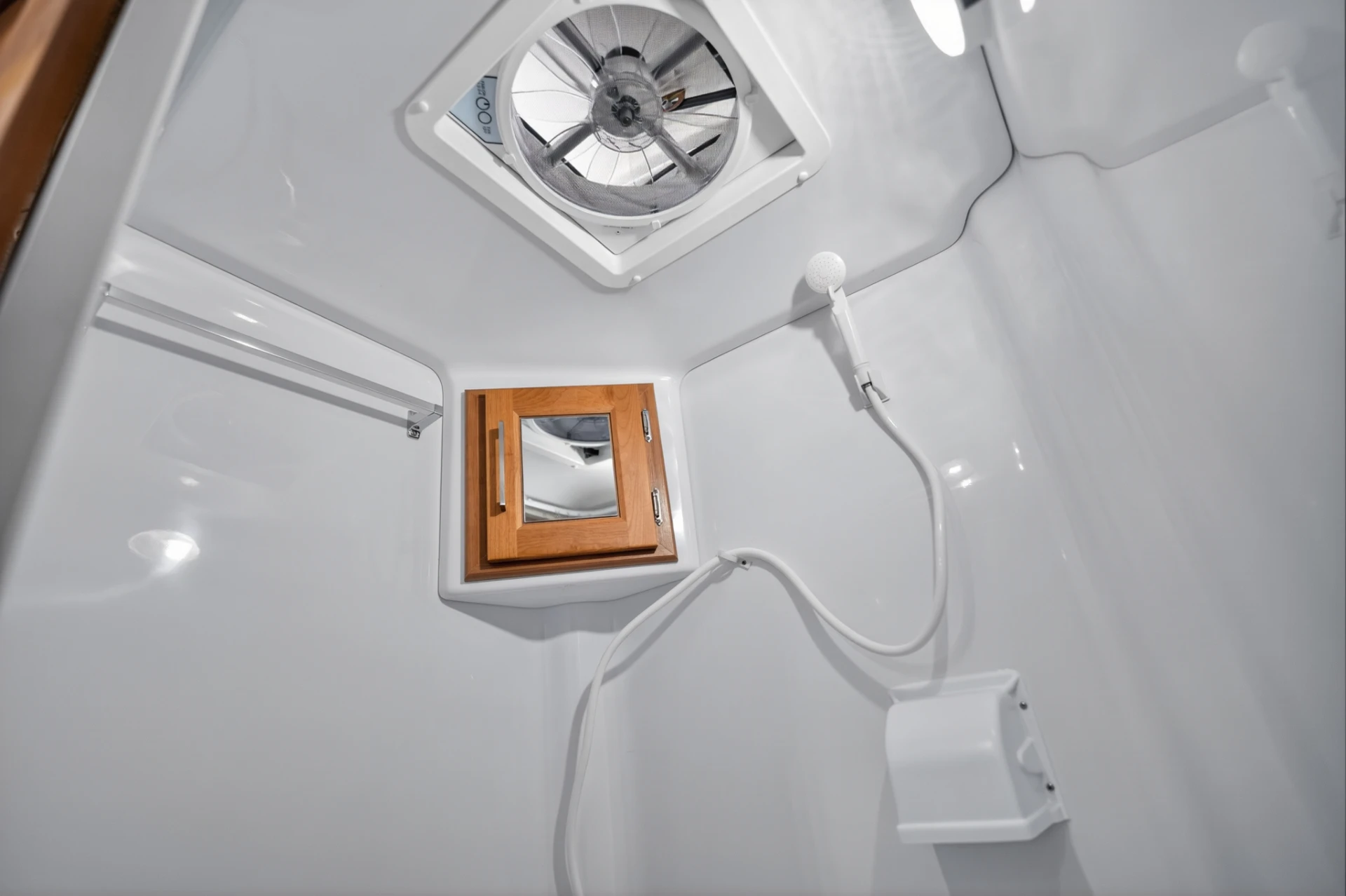

Molded Fiberglass Shower Enclosure
Exterior Shower with Winterizing Valves
Water Heater Bypass System & RV Antifreeze Pickup System for Winterization
Heated and Enclosed Holding Tanks
Black Tank Rinse System
LP / 110V Hot Water Heater

Options (sold separately) available for the 25B17.5FB — tailor your build through your dealer.

Air Conditioner - MACH 10 NDQ - 13,500 BTU
Air Conditioner - Truma Aventa Eco (must remove skylight in living room)
Winegard AIR 360 & LP 5G Antenna
Exterior Stereo Speakers
Maxxair Exhaust Fan (Bathroom)
Maxxair 2 Way Fan (Bedroom and/or Galley)
Fiberglass Front Cargo Box (Adds 2' to length of Trailer)
Generator Ready Package with Auto Transfer Switch
Generator - Cummins Onan 2.5kW Propane
LCD 12 Volt TV
Leather Decor Upgrade (Simulated)
Privacy Curtain
RV BBQ Hook Up
Receiver for 2" Bike Rack
Rear Roof Rack
Wireless Rear View Camera System
Truma Combi Comfort Plus (replaces hot water heater & furnace)
Truma Aquago (On Demand Water Heater)
EcoFlow Power System - includes 5kW Lithium Battery and 3.6kW Inverter with option of adding 2kW and 5kW Batteries, includes 400W solar panels
Two or Four Inch Lift
