01C9.5 Series
C9.5FS
Designed for long-box trucks, the C9.5 series provides more interior space and storage while maintaining the lightweight advantages of the 1500 series.

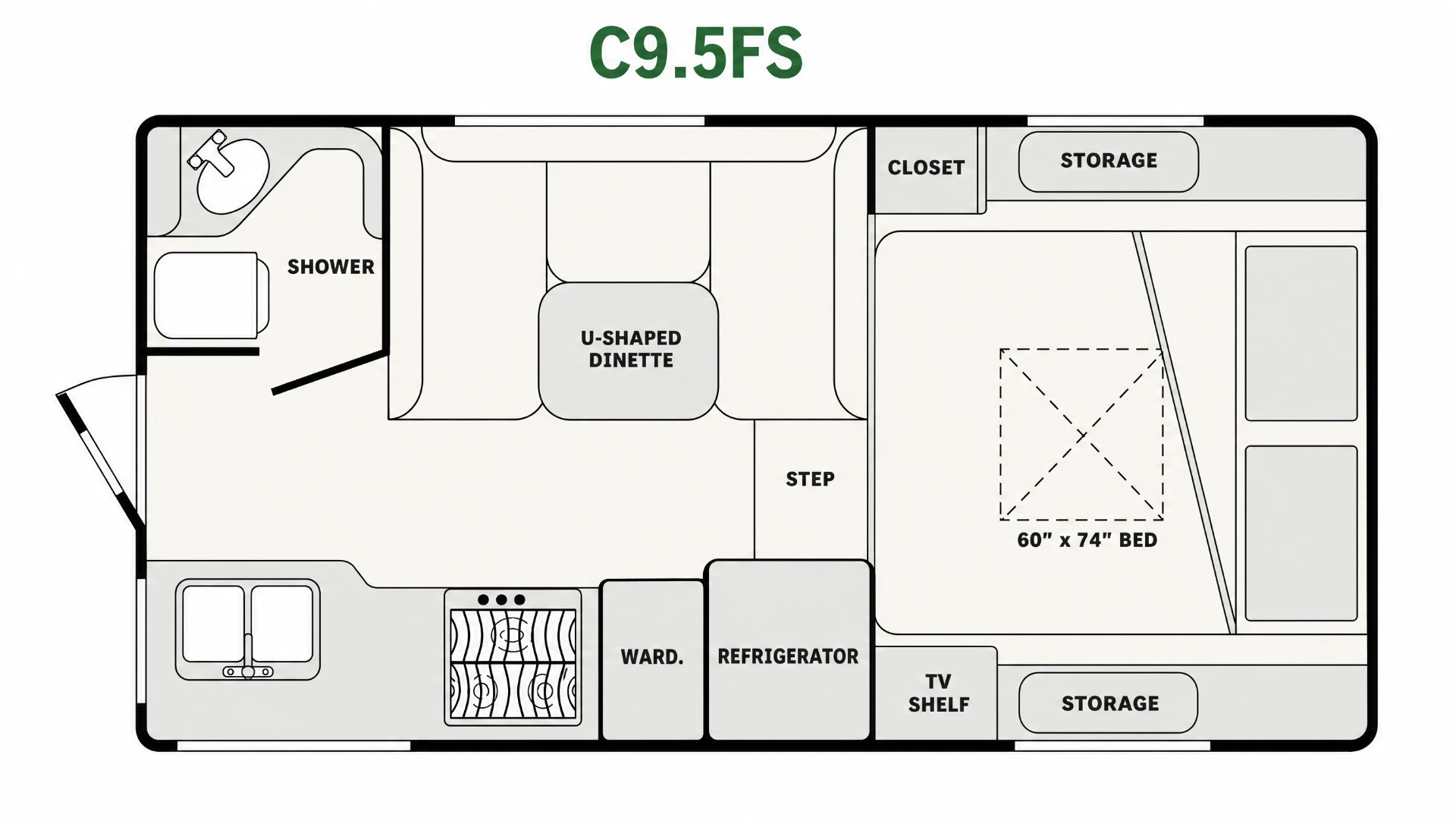

02Floor Plan
The C9.5FS Layout
Click to enlarge

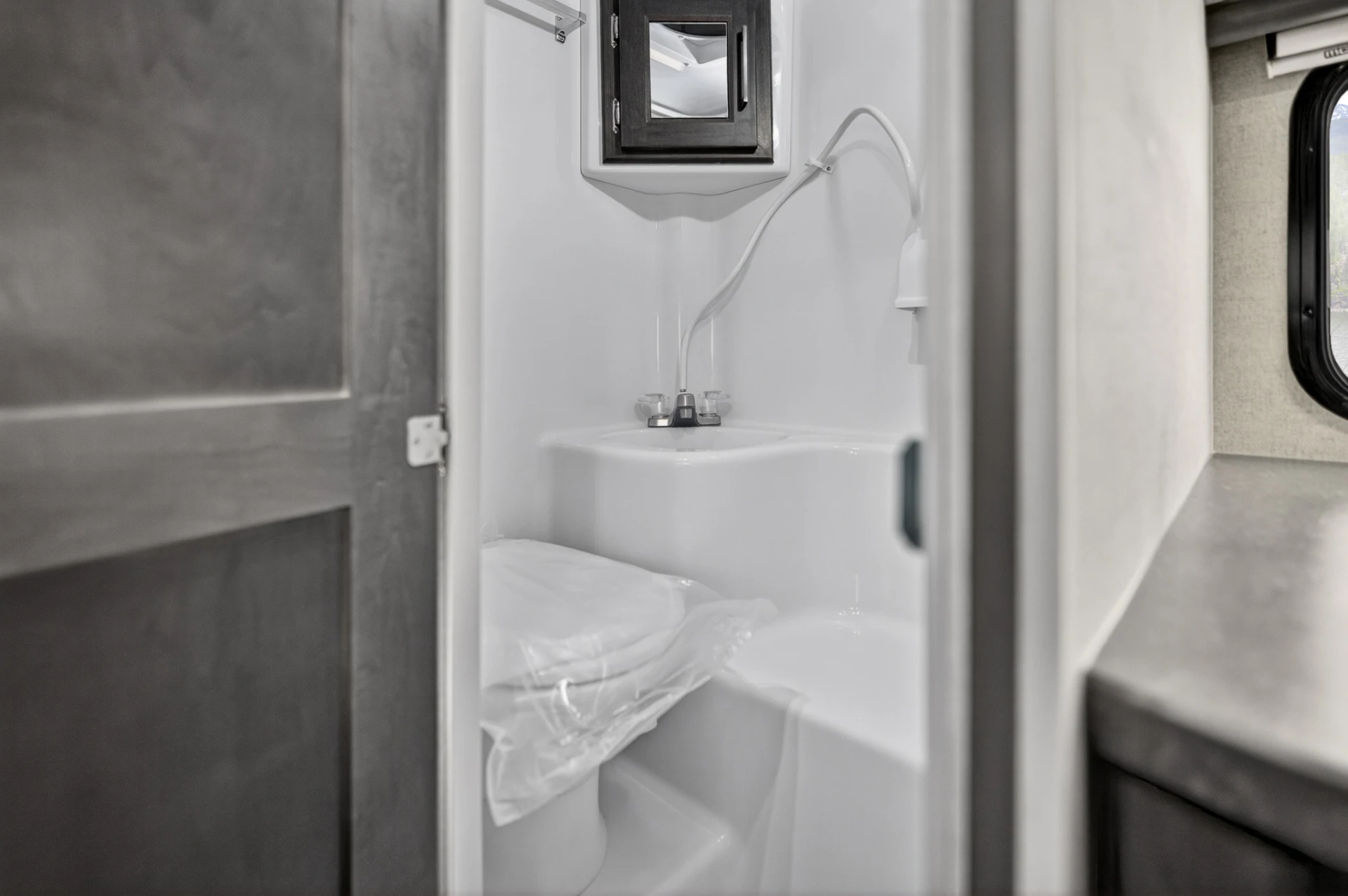

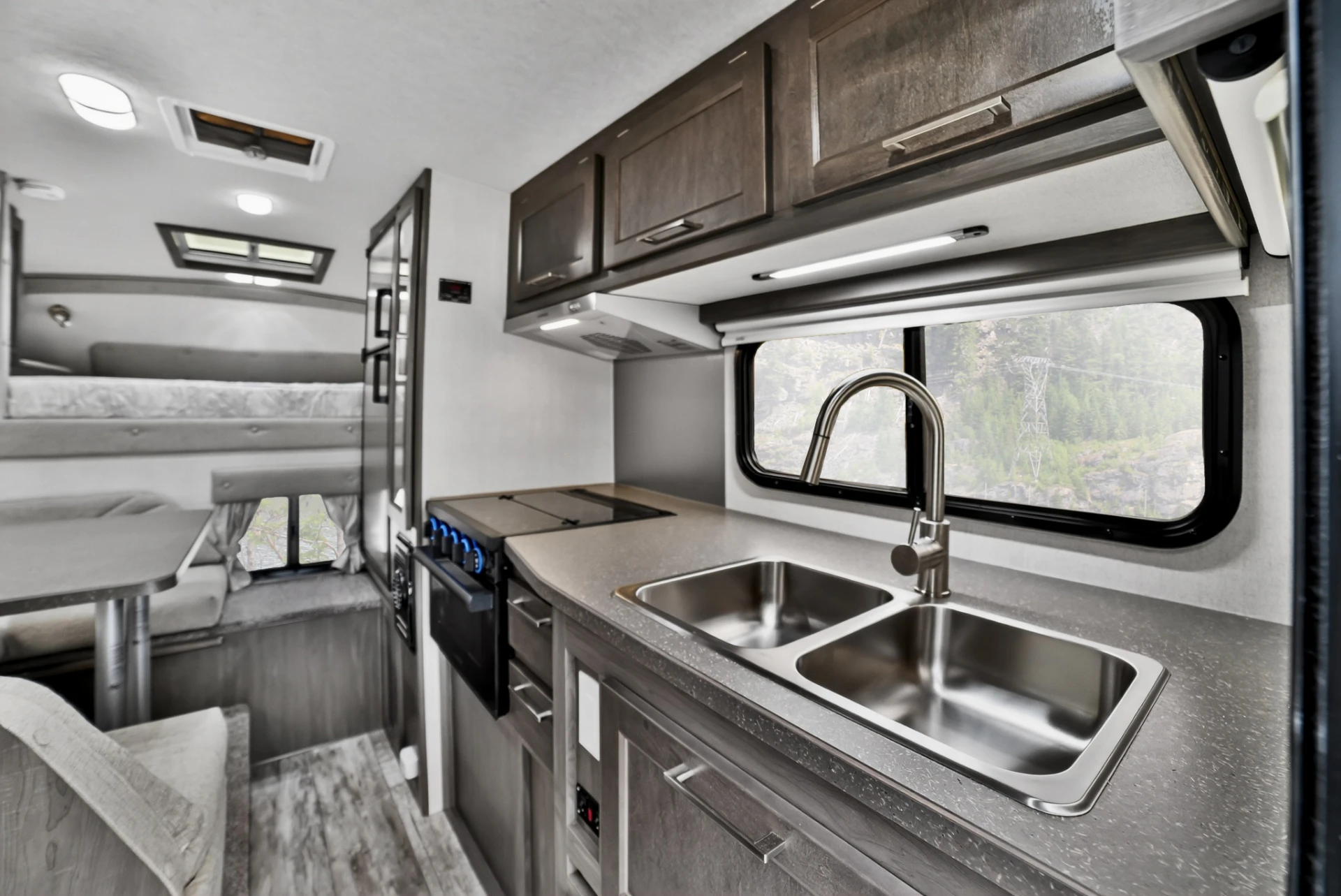

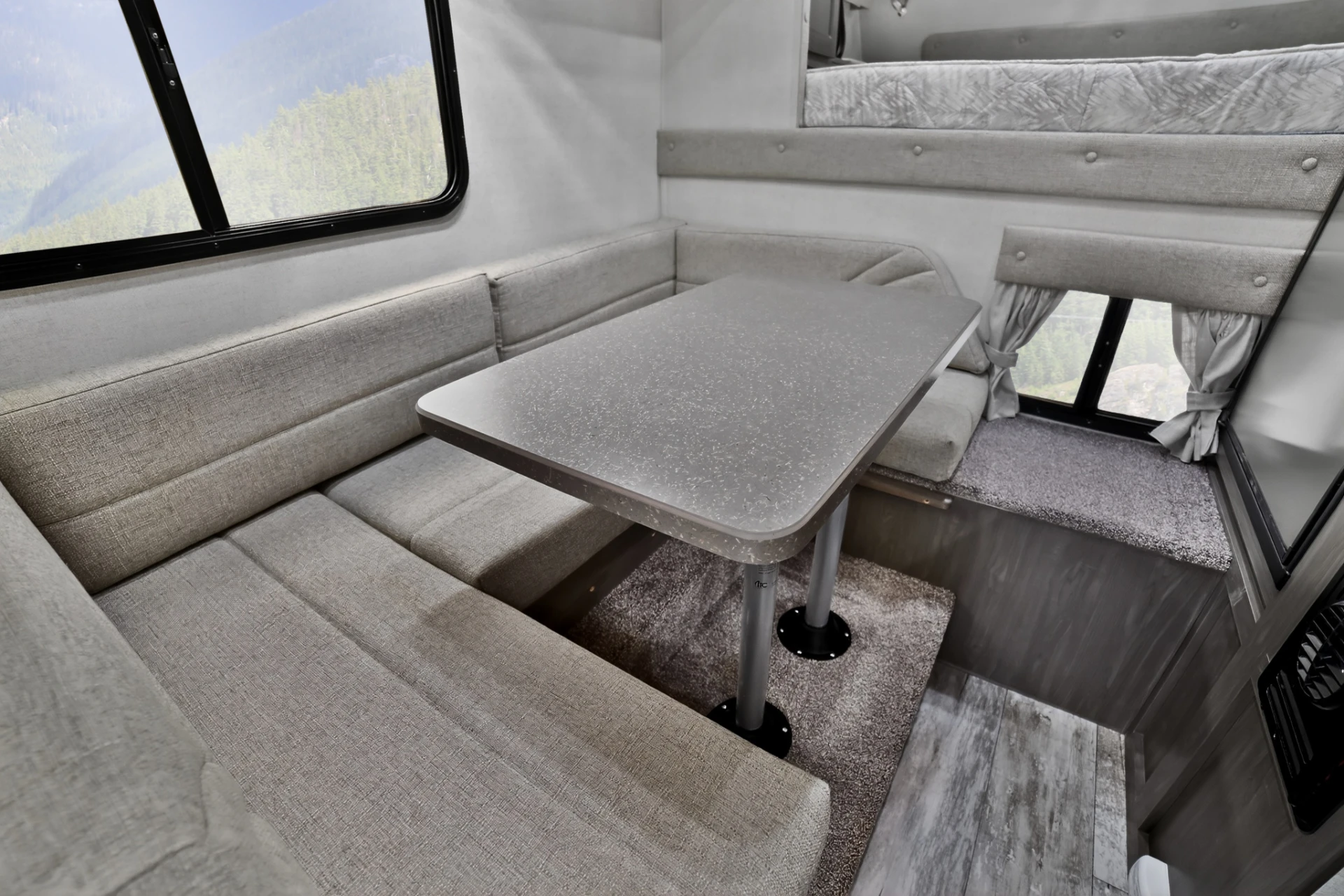

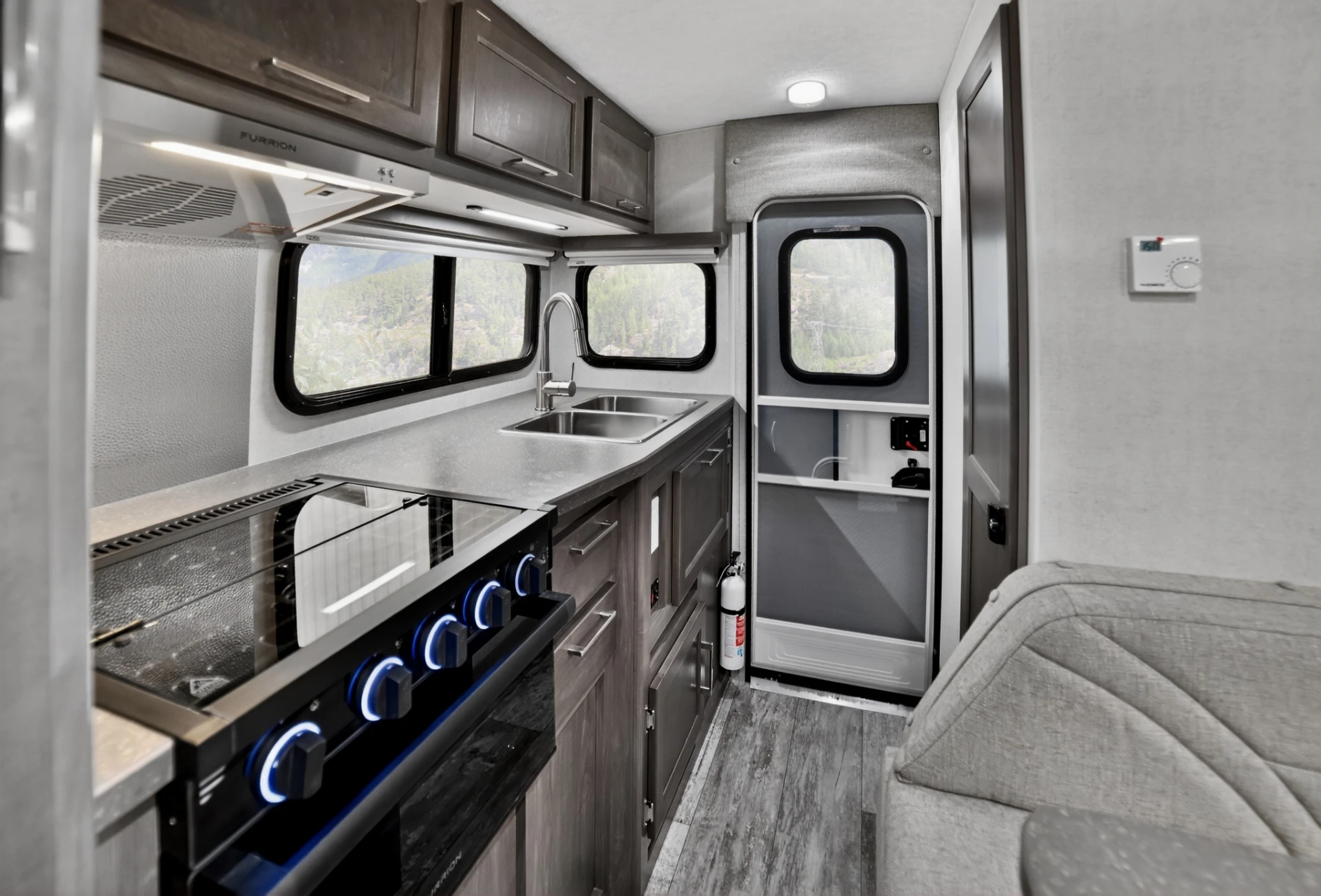

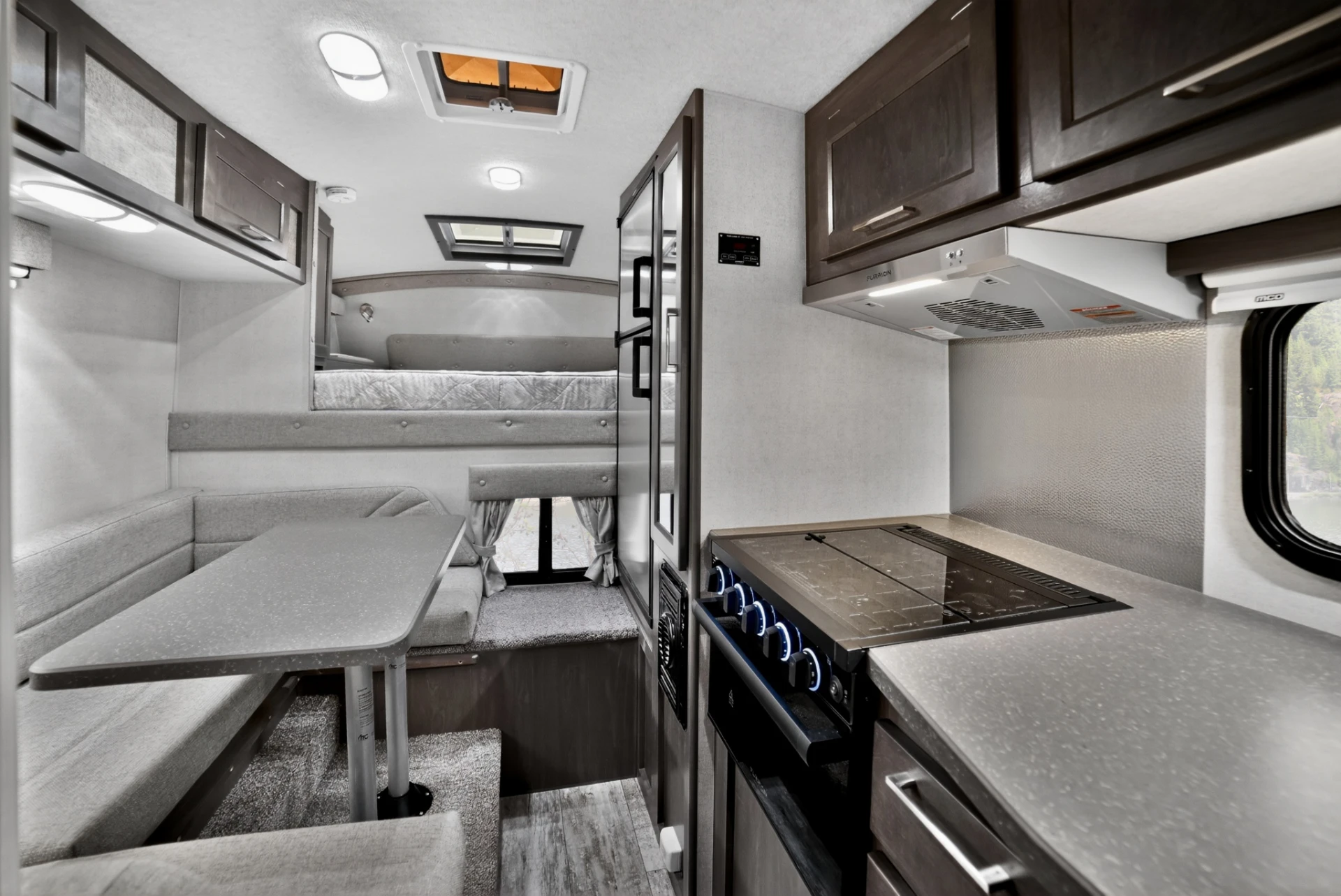

03Photo Gallery
Experience the Details

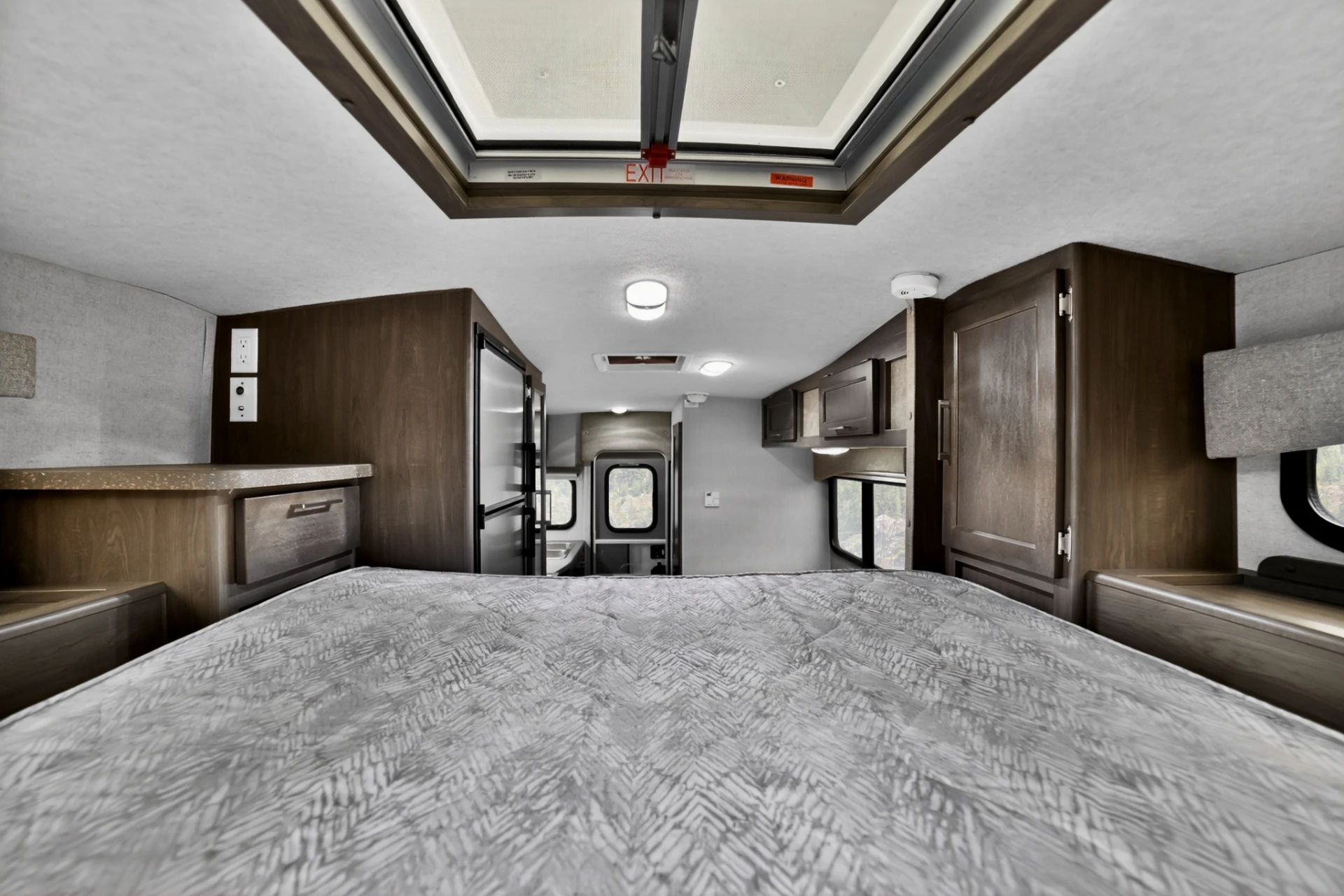

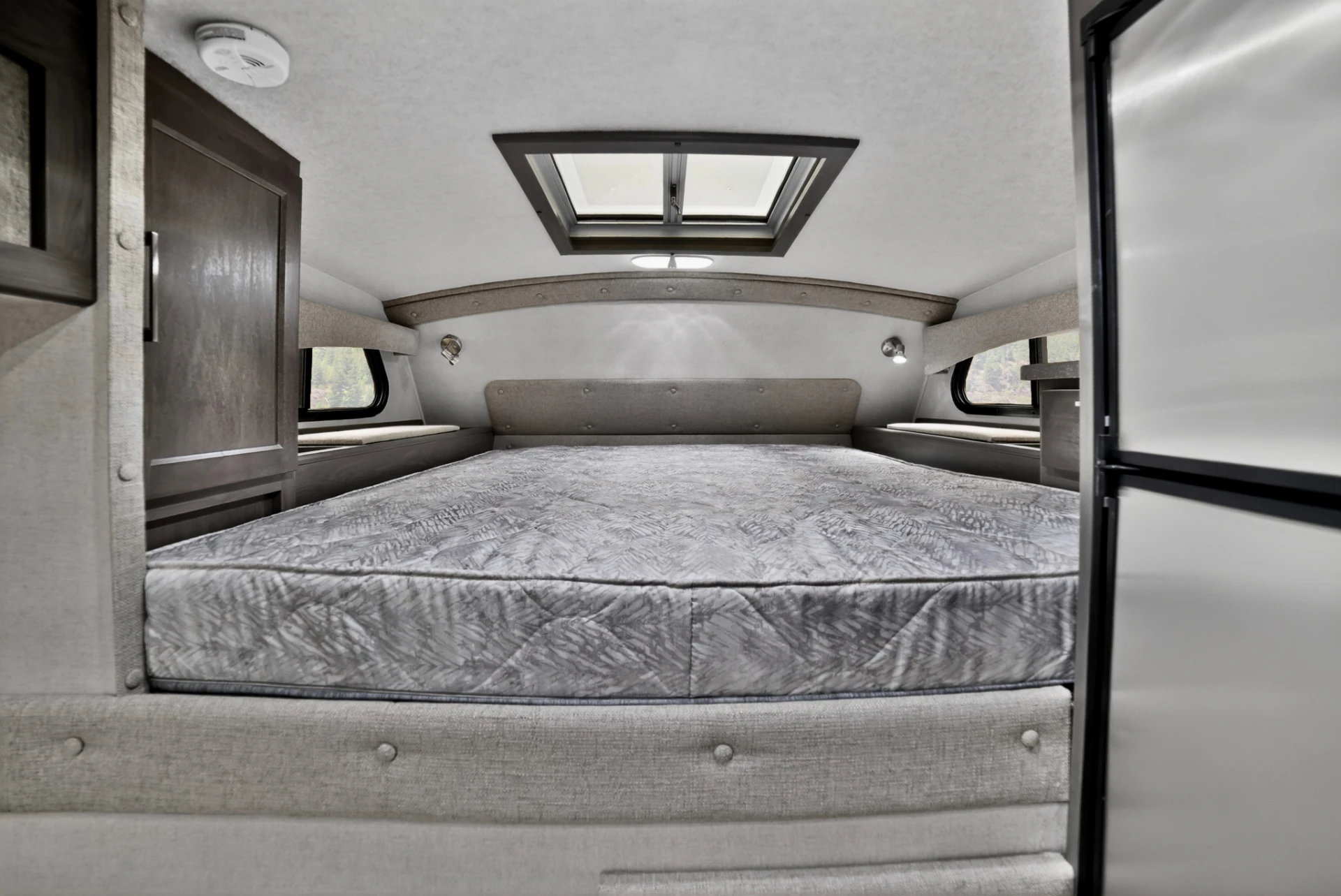

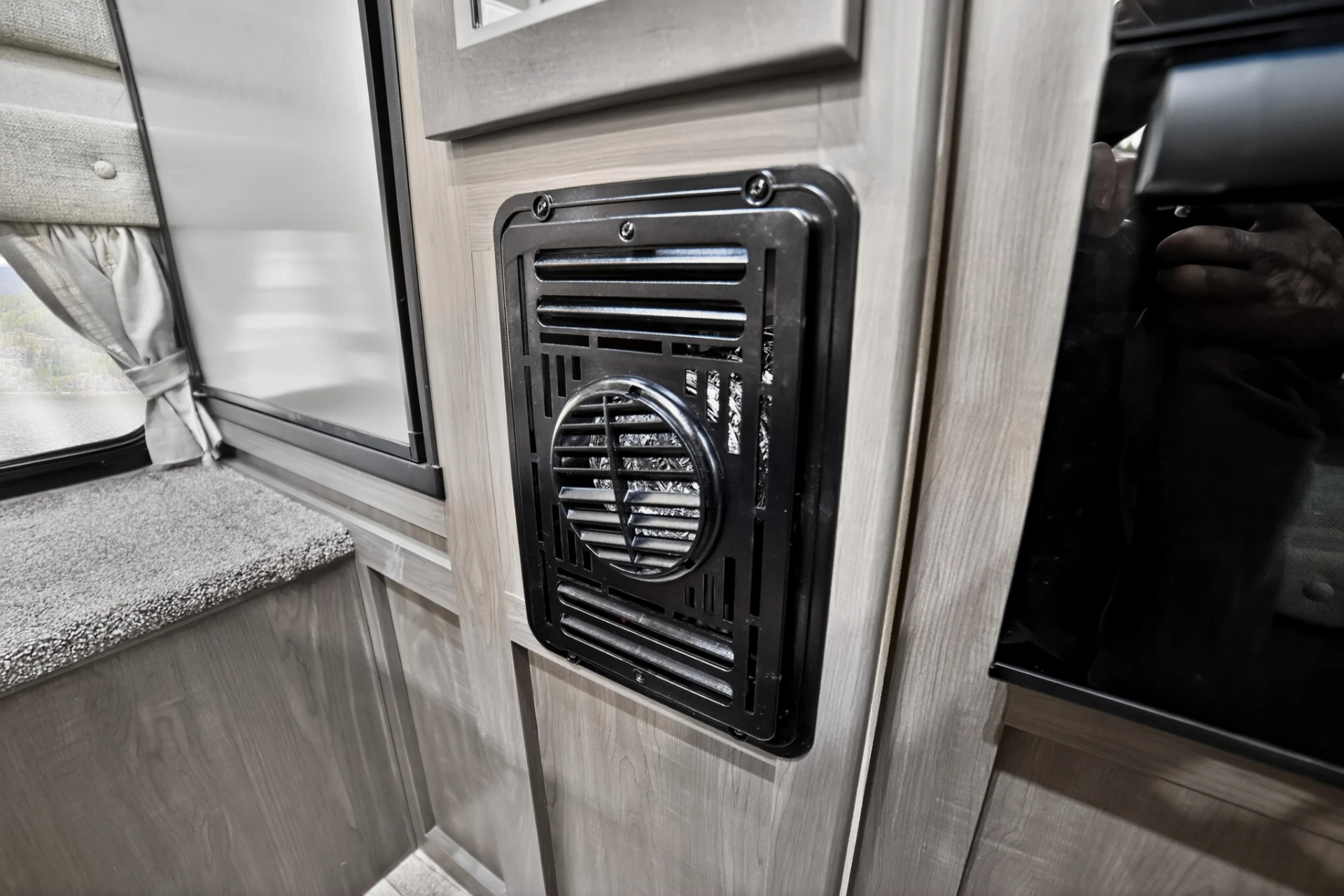

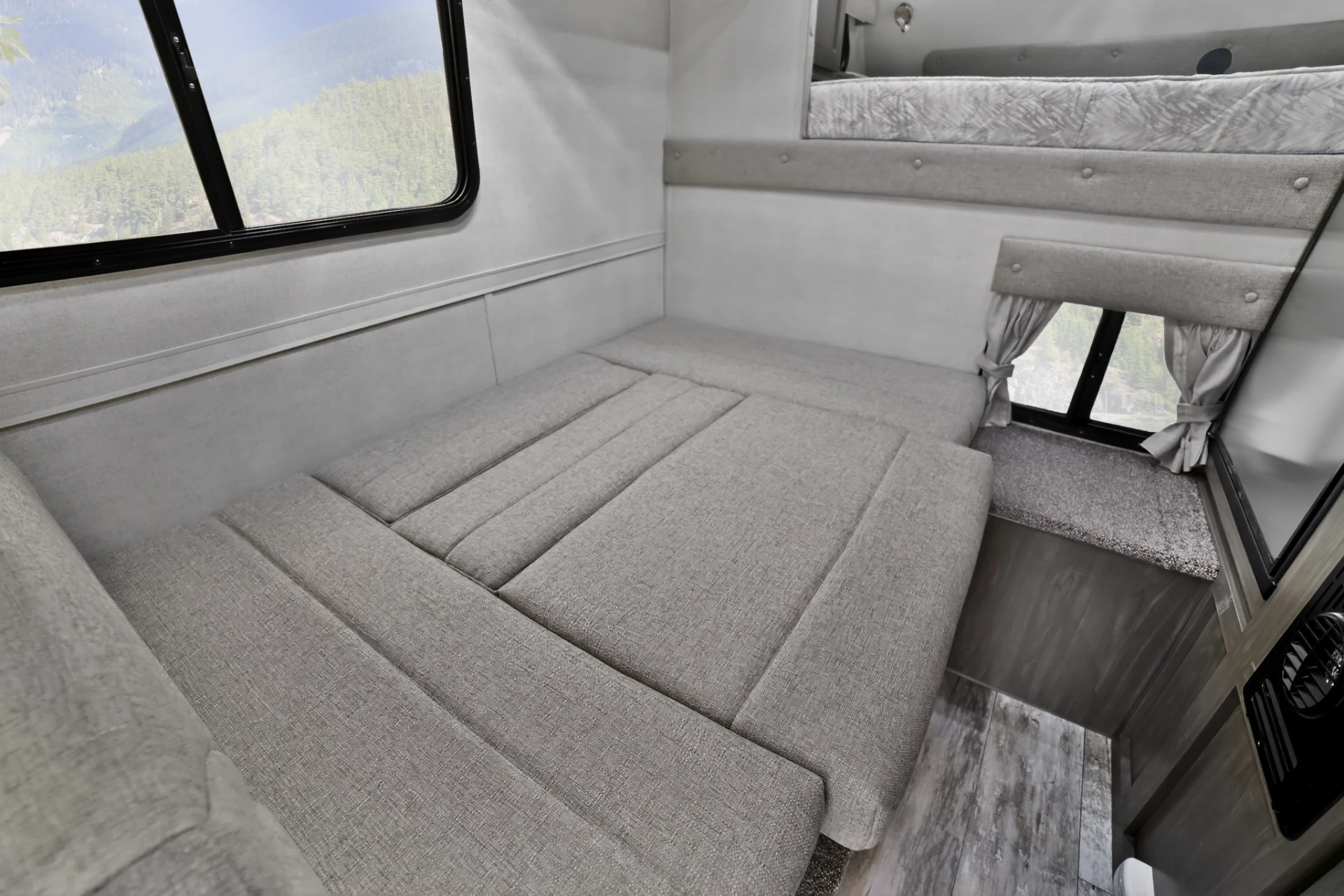

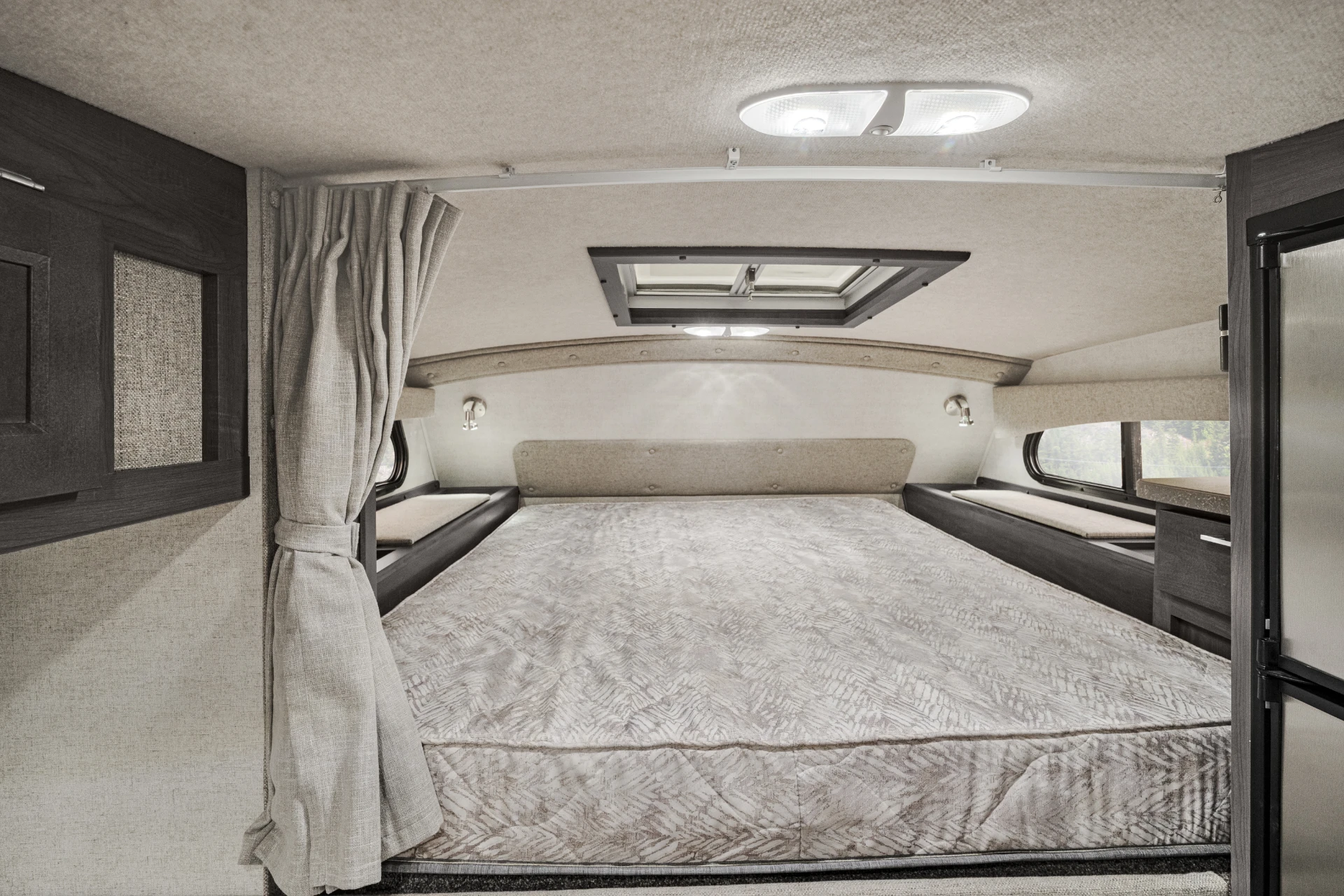

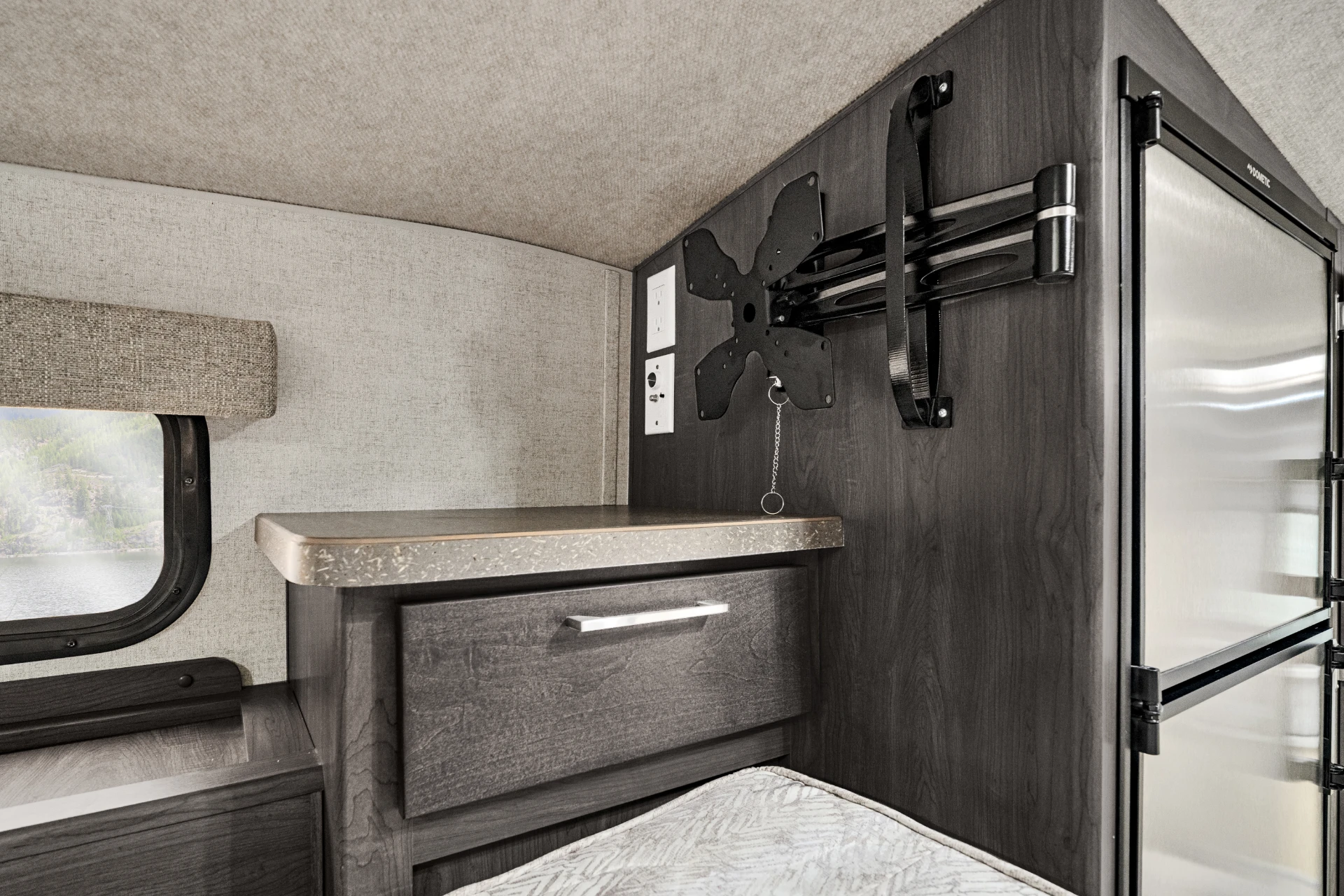

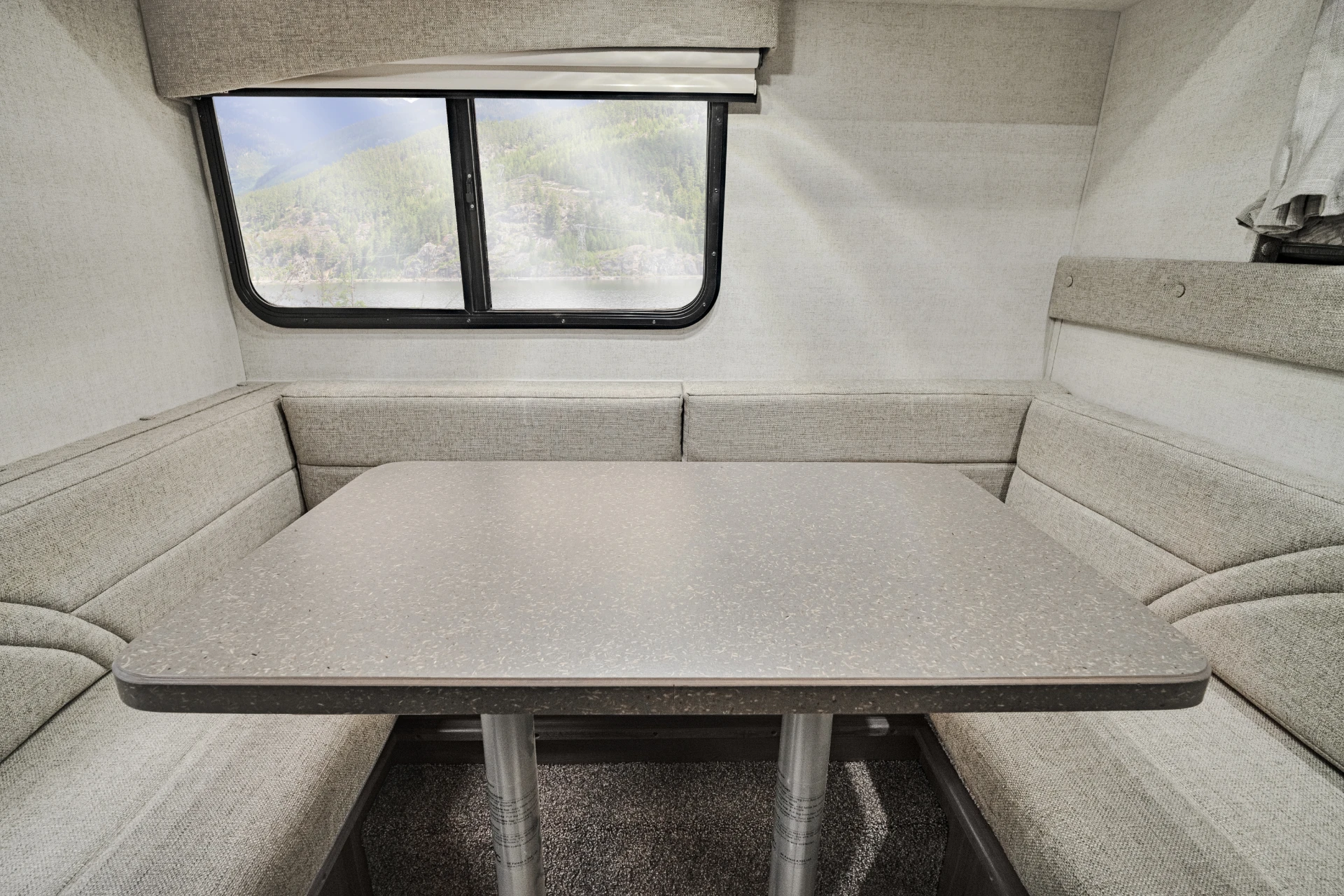

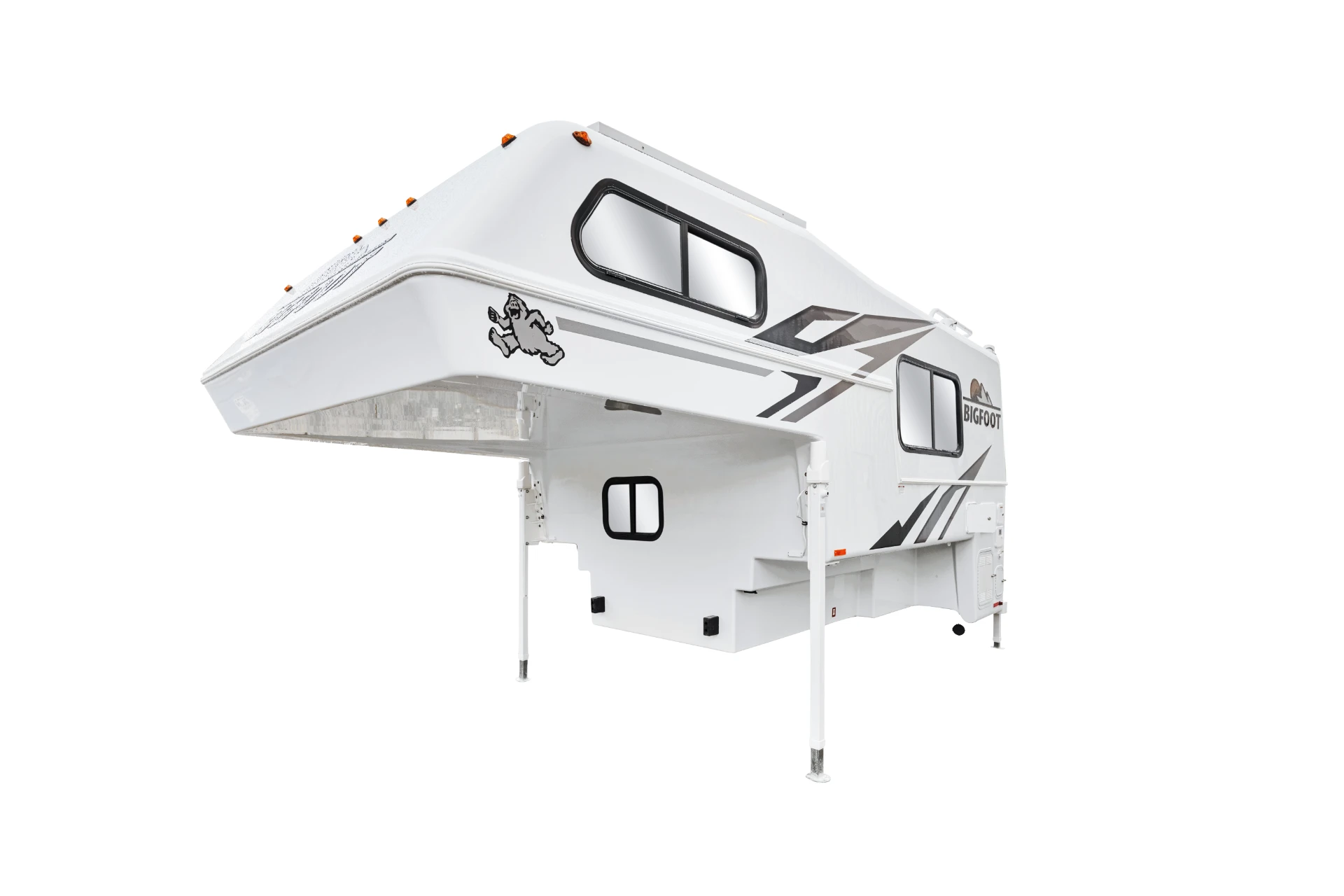

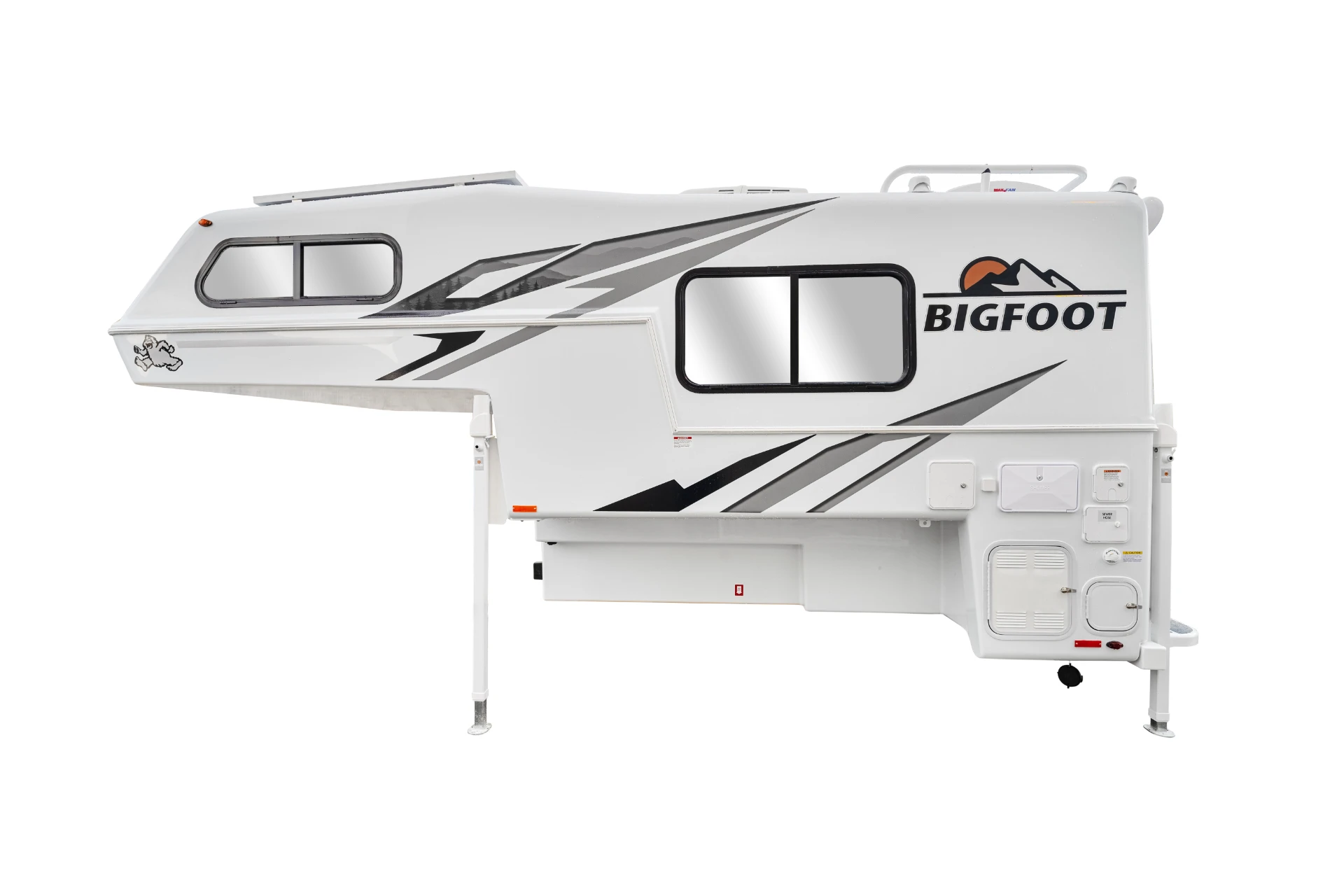

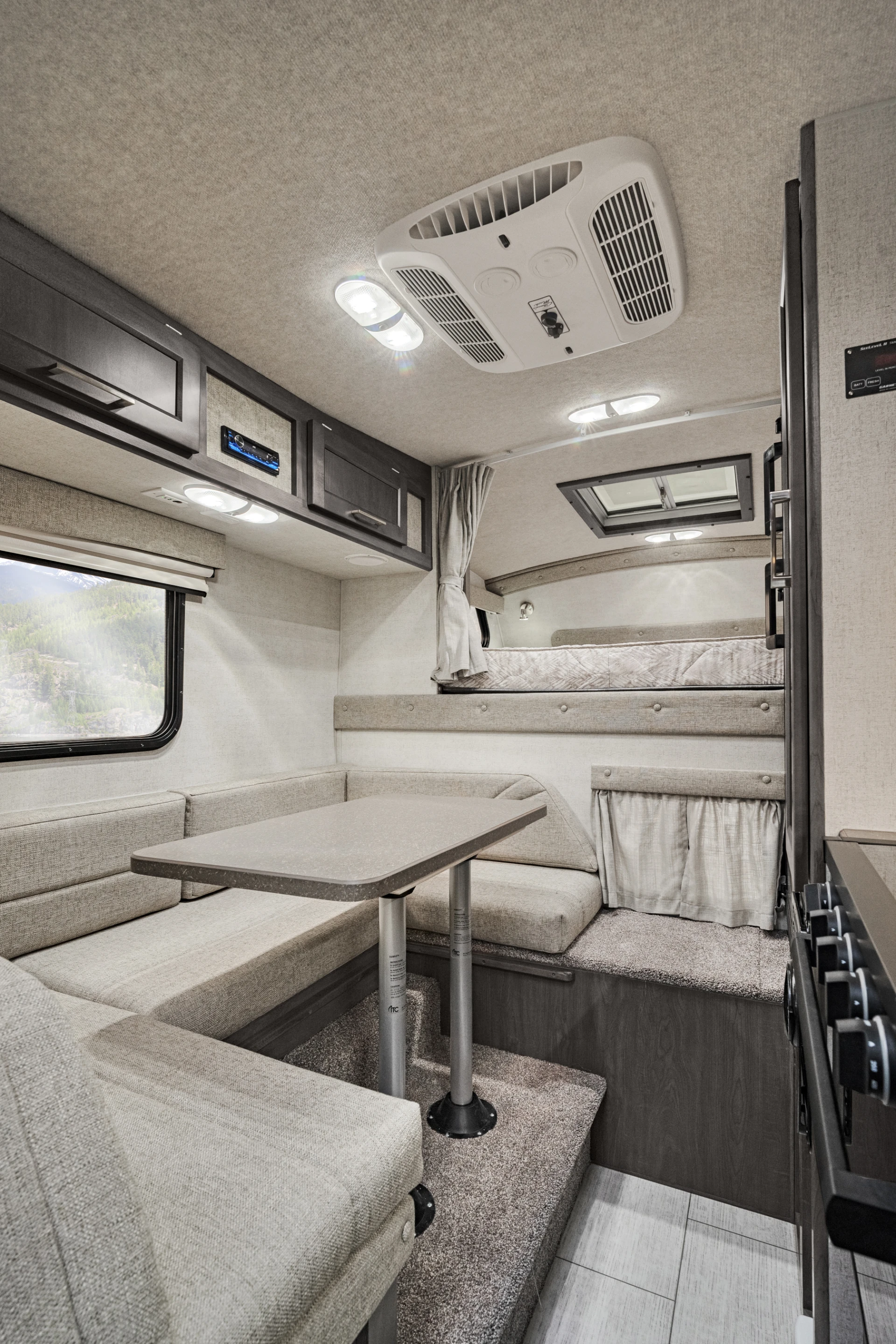

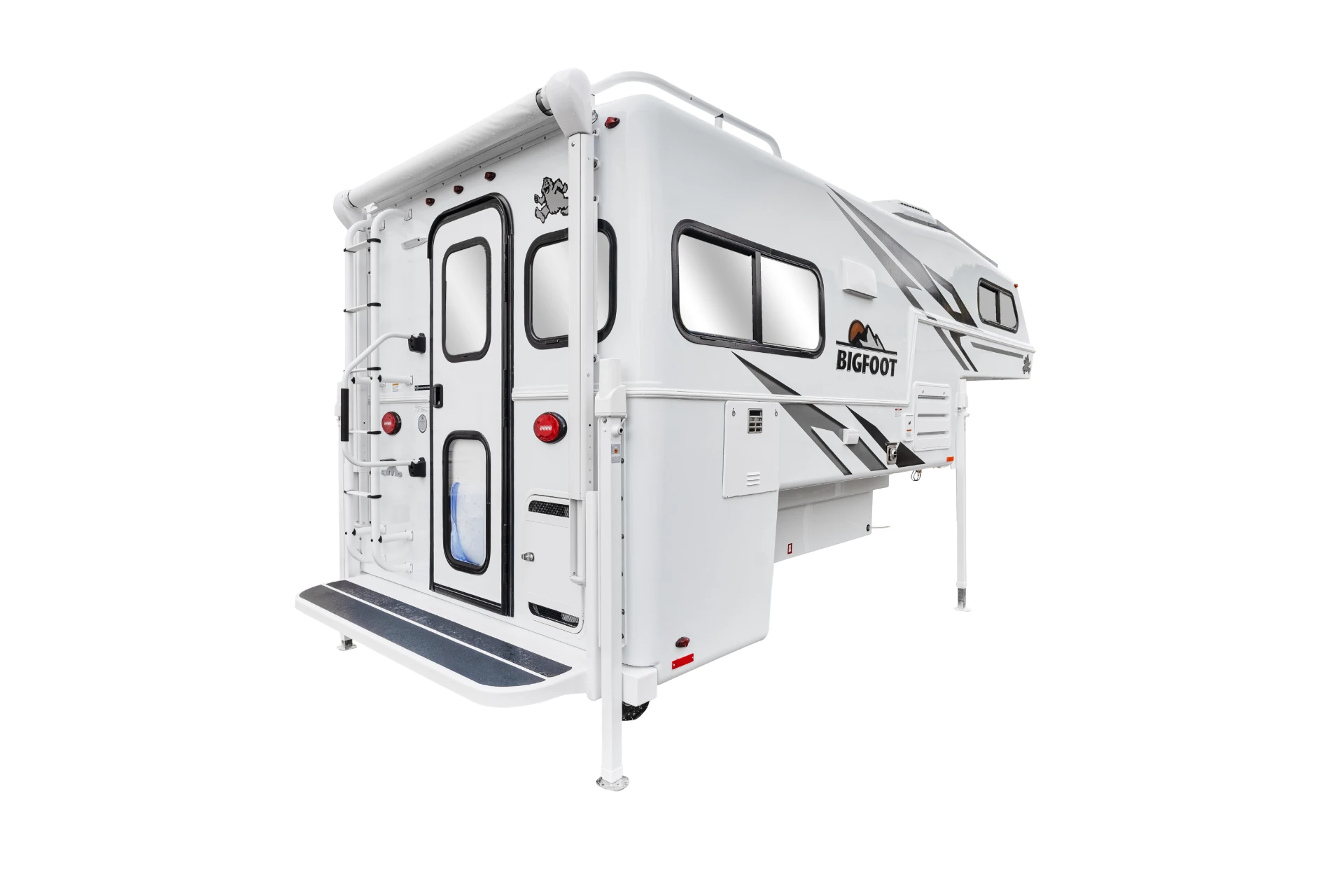

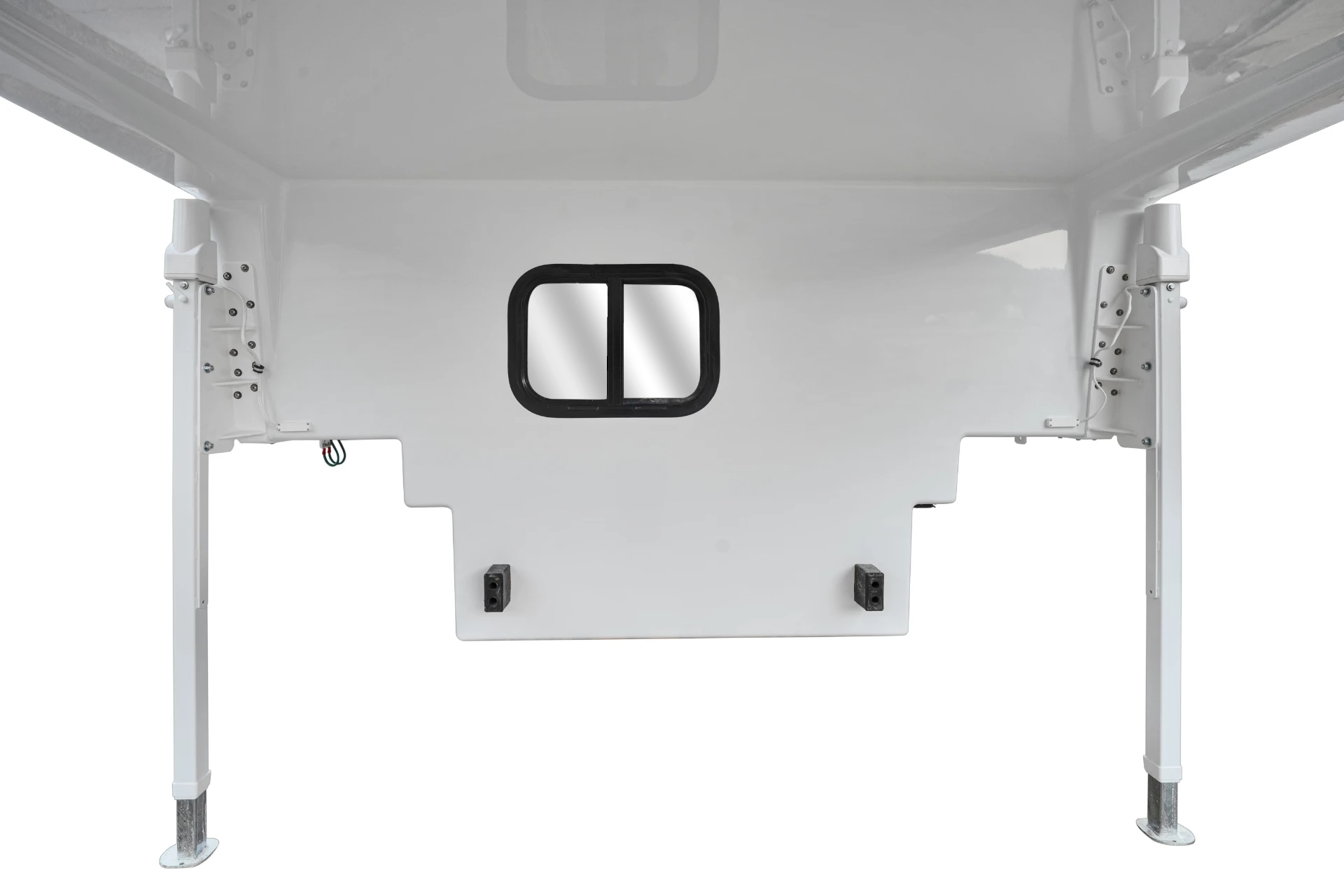

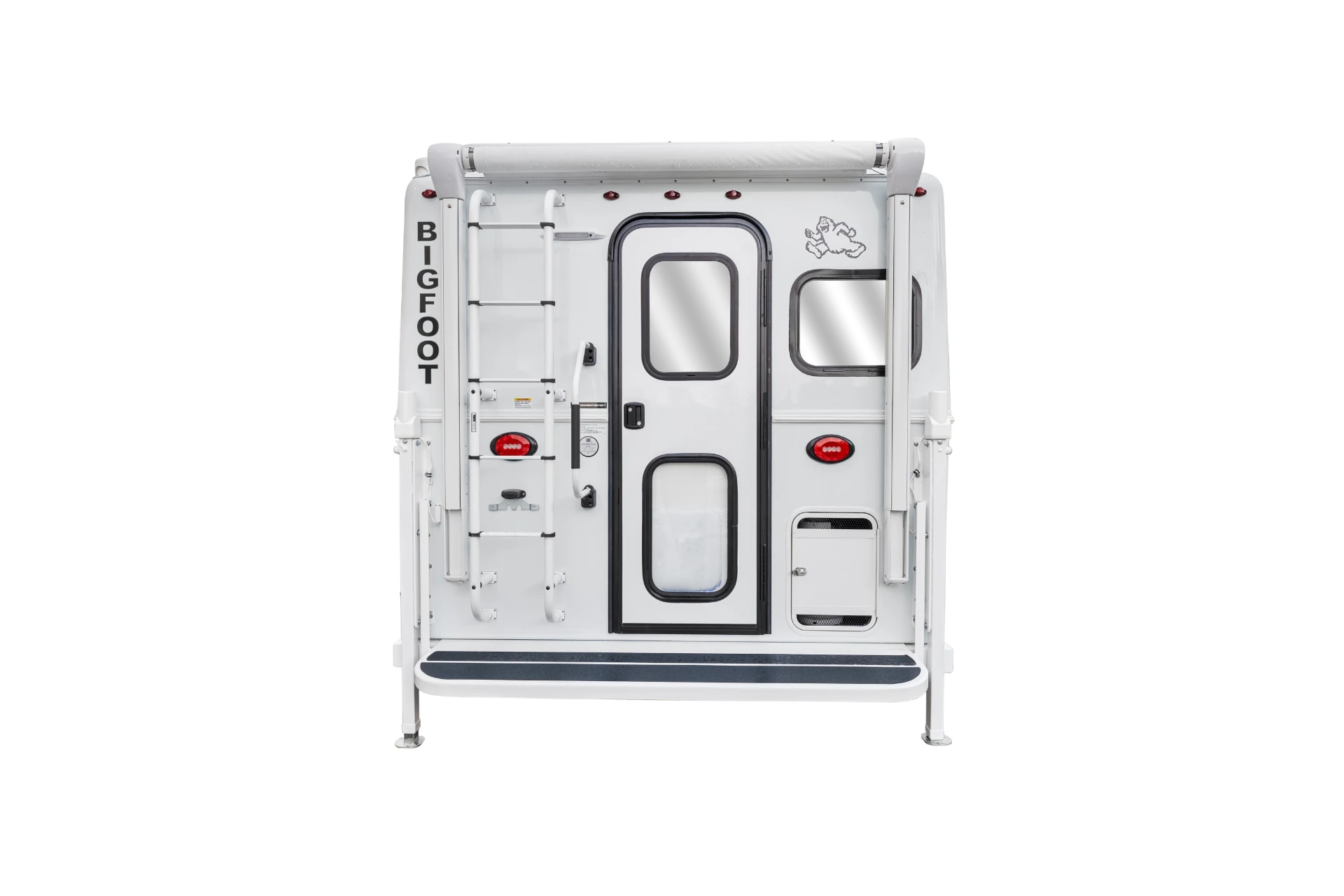

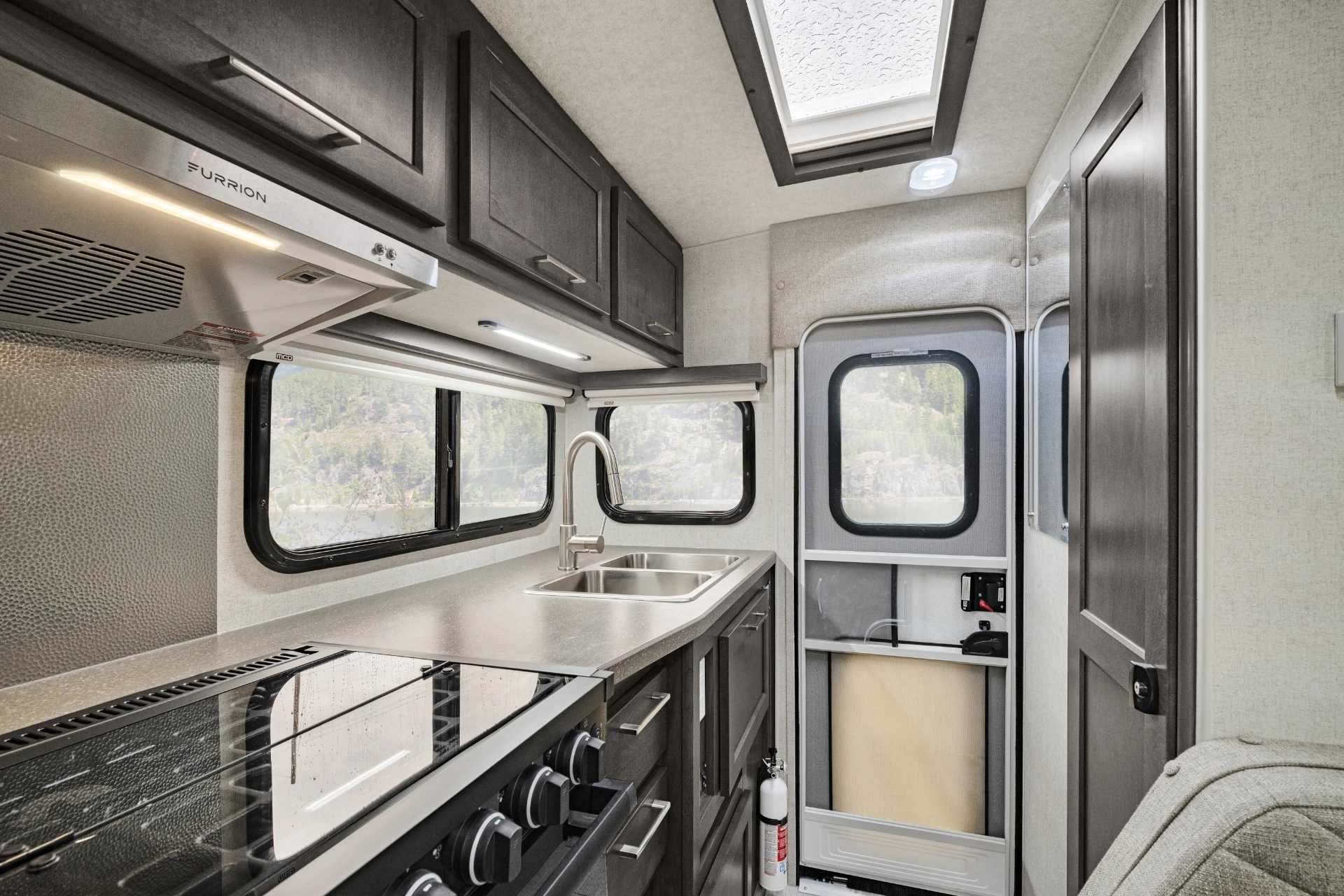

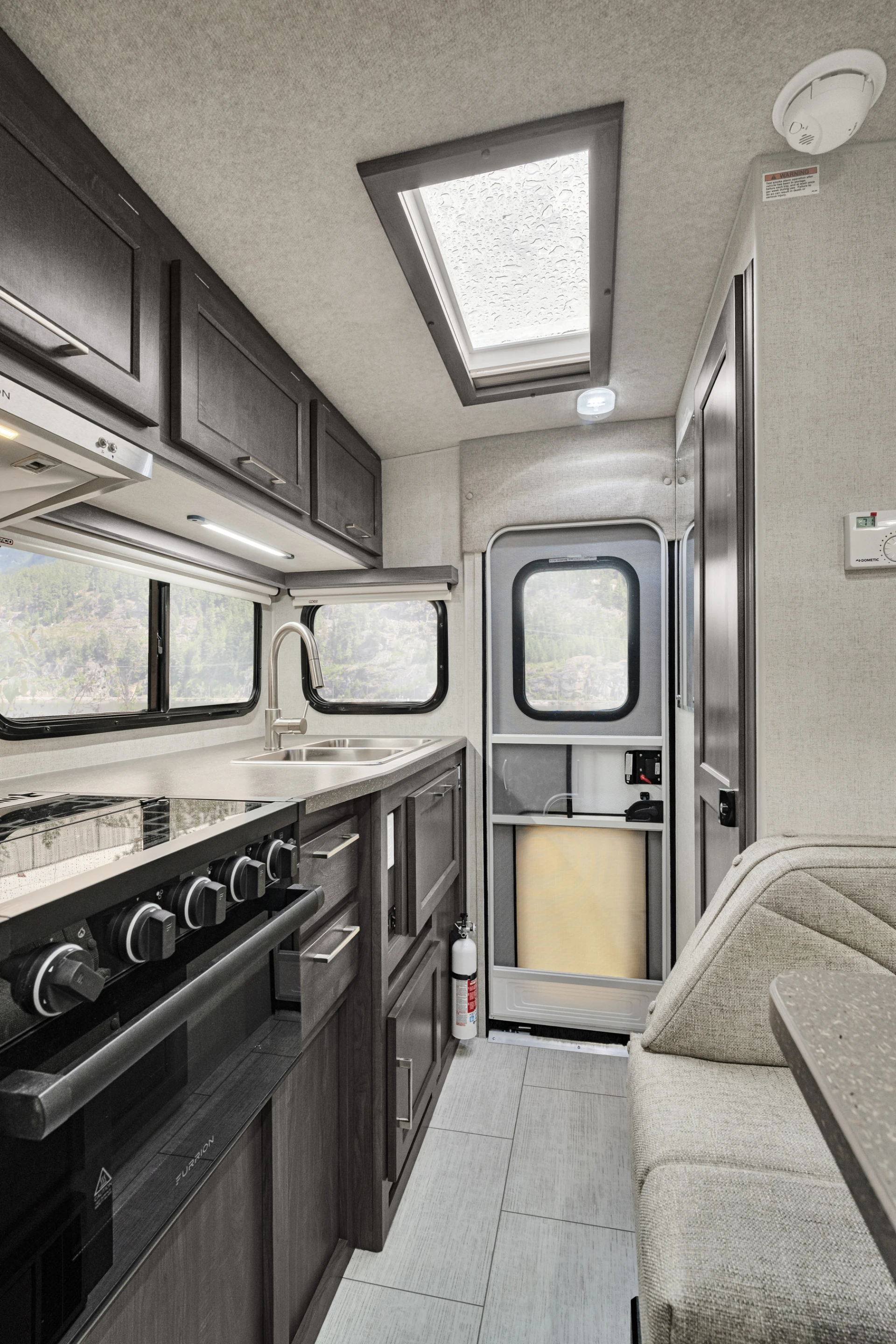

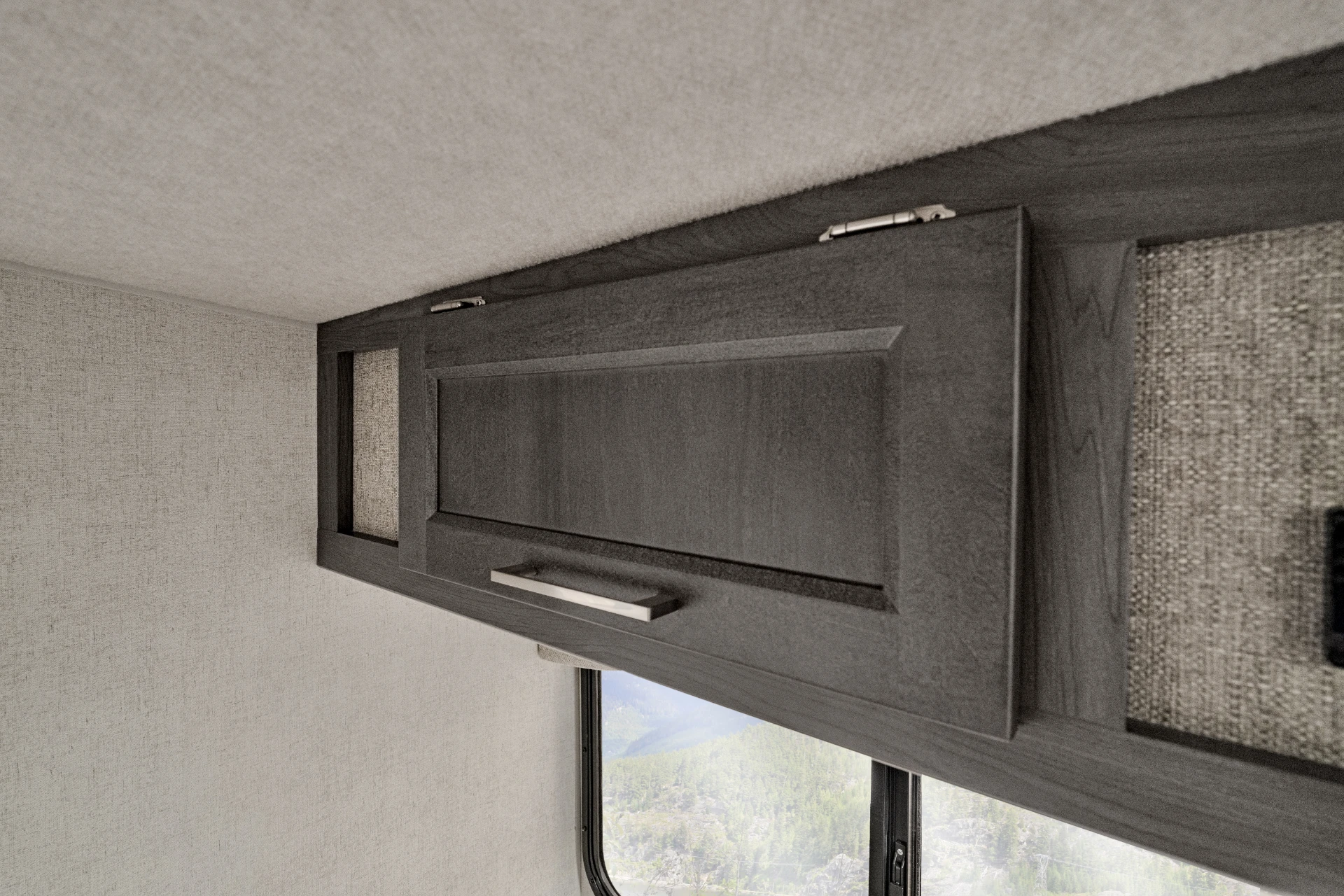

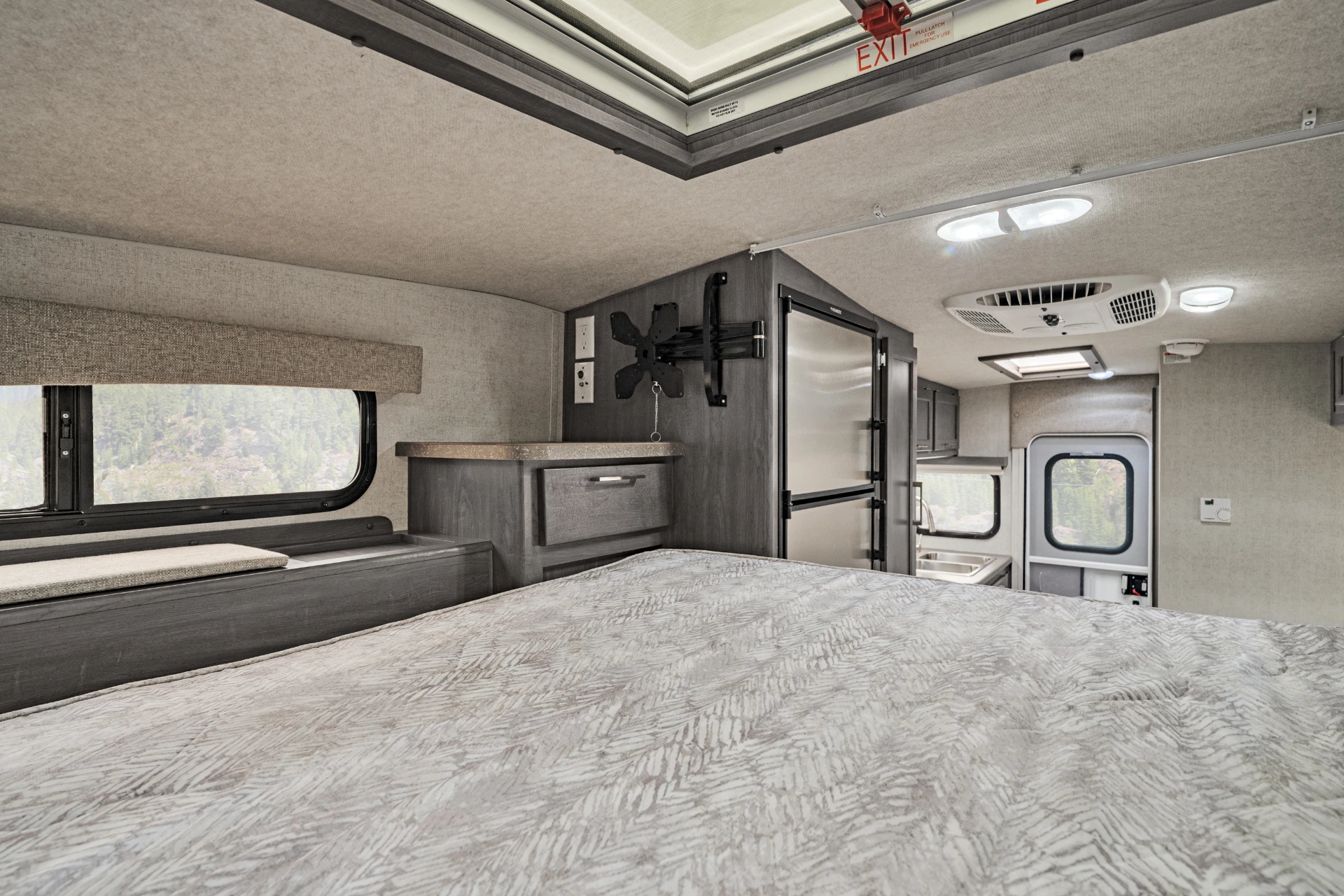

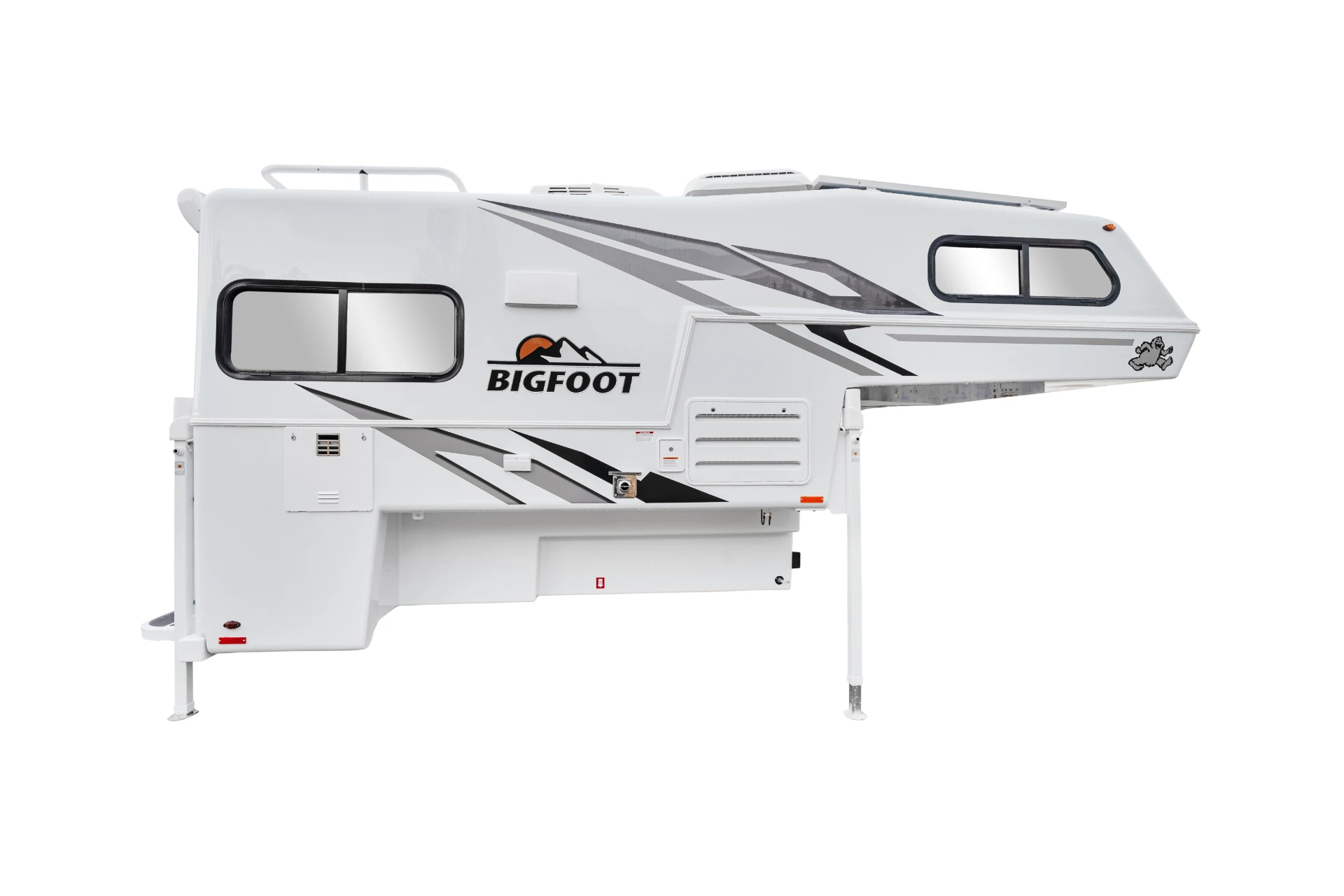

A closer look at the C9.5 C9.5FS.
04Specs & Equipment
Detailed specifications for C9.5FS.
Overall Length16'-6" (5.03 m)
Overall Height7'-5" (2.26 m) (Truck bed to top of refrigerator vent)
Overall Width7'-11" (2.41 m)
Interior Height6'-7" (2.03 m)
Base Dry Weight2,245 lbs (1,019 kg)
Fresh Water32 gal (122 L)
Grey Water11 gal (42 L)
Black Water14 gal (53 L)
LPG Capacity40 lbs (18 L)
Water Heater6 gal (23 L)
Furnace20,000 BTU
Fridge6 cu ft (170 L)
Standard equipment included on every C9.5FS — built in at the factory, no upgrades required.
Exterior

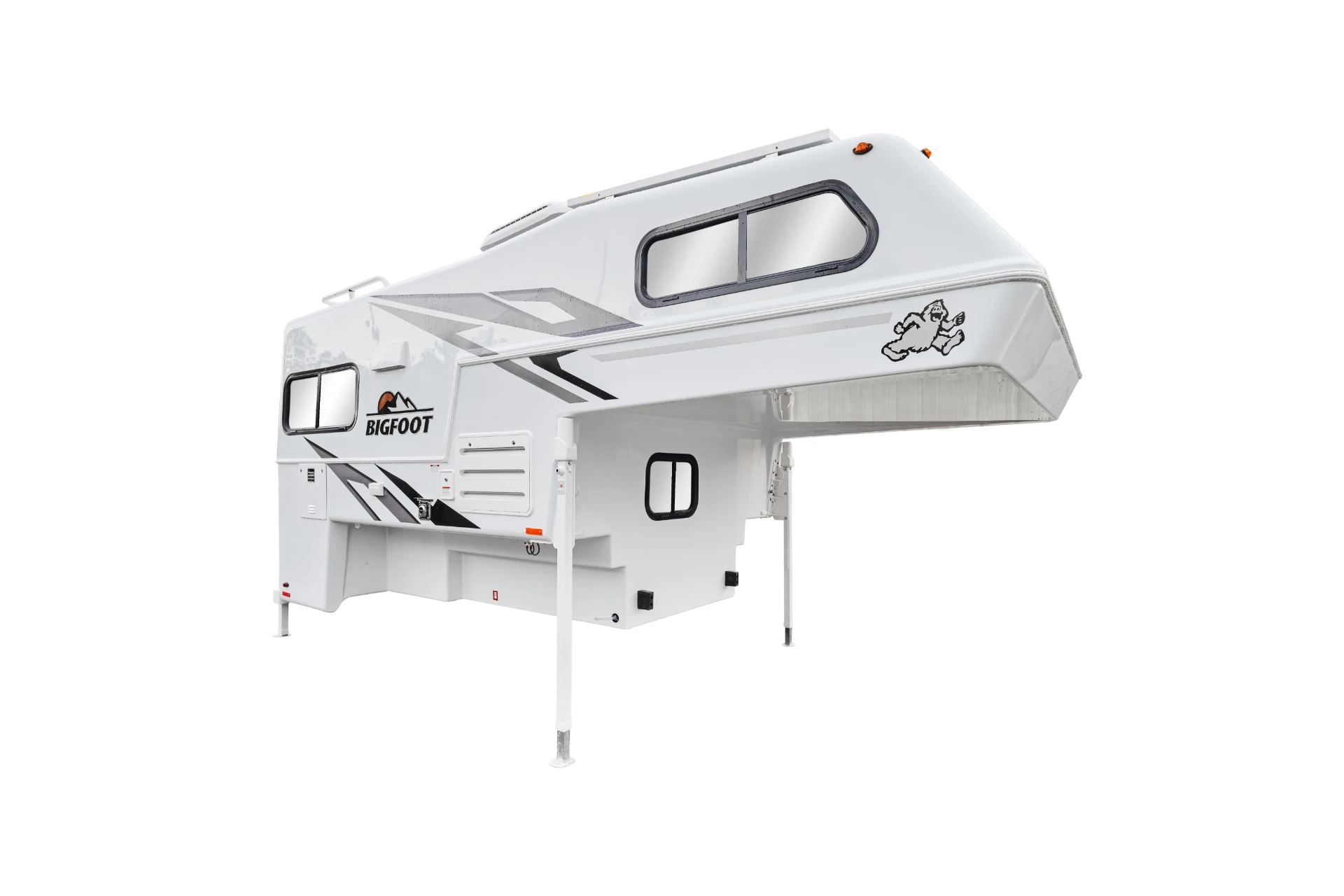

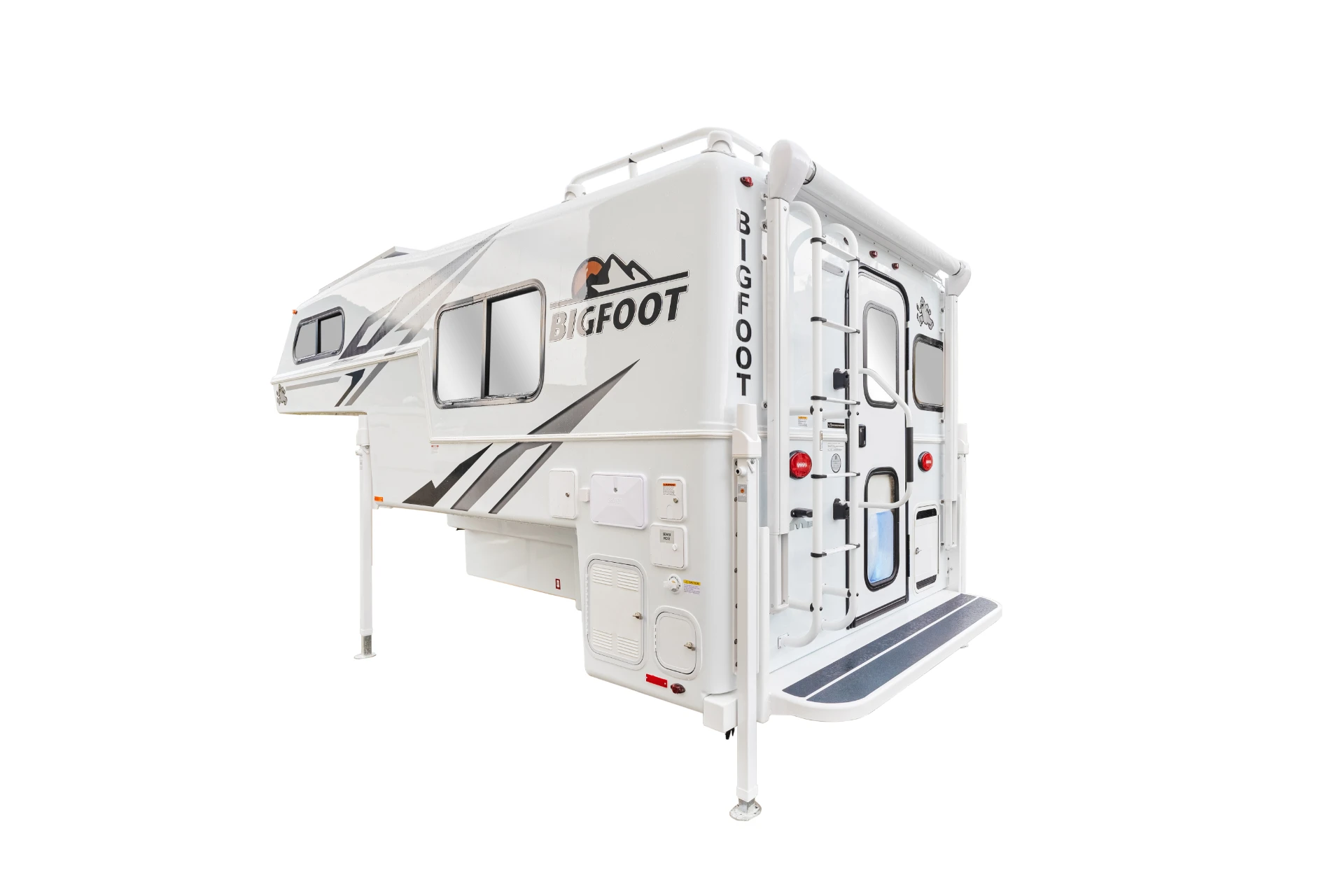

- Lightweight Two Piece Fiberglass Exterior Shell
- 1” 2 Lbs (Type 3) High Density EPS Insulation (R6)
- Radius Corner Solar Reflective Safety Glass Thermal Pane Windows with Screens
- Folding Assist Handle
- LED Exterior Clearance and Directional Lighting
- Propane Tank Storage Compartment
- Dual 20 lb Propane Tanks with Auto Changeover & OPD Valves
- Sewer Hose Storage Compartment
- Cab Thru Window (Not Tinted)
- Ladder
- Mechanical Power-Coated Jacks
- Solar System - 400 Watt solar panel with charge controller
Interior
- Washable Vinyl Wall Panelling
- Marine Quality Fabric Headliner
- Face Framed Double Screwed Cabinets
- Spring Filled Foam Mattress

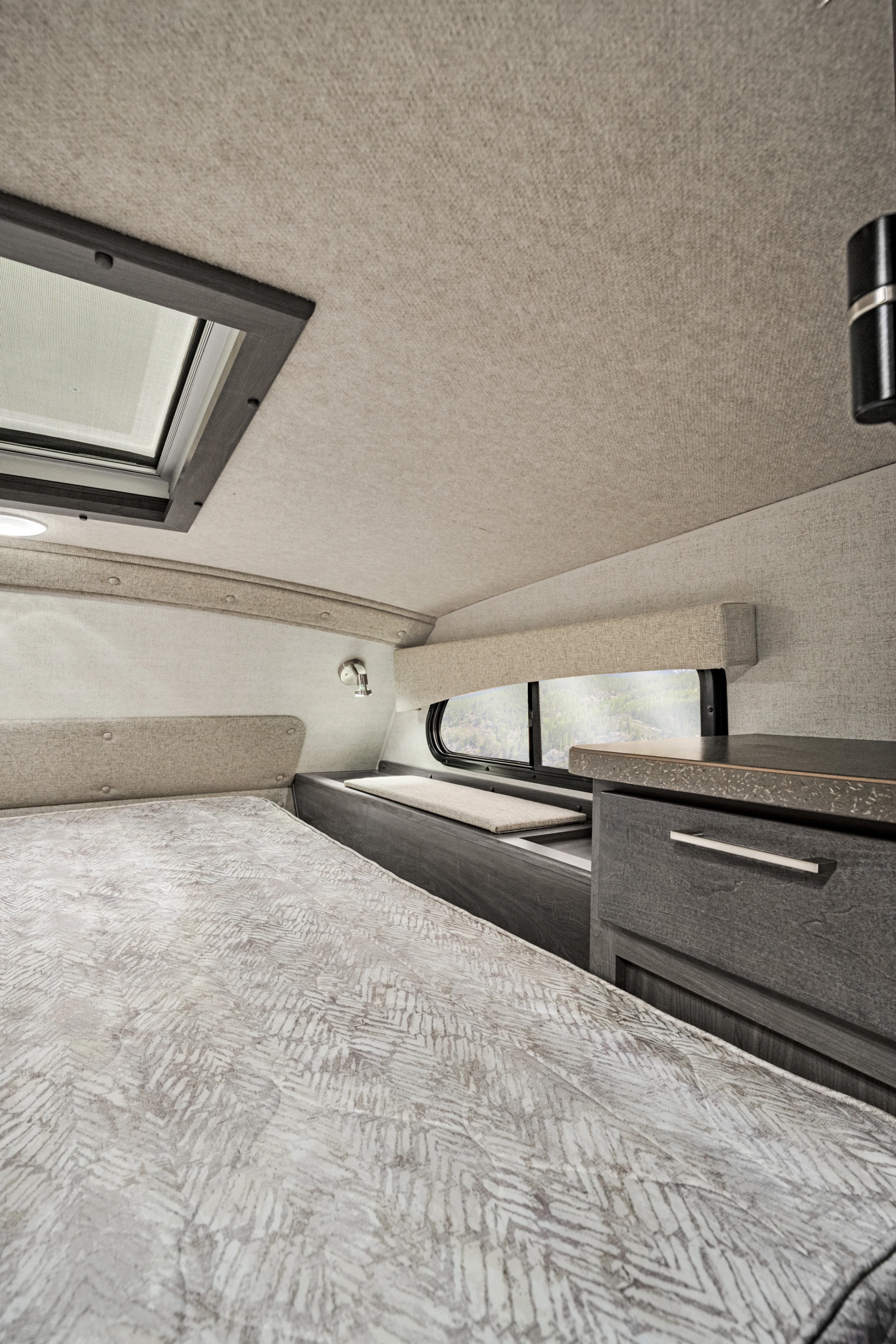

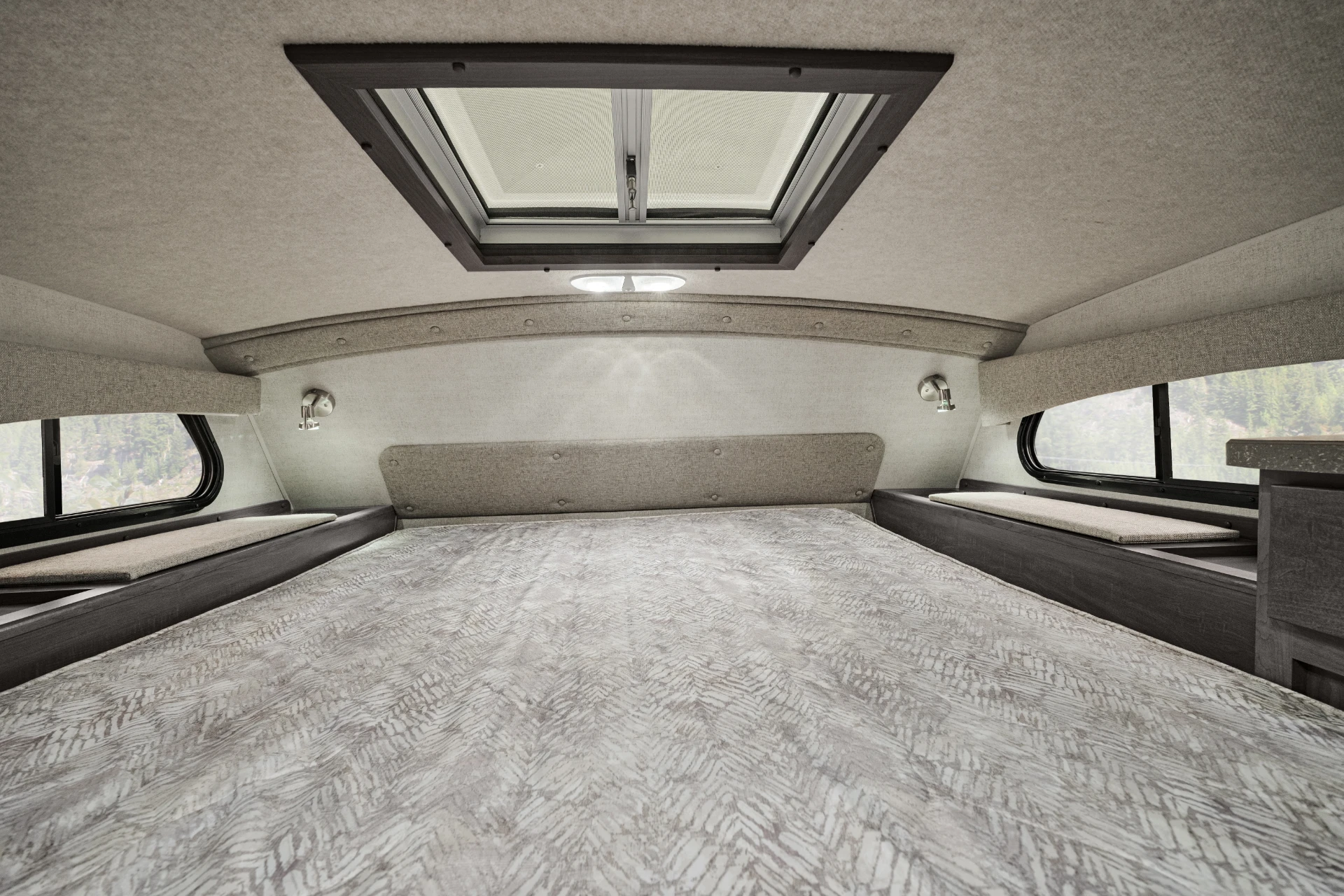

- 36" Headroom in Bunk Area
- Shirt Closet in Bunk Area
- Roller Shades
- Bedside Storage Cabinets
- TV Shelf
- LED Lighting
Electrical
- Electrical Battery Disconnect
- Electrical 120 VAC / 30 Amp Service / 45 Amp DC Power Converter with Battery Charger
- Pre-wired for Roof Air Conditioner
- Power Fan in Bathroom
- Maxxair Fan (choice of location)
- Battery Ready
- Exterior Lights (3)
Safety
- Smoke, Carbon Monoxide and Propane Detectors
- Fire Extinguisher
- Emergency Escape Hatch
Kitchen & Appliances

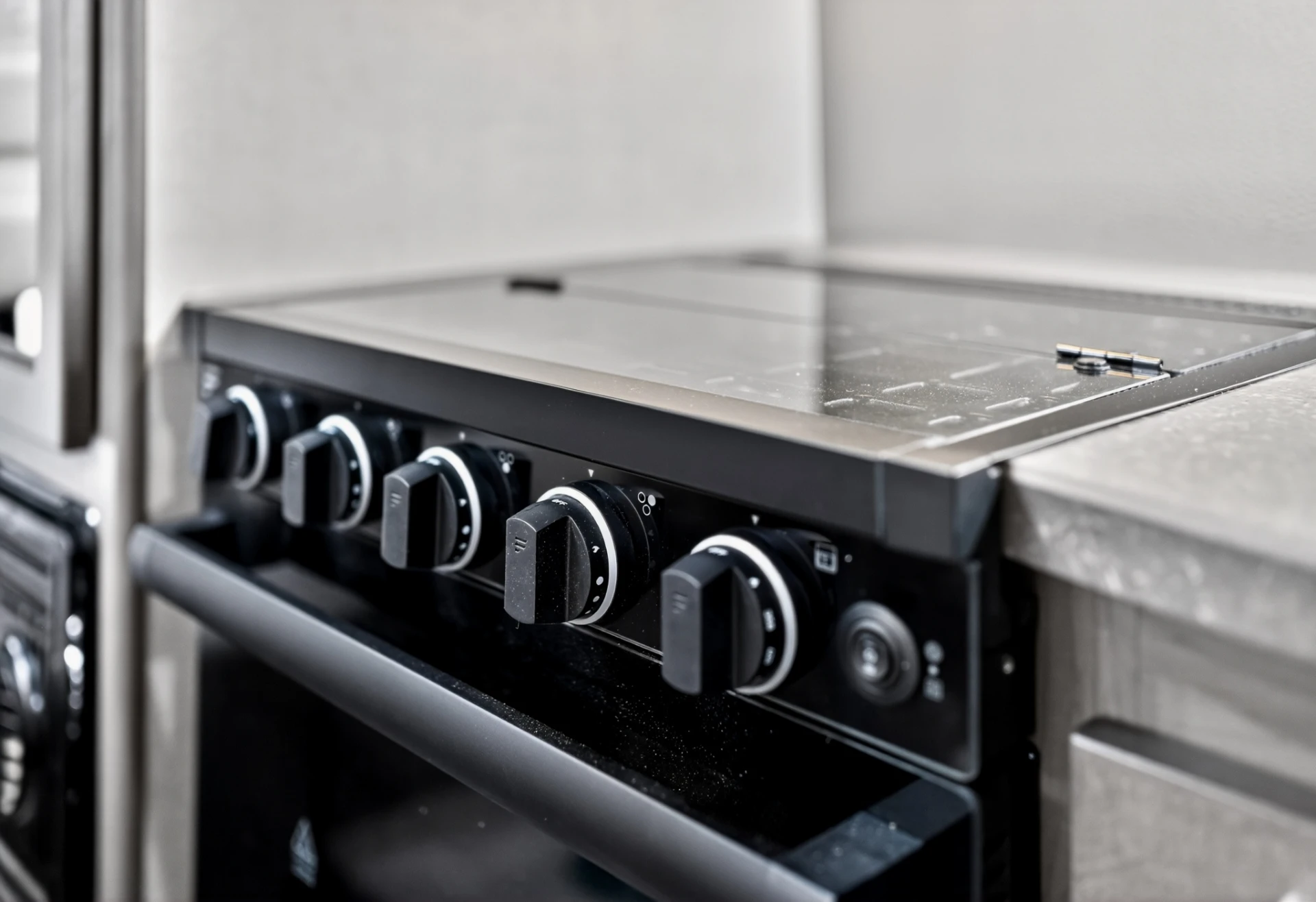

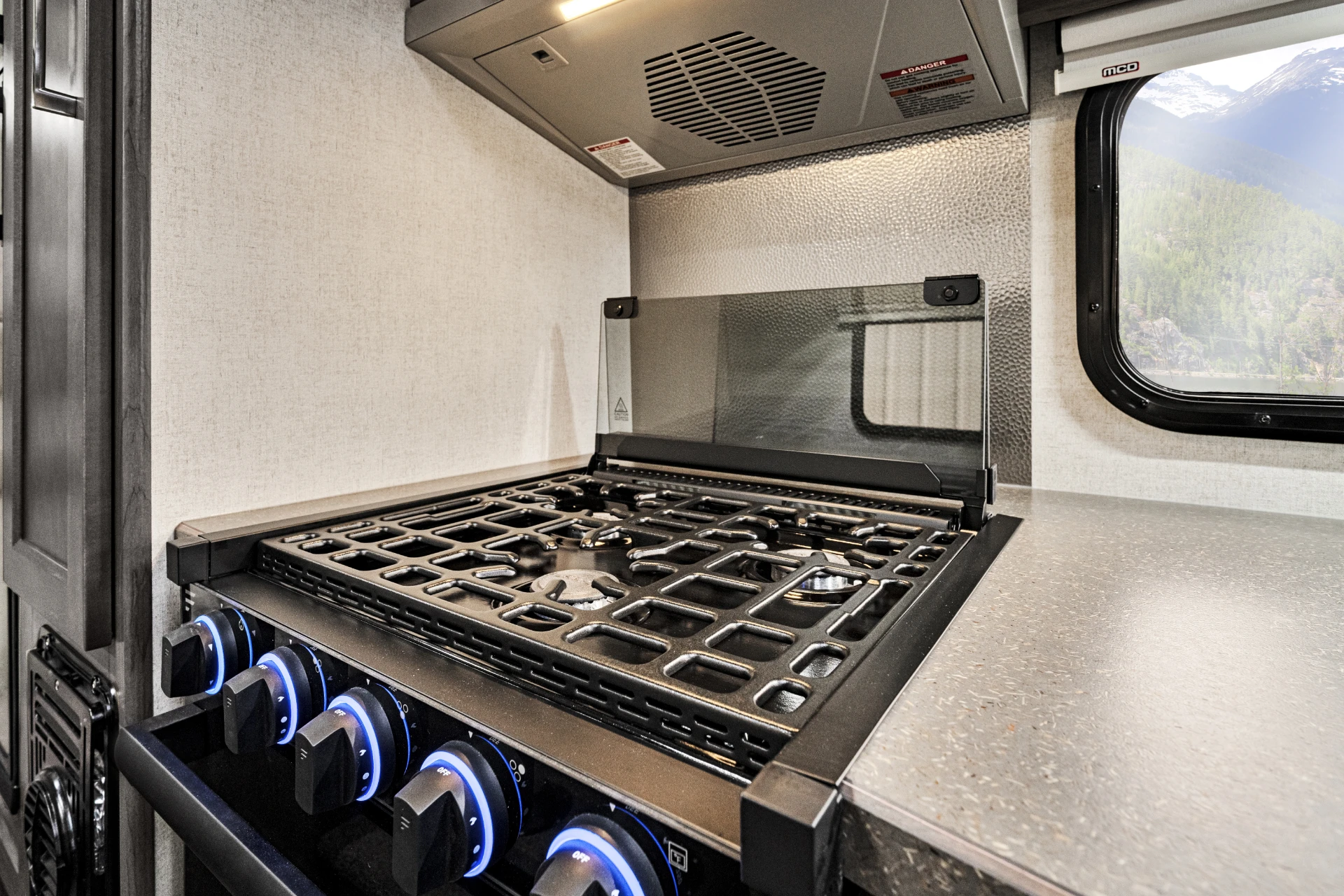

- Stainless Steel Oven and 3 Burner Cooktop with Glass Cover
- 12 Volt Range Hood
- 20,000 BTU furnace

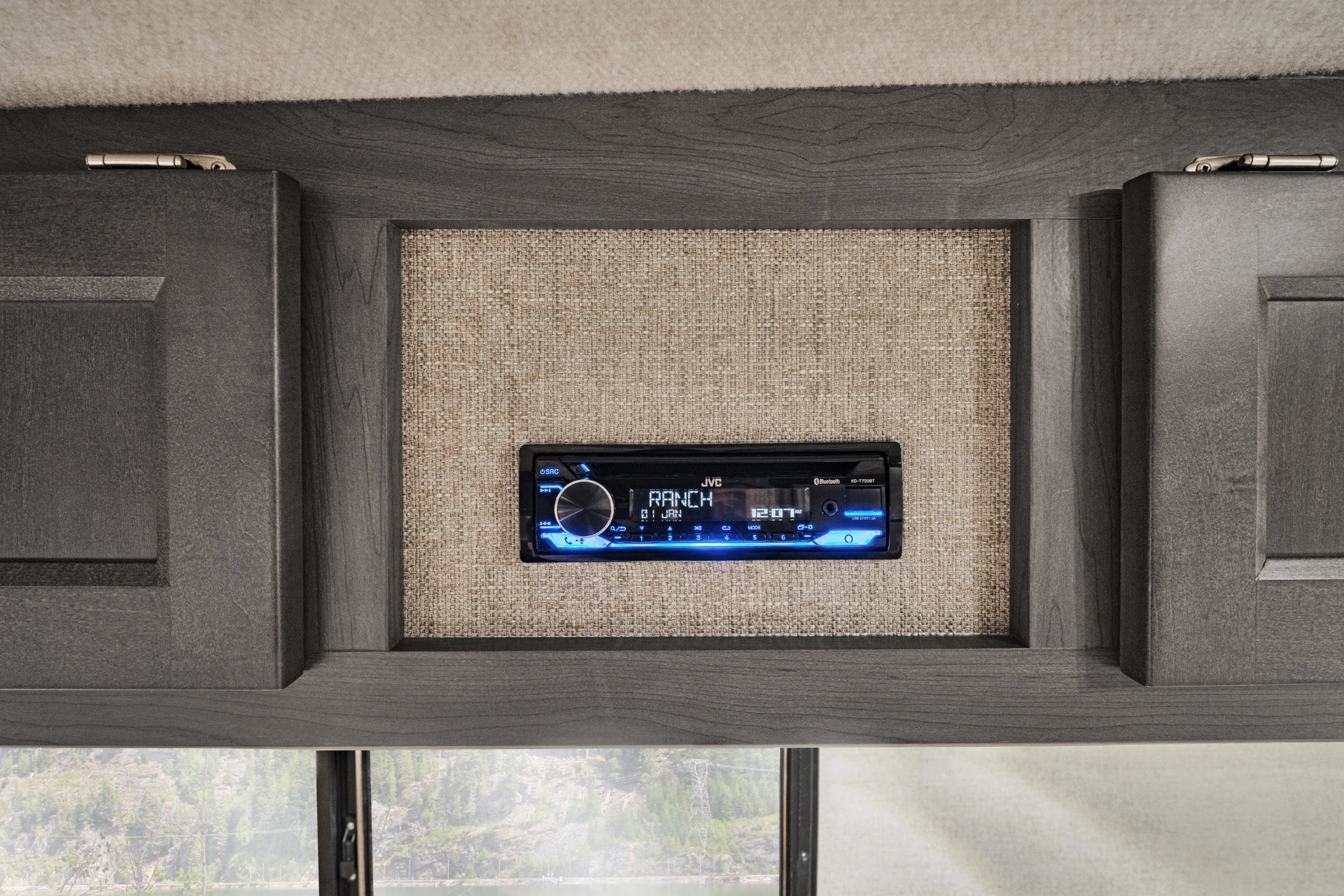

- Stereo AM/FM CD Player (Satellite Ready)
- Monitor Panel (See Level)

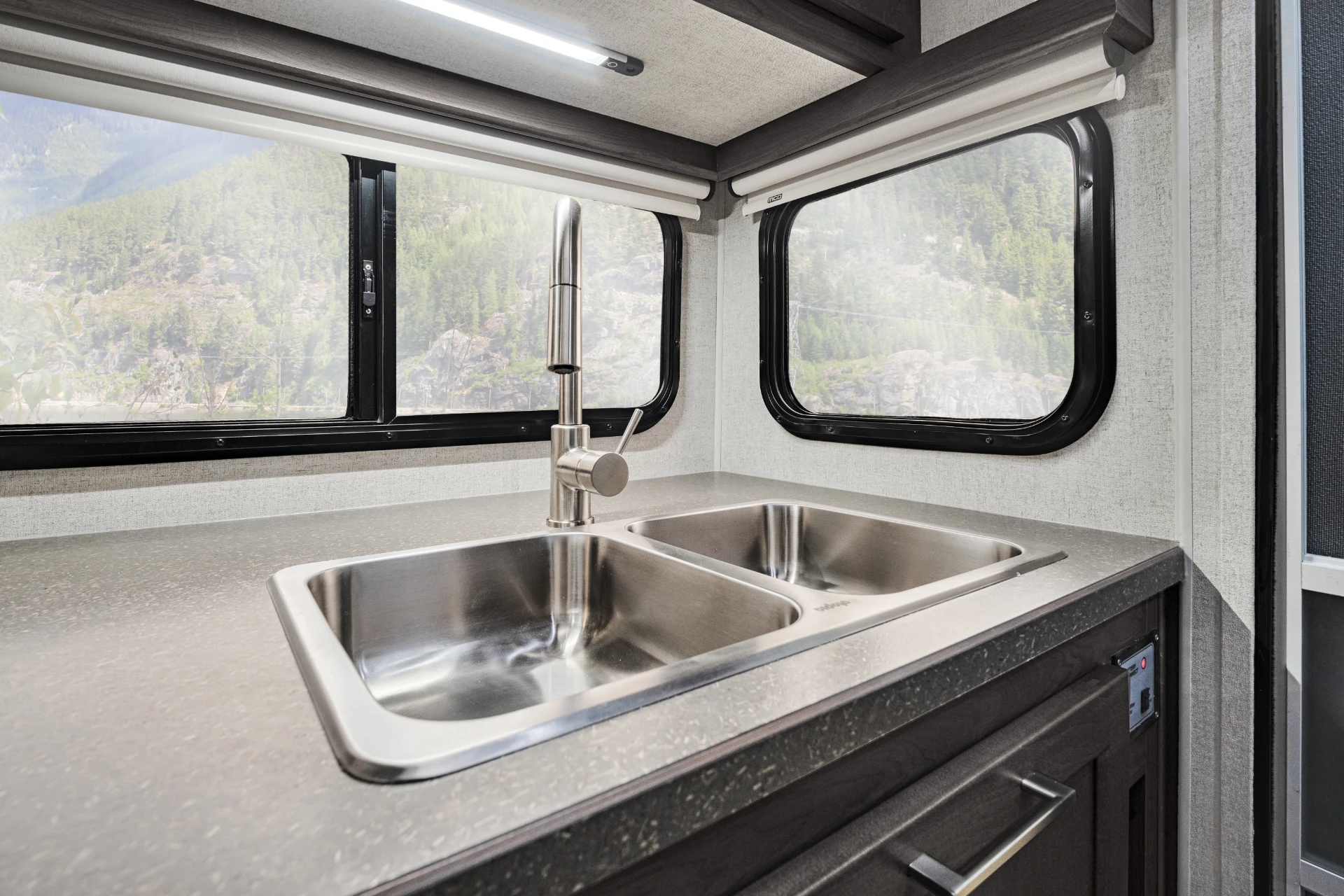

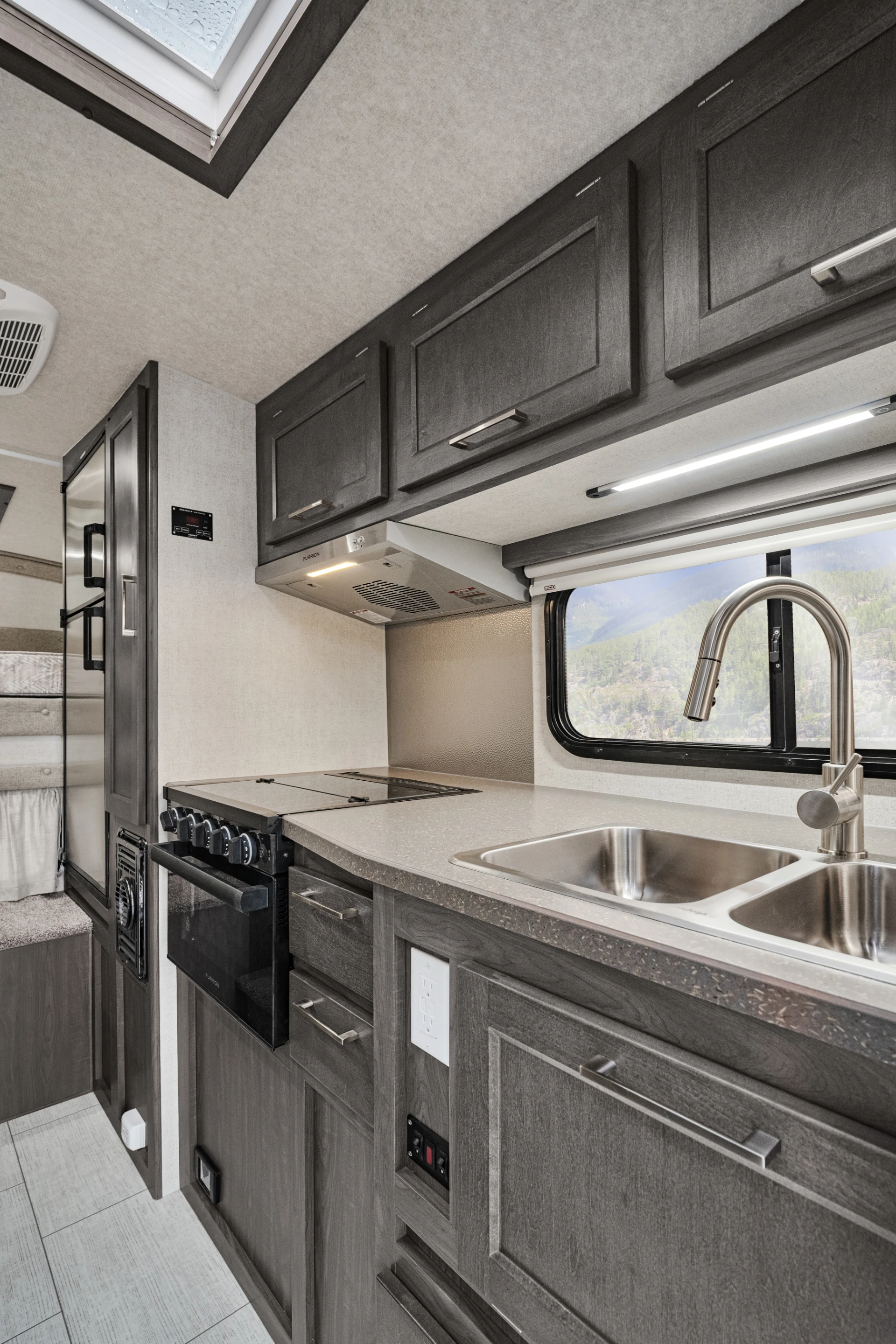

- Double Stainless Steel Sink with Hi-Rise Faucet
- Cutting Board
- Stainless Steel 2 Way Refrigerator
Plumbing
- City Water Hookup

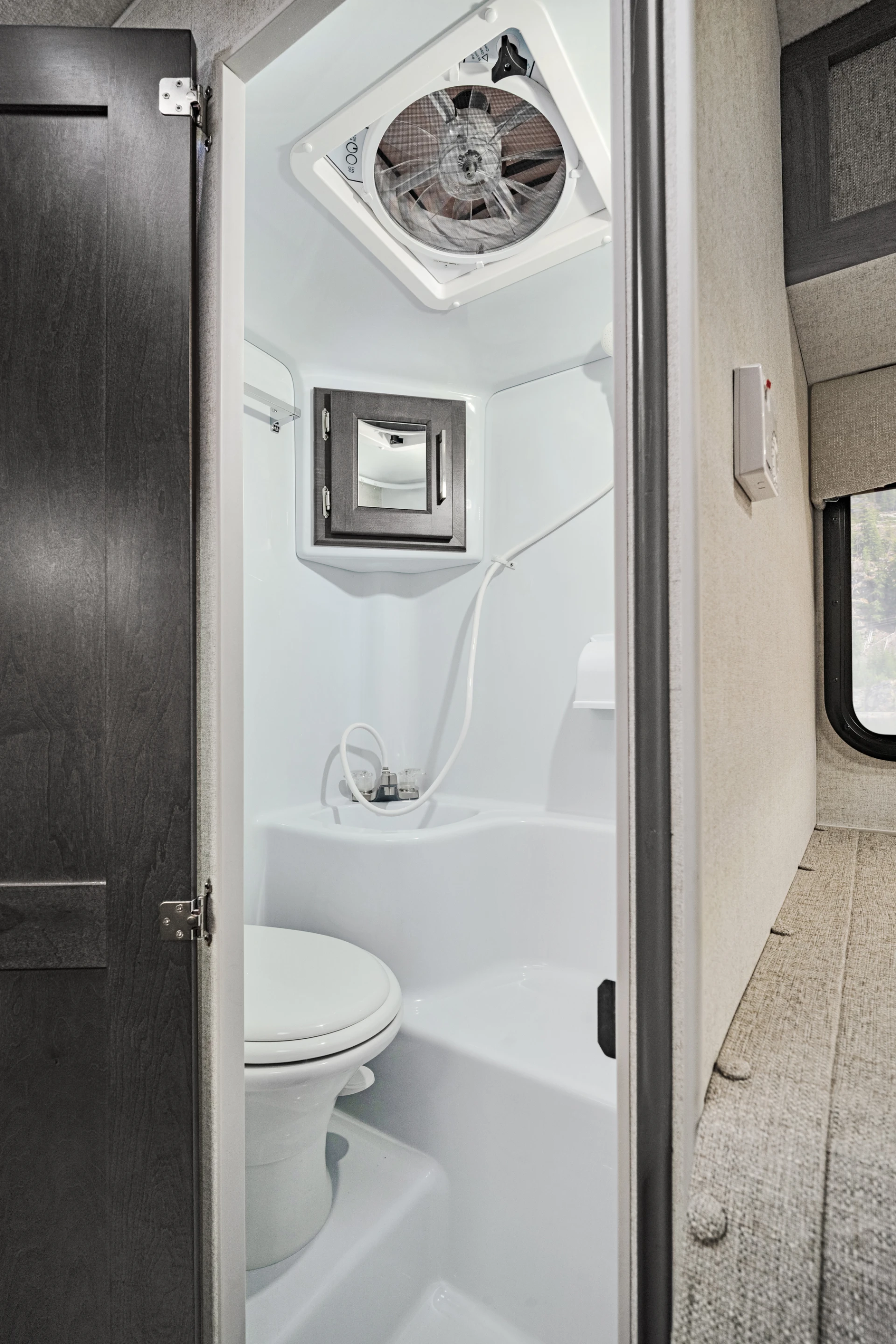

- Porcelain Toilet
- 12 Volt Demand Water Pump System
- Molded Fiberglass Shower Enclosure
- Water Heater Bypass System & RV Antifreeze Pickup System for Winterization
- Heated and Enclosed Holding Tanks
- Electronic Ignition Hot Water Heater
- Black Tank Rinse System
Options (sold separately) available for the C9.5FS — tailor your build through your dealer.
- Air Conditioner - MACH 10 NDQ - 13,500 BTU
- Aluminum Rear Platform Bumper Step
- Camper 5 Step
- Electric Awning - 8'
- Electric Awning - Rear Door 6'
- Canoe Rack
- Electric Jacks, Motors & Remote
- Exterior Shower with Winterizing Valves
- Maxxair Exhaust Fan (Bathroom)
- Maxxair 2 Way Fan (Galley)
- LCD 12 Volt TV Prep Package
- LCD 12 Volt TV
- Stainless Steel Microwave Oven (7 cu ft)
- Optical Rear Vision Door
- Privacy Curtain
- RV BBQ Hook Up
- Rear Roof Rack
- Skylight in Living Room with Pleated Shade
- LP / 110V Hot Water Heater
- Truma Aquago (On Demand Water Heater)
- Winegard AIR 360 & LP 5G Antenna
- Wireless Rear View Camera System
Personalize your Bigfoot RV with our curated selection of premium interior materials and finishes.
Windswept FabricUpholsteryValances
Evolution FabricUpholsteryValances
Canoe BirchCabinets
DriftwoodCabinets
Birch PlankFlooring
CarpetFlooring
Counter LaminateSurfaces
Wall VinylSurfaces
Marine HeadlinerSurfaces

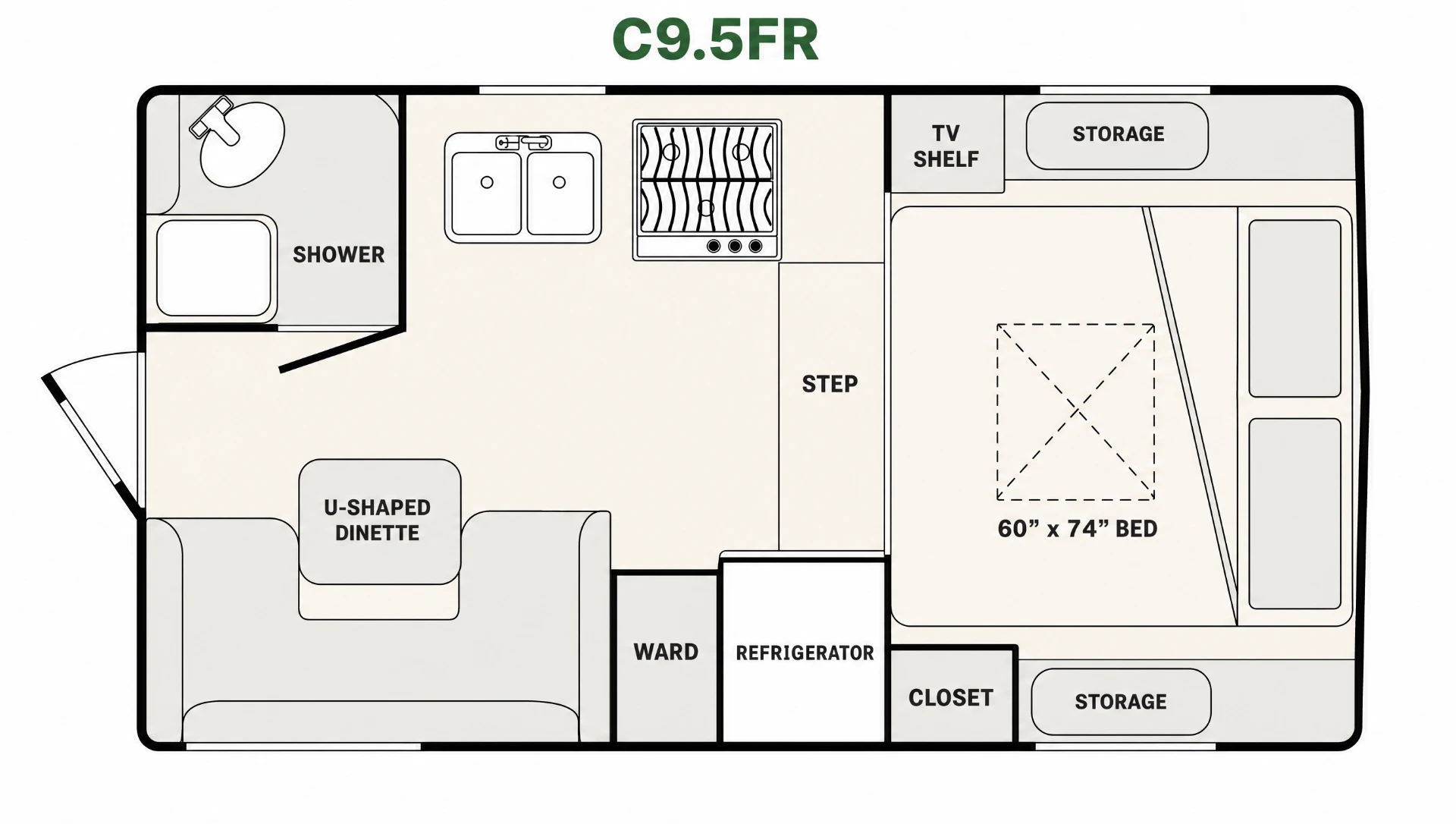

05Floor Plans
Other Floor Plans
More C9.5 layouts to explore.
06Next Steps
Ready to Start Your Adventure?
Contact your local Bigfoot RV dealer today for pricing and availability.
