01B25 Series
25B25RQ
The flagship B25 offers the ultimate in luxury and space, protected by Bigfoot's legendary two-piece molded fiberglass shell.
02Floor Plan
The 25B25RQ Layout
Click to enlarge

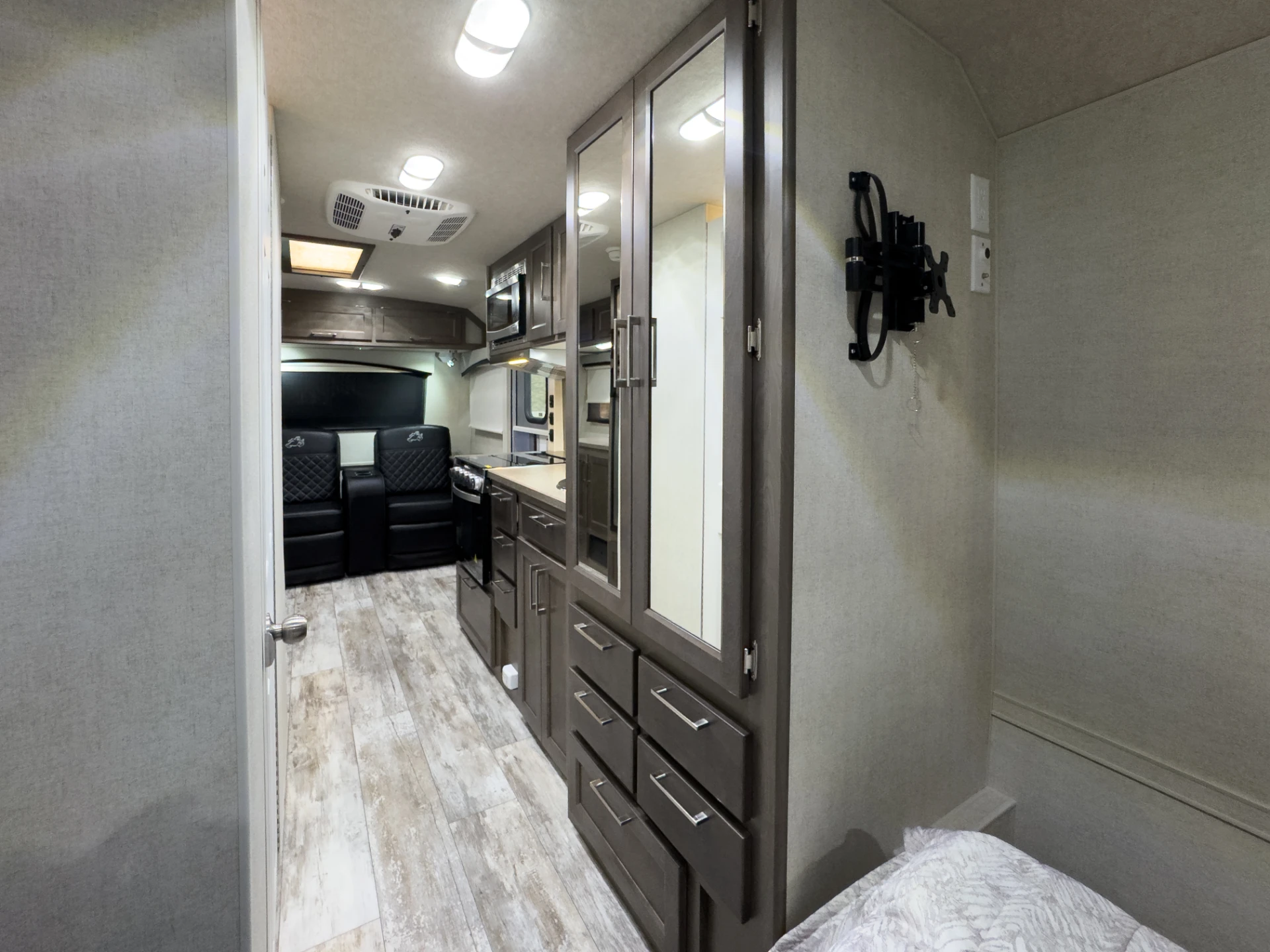

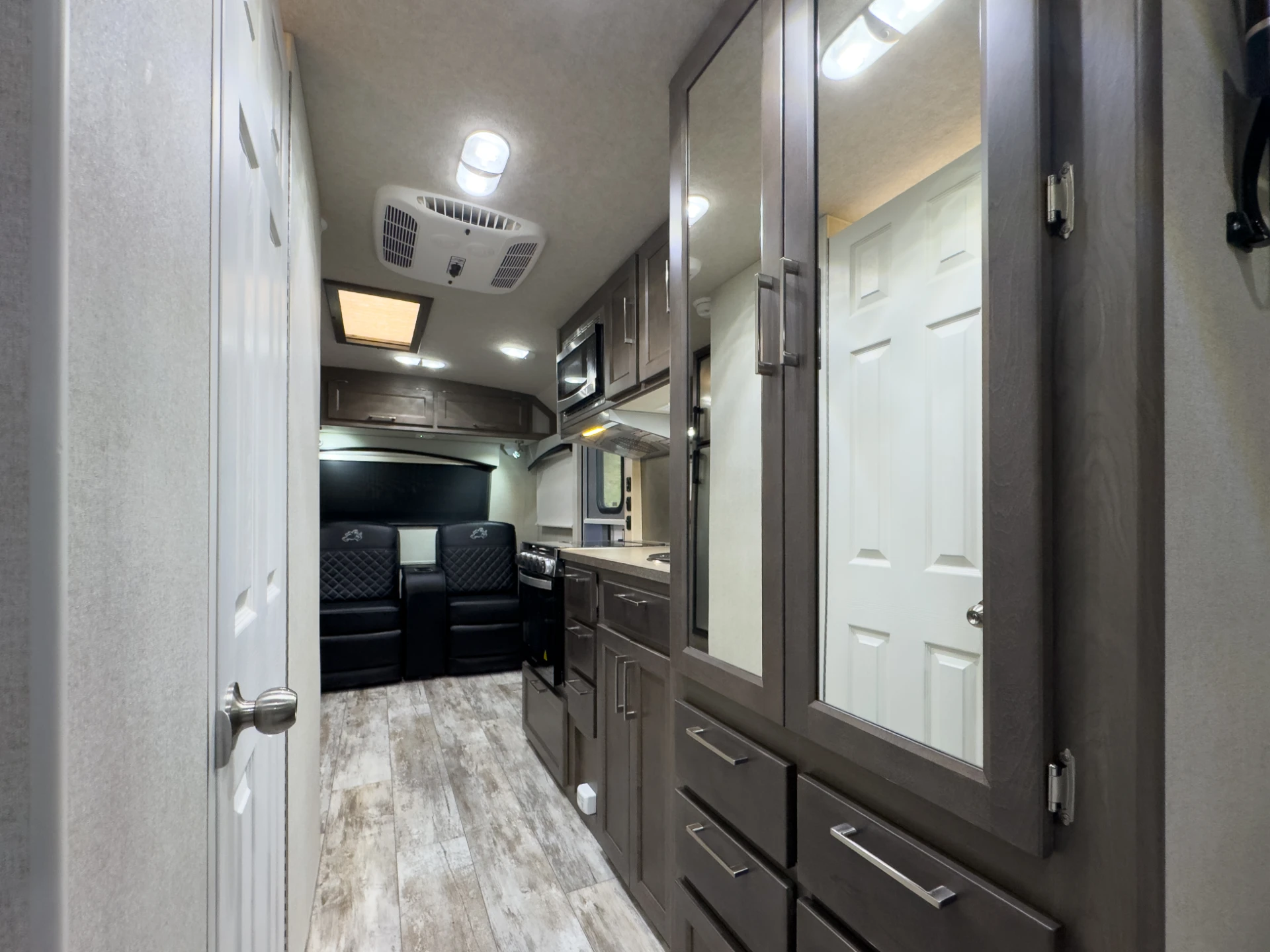

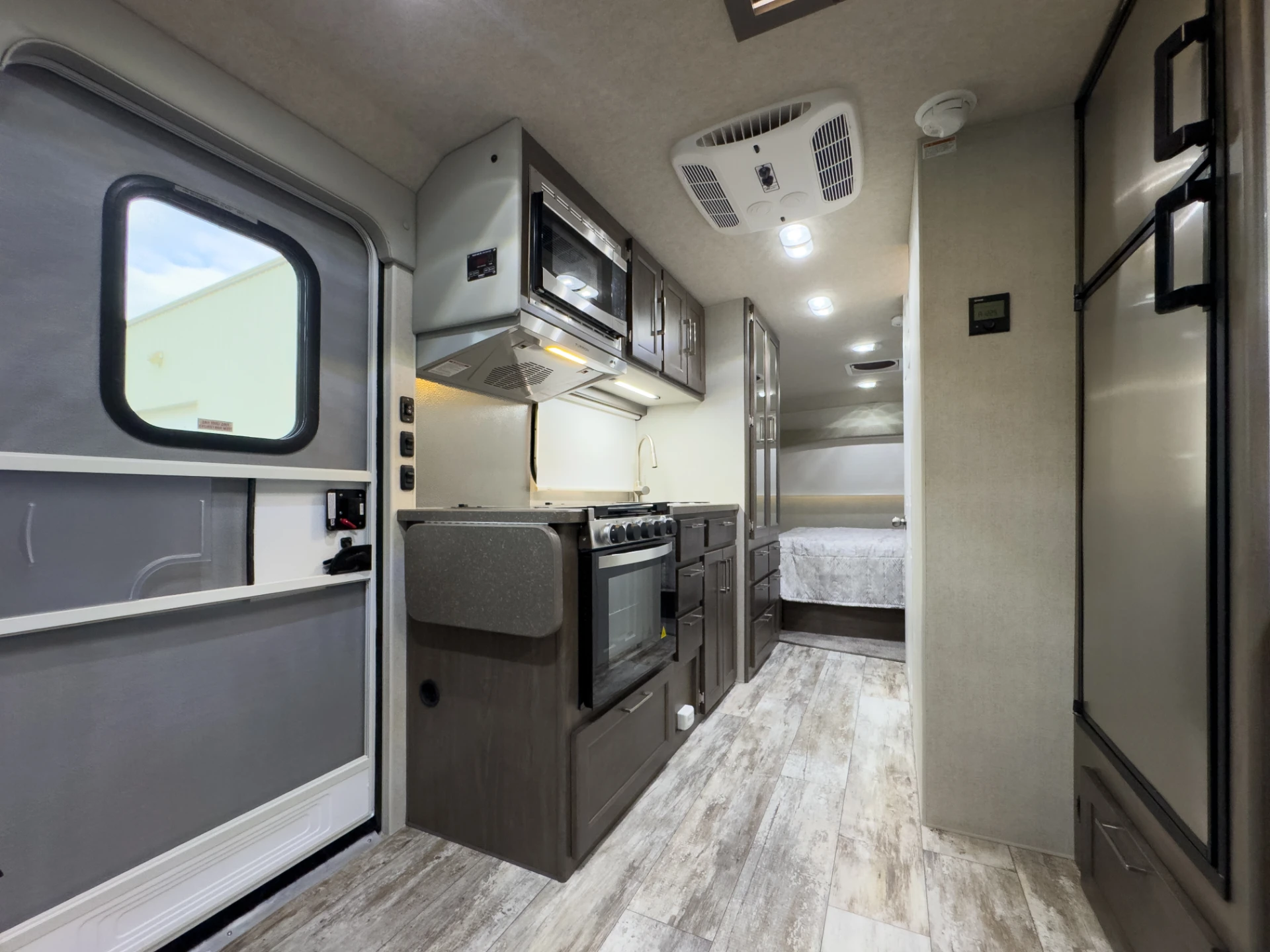

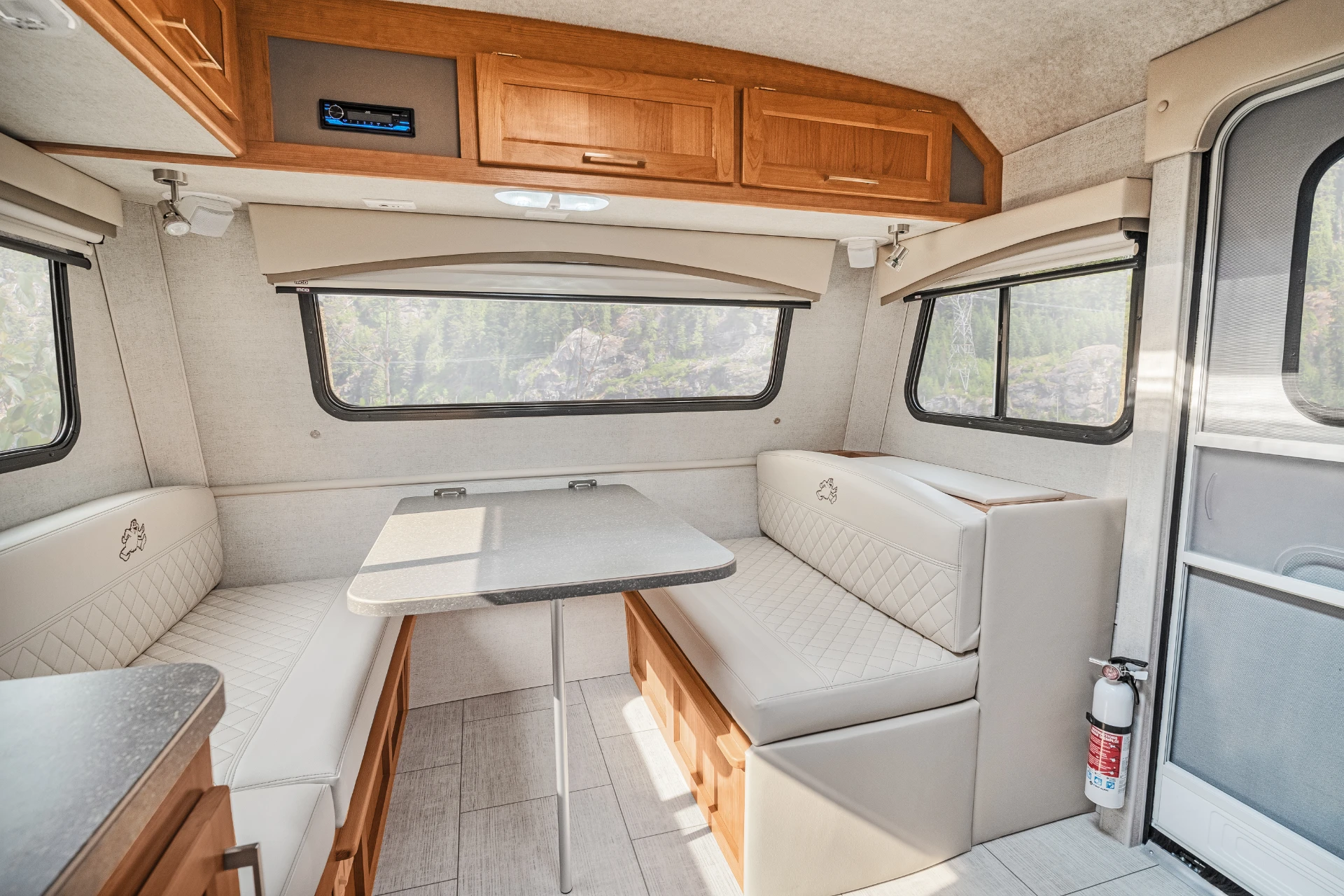

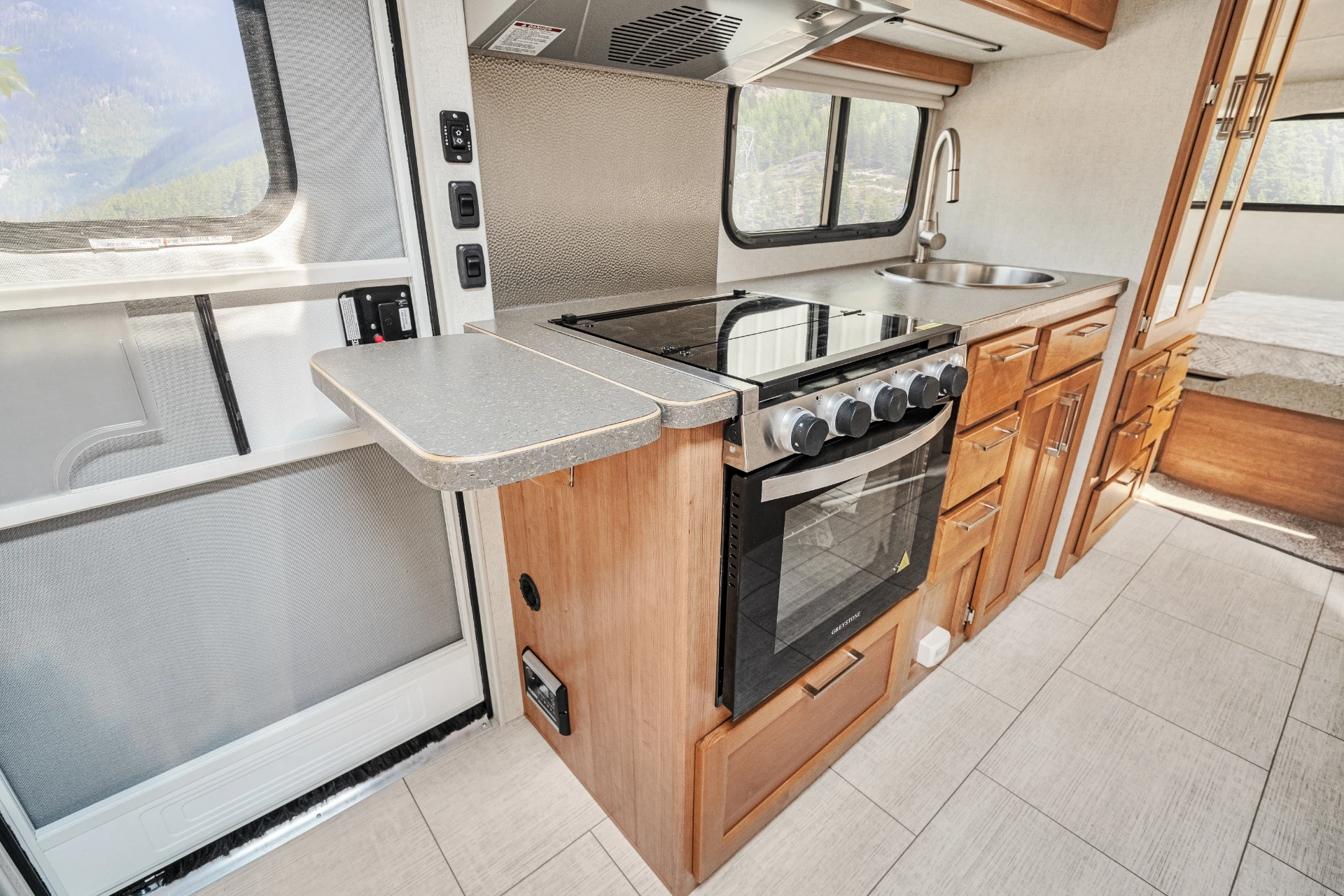

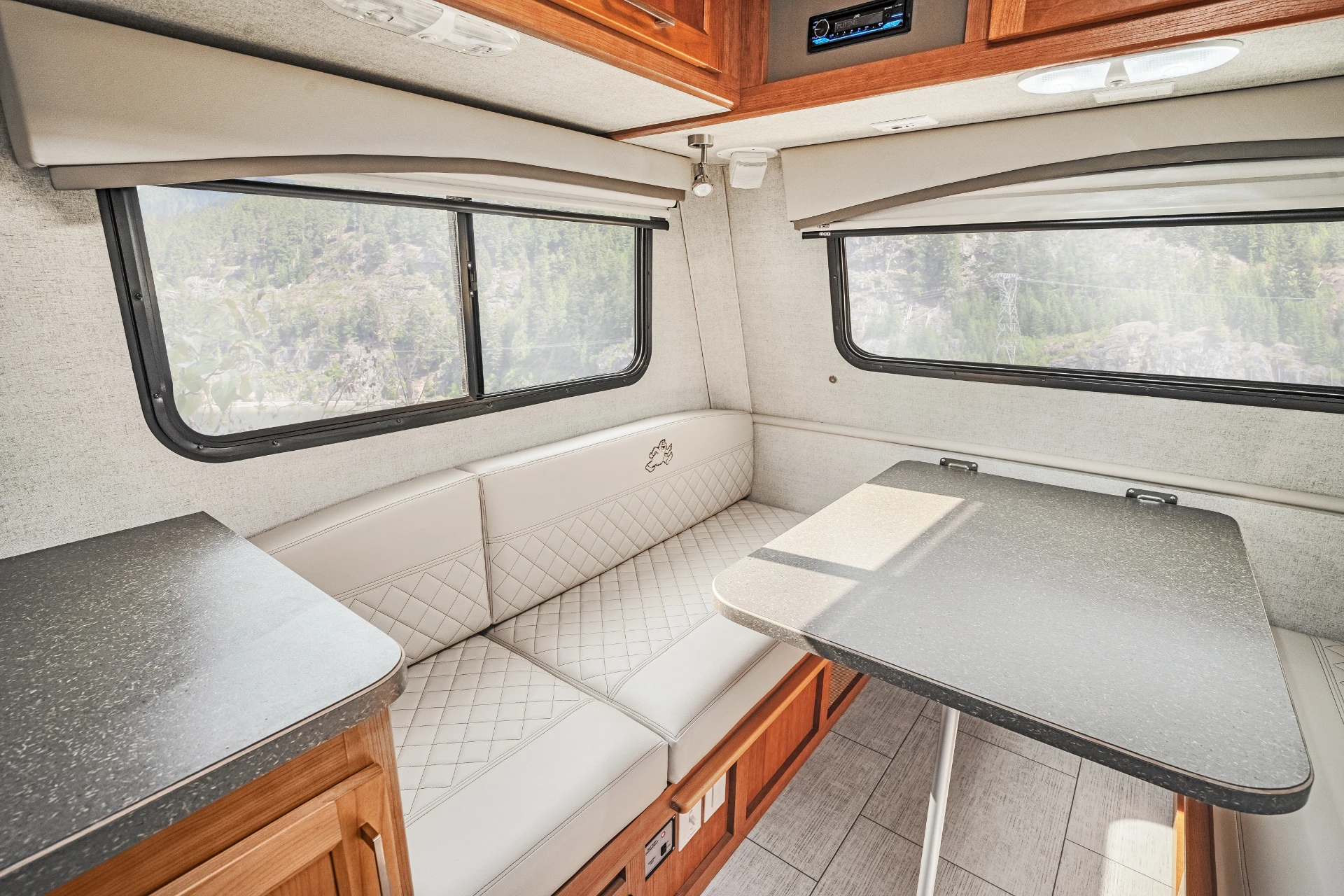

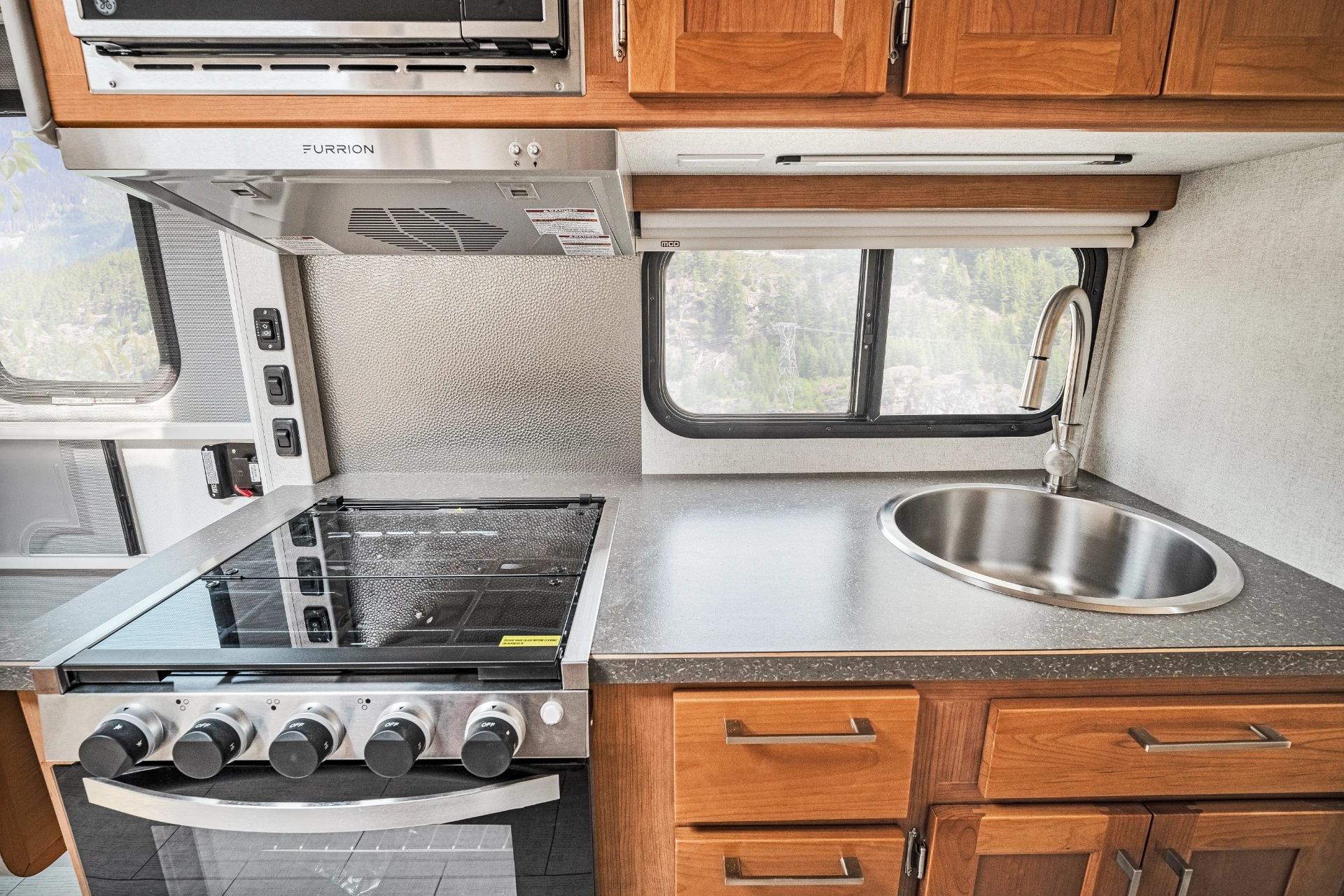

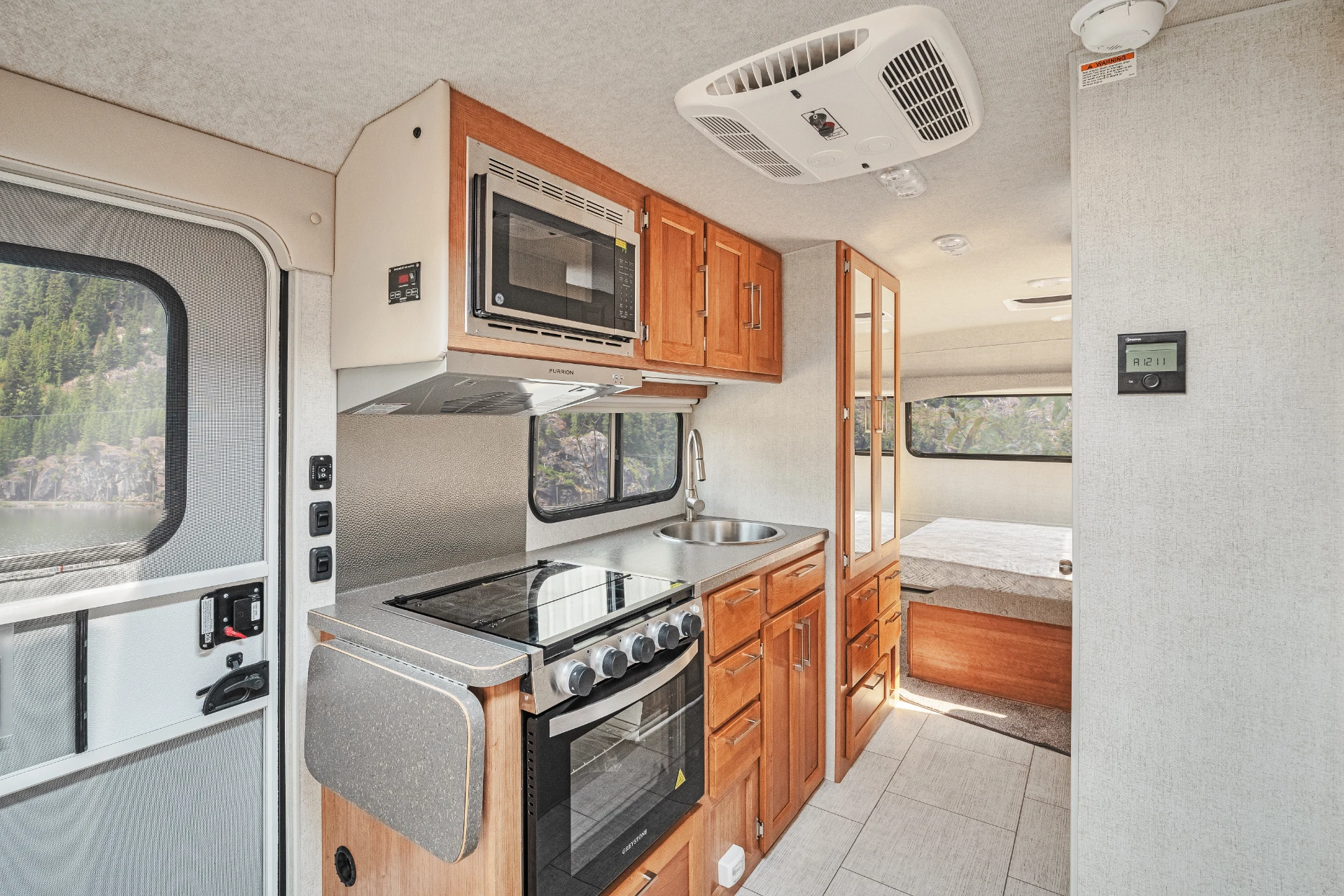

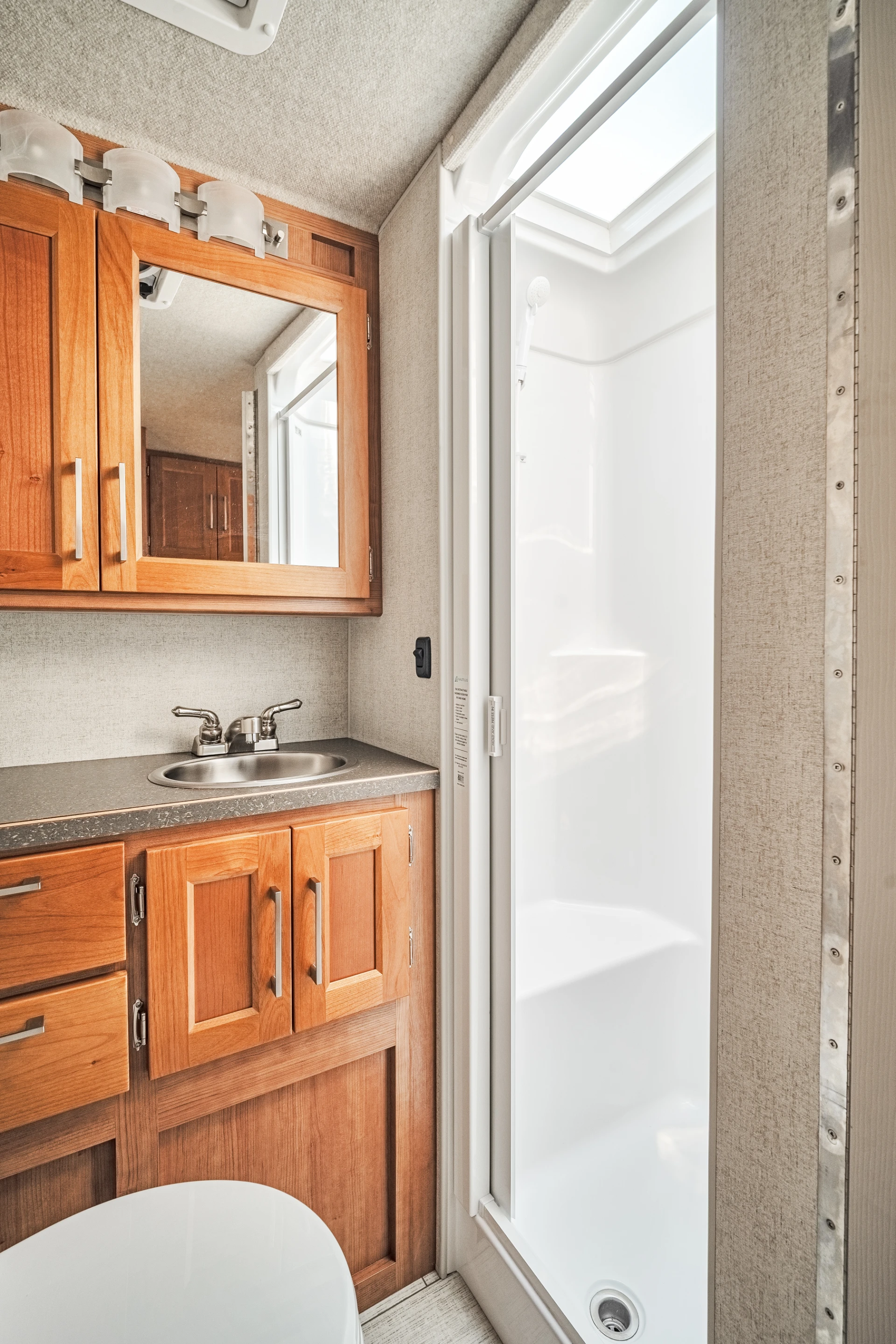

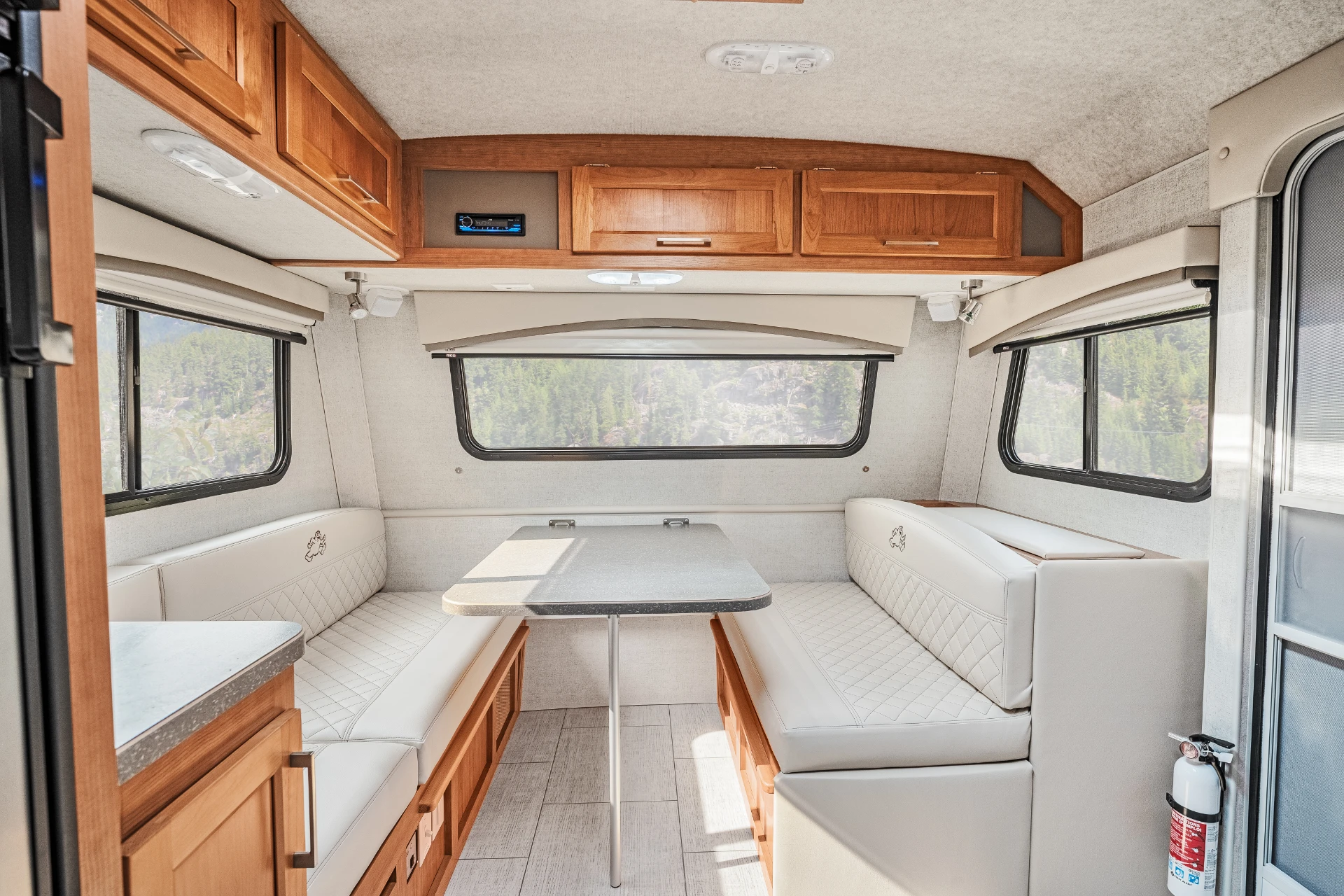

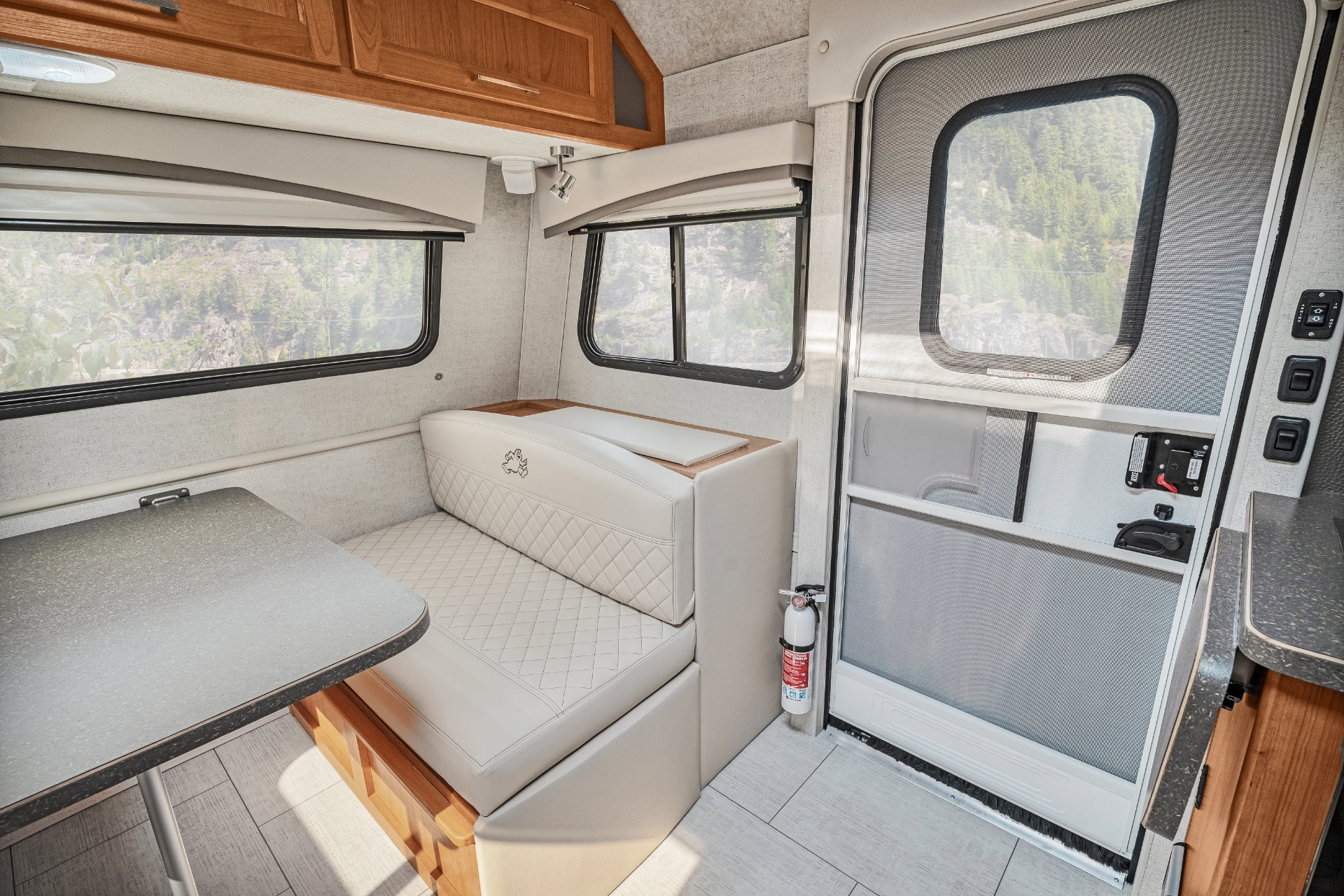

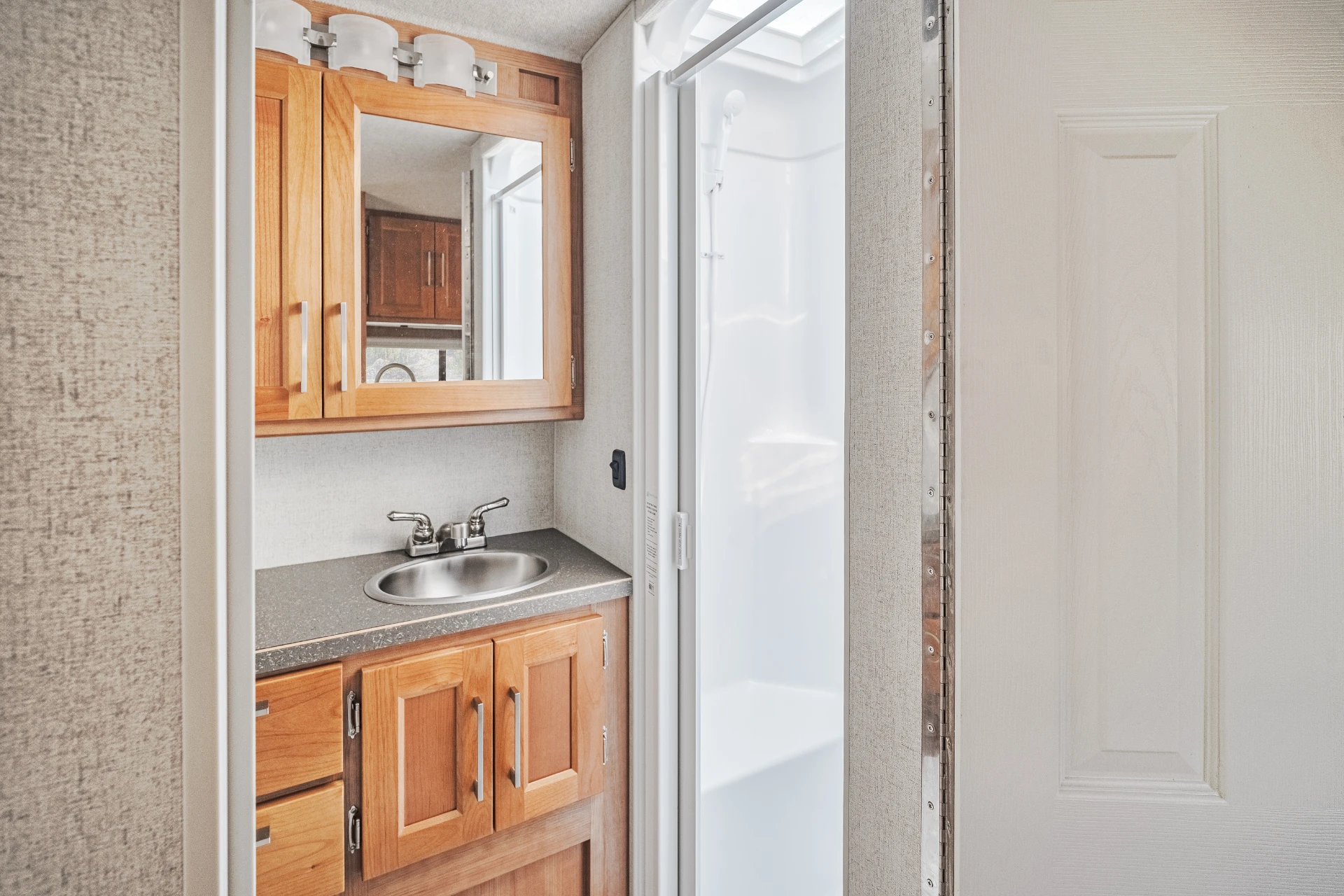

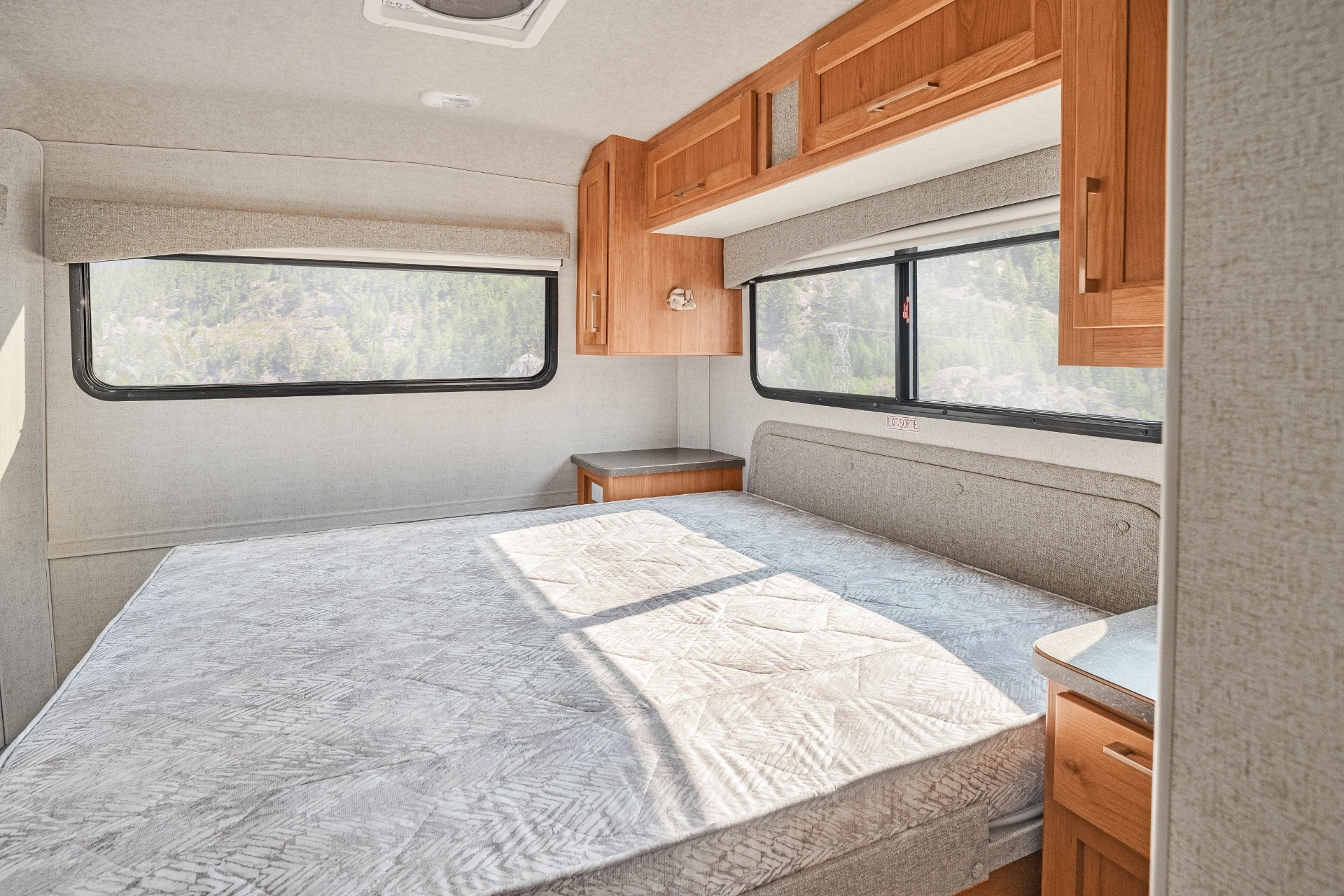

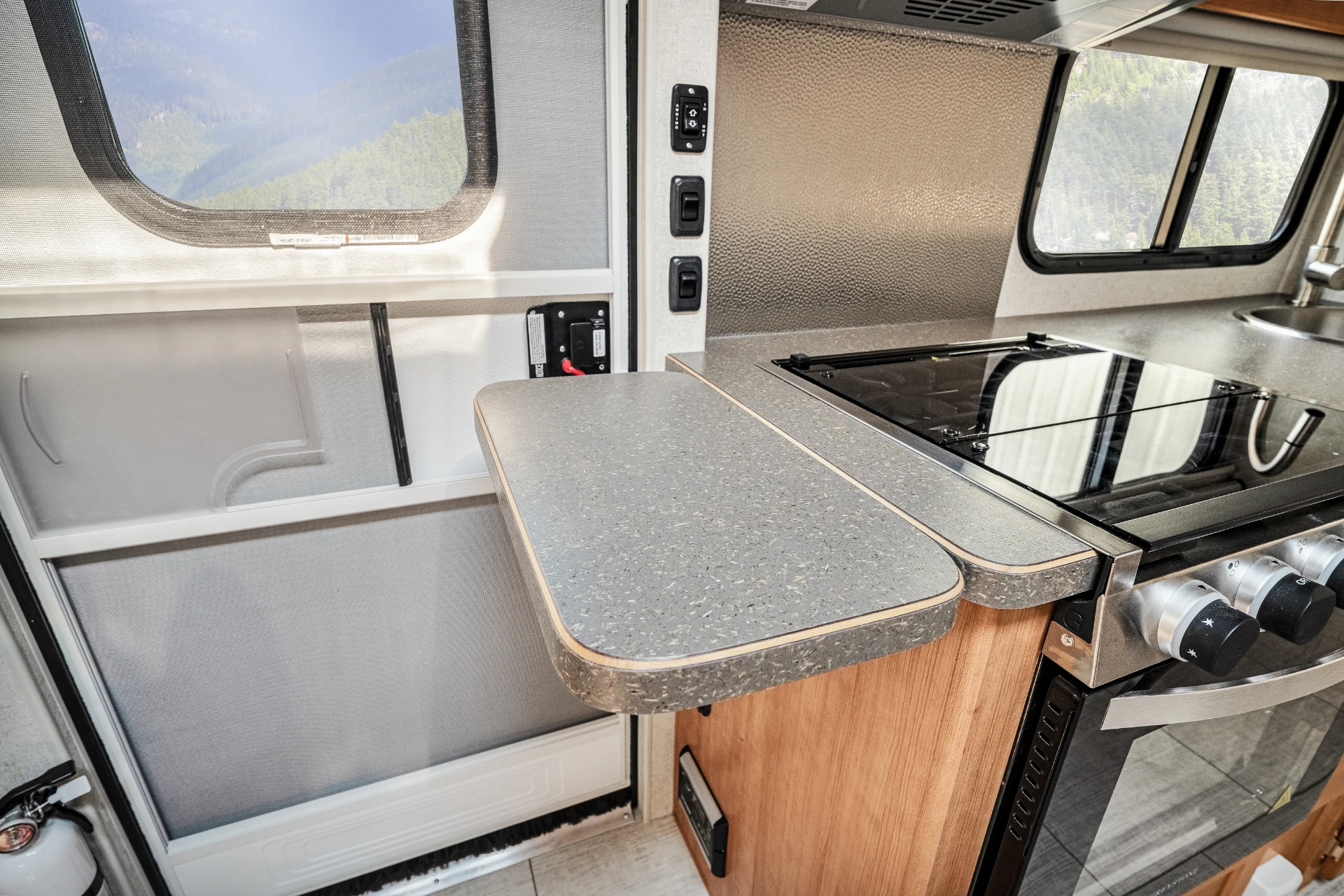

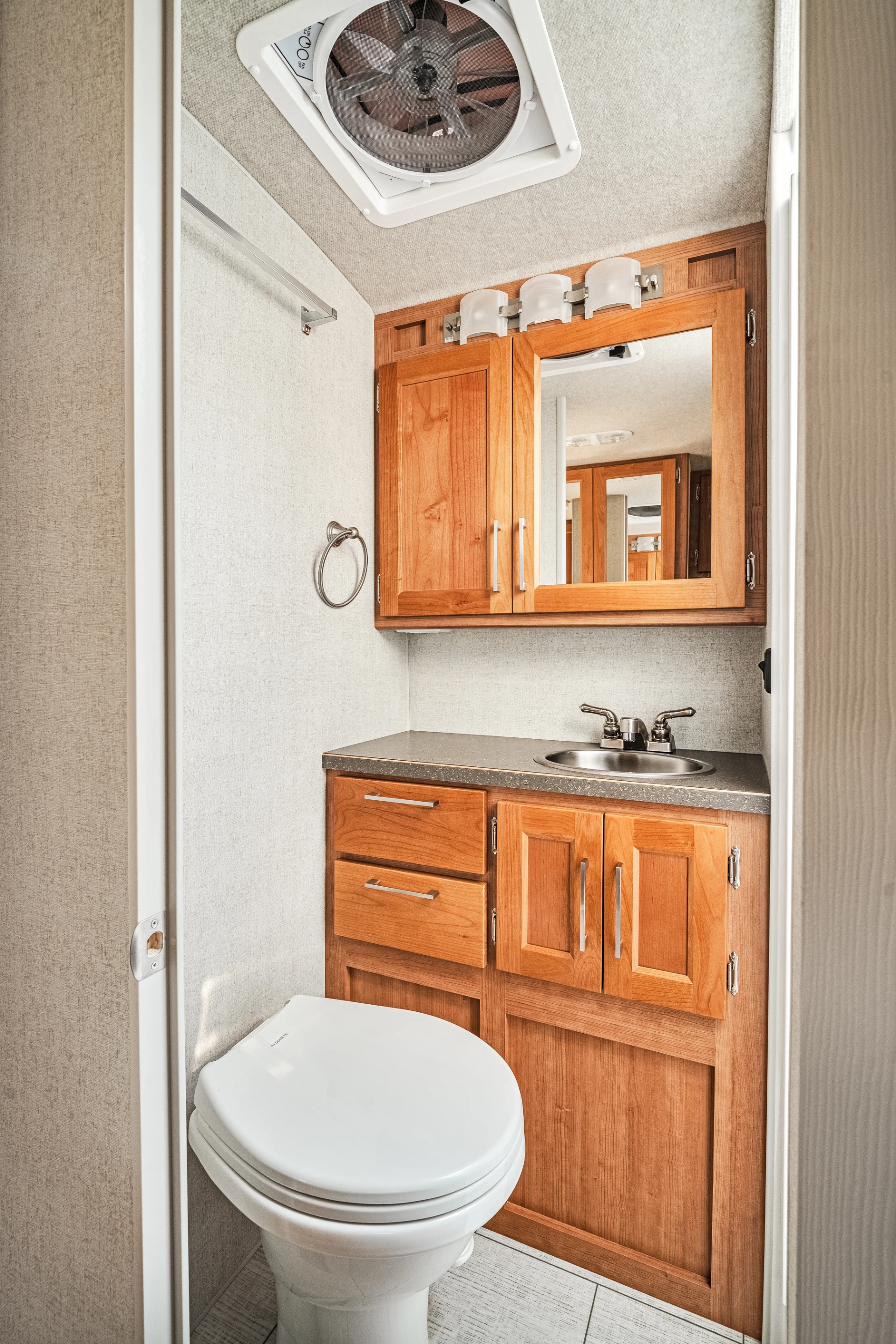

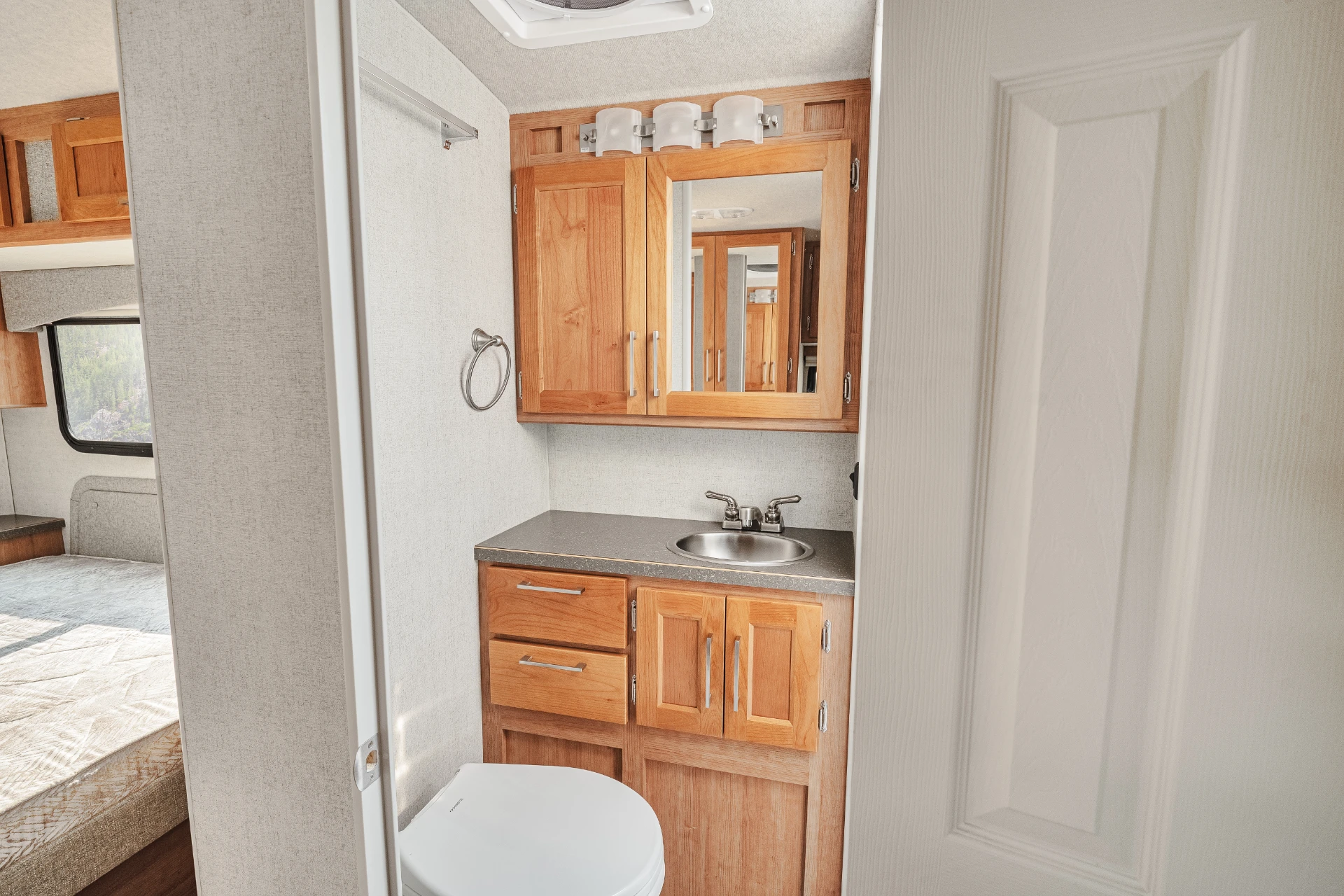

03Photo Gallery
Experience the Details
A closer look at the B25 25B25RQ.
04Specs & Equipment
Detailed specifications for 25B25RQ.
Overall Length25'-6" (7.77 m) (Does not include optional Front Cargo Box)
Overall Width8'-4" (2.54 m)
Overall Height9'-2" (2.79 m) (To top of the refrigerator vent)
Interior Height6'-4" (1.93 m)
Base Dry Weight4,863 lb (2,206 kg)
Hitch Weight610 lb (277 kg)
Axle Rating2×3,500 lb (2×1,588 kg)
GVWR7,500 lb (3,400 kg)
TiresST225/75R15
Fresh Water45 gal (171 L)
Grey Water45 gal (171 L)
Black Water45 gal (171 L)
LPG Capacity2×30 lb (2×18 L)
Water Heater6 gal (23 L)
Furnace30,000 BTU
Fridge8 cu ft (266 L)
Standard equipment included on every 25B25RQ — built in at the factory, no upgrades required.
Exterior
- Lightweight Two Piece Fiberglass Exterior Shell
- 1 1/2” High Density EPS Insulation (R8)
- Radius Corner Solar Reflective Safety Glass Thermal Pane Windows with Screens
- Folding Assist Handle
- Aluminum Covered Rear Bumper
- E-Z Lube Wide Track Axle (3" 6,000 Lbs) with Self Adjusting Electric Brakes
- Spare Tire and Carrier
- Aluminum Wheels
- Continental Tire Kit
- Break Away Switch
- Stabilizer Jacks (front & rear)
- Power Tongue Jack
- LED Exterior Clearance and Directional Lighting
- Molded Fiberglass Rock Guard with Gas Struts

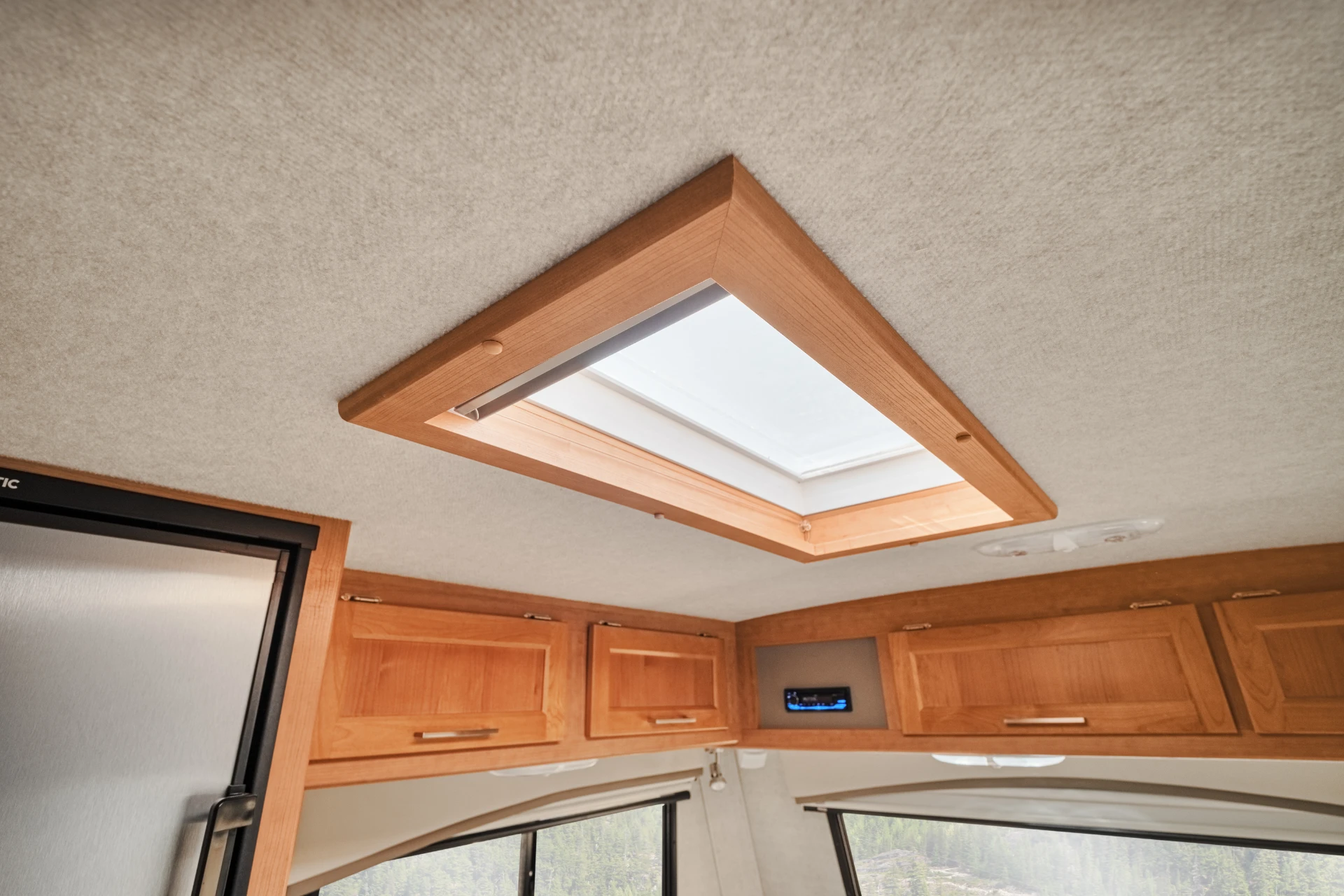

- Skylight in Living Room with Pleated Shade
- Ladder
- Solar System - 400 Watt solar panel with charge controller
- Electric 18' Awning
- Molded Fibreglass Propane Bottle Cover
- Dual 30 lb Propane Tanks with Auto Changeover & OPD Valves
- Folding 3-Step
Interior
- Washable Vinyl Wall Panelling
- Marine Quality Fabric Headliner

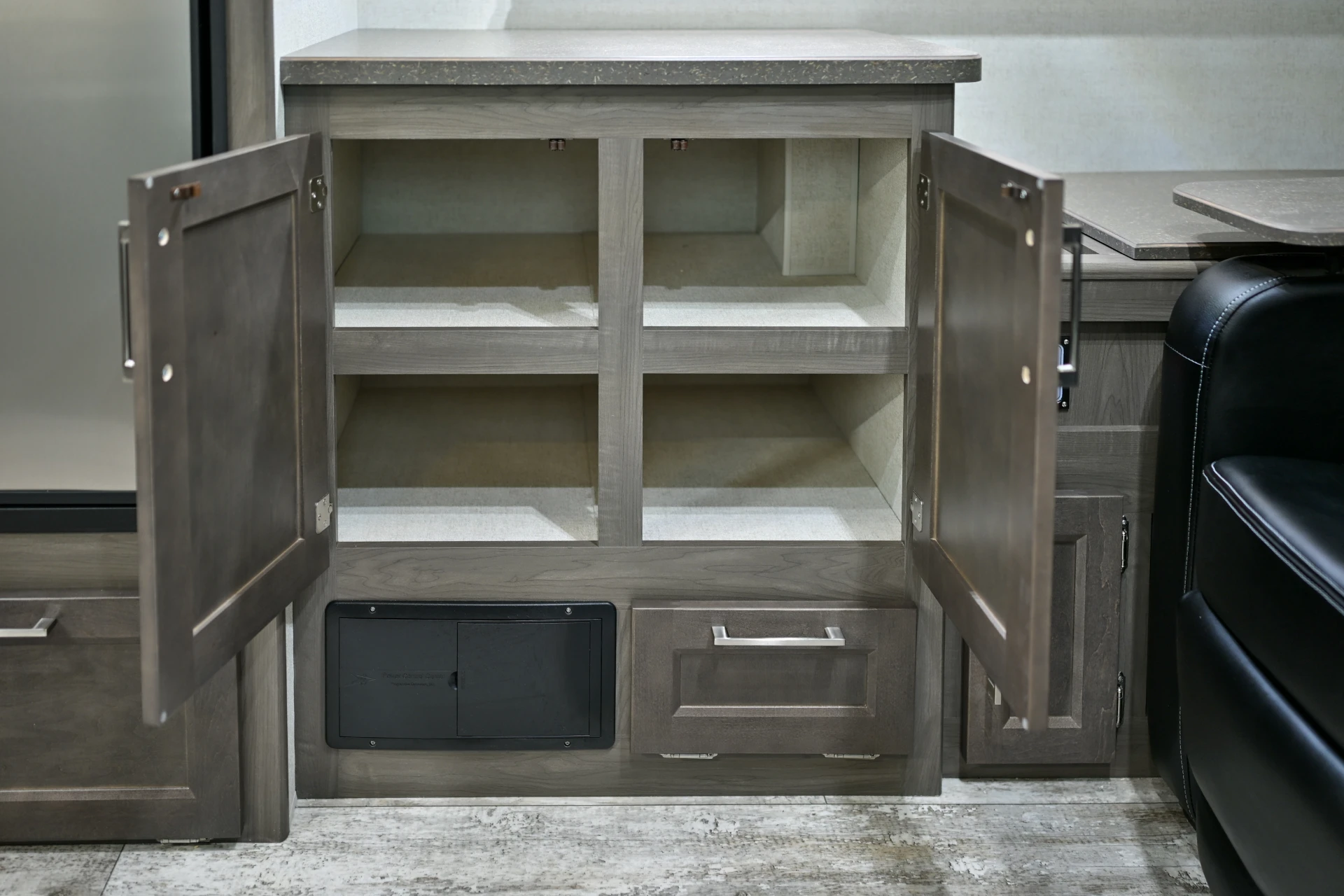

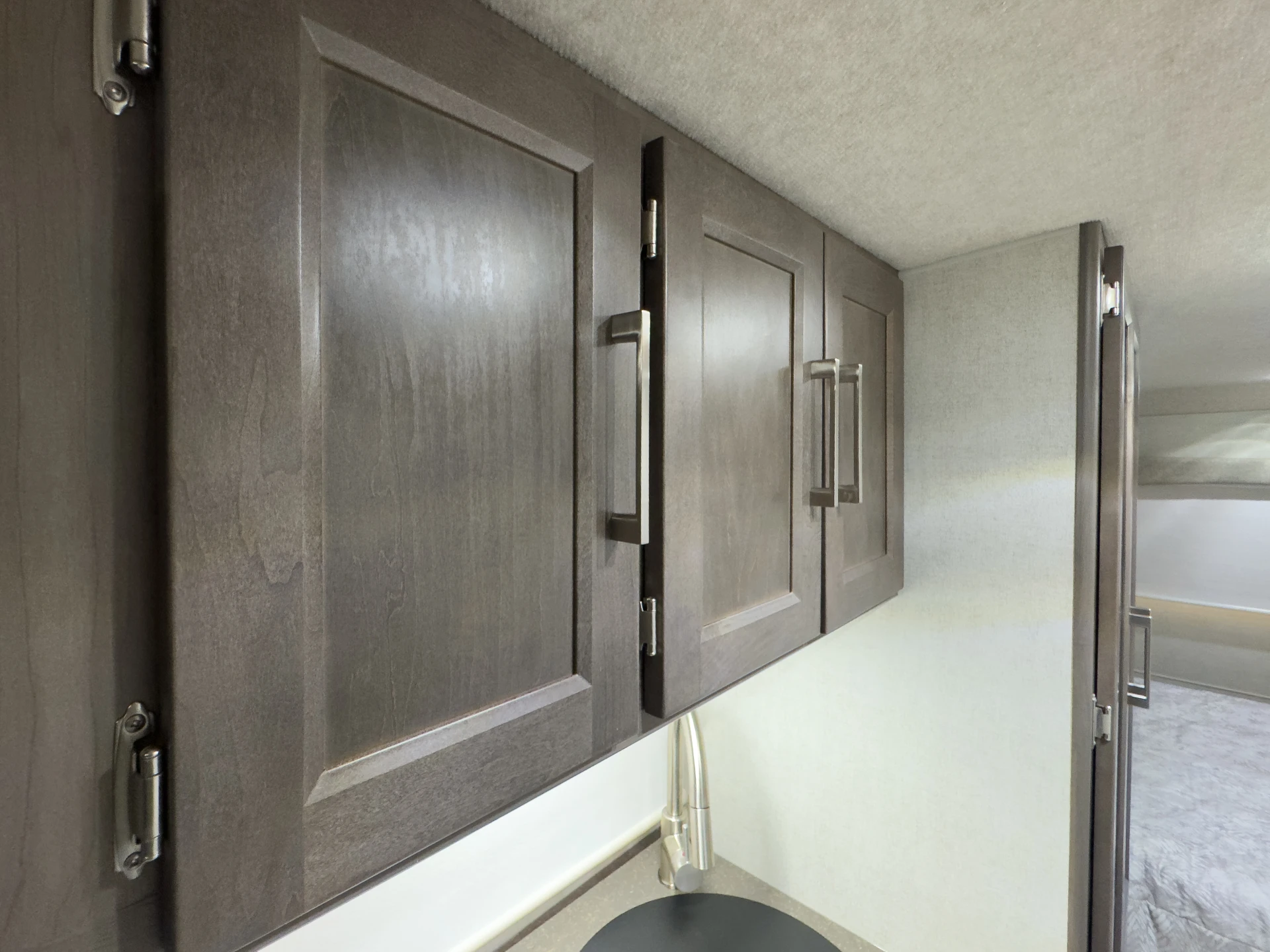

- Face Framed Double Screwed Cabinets

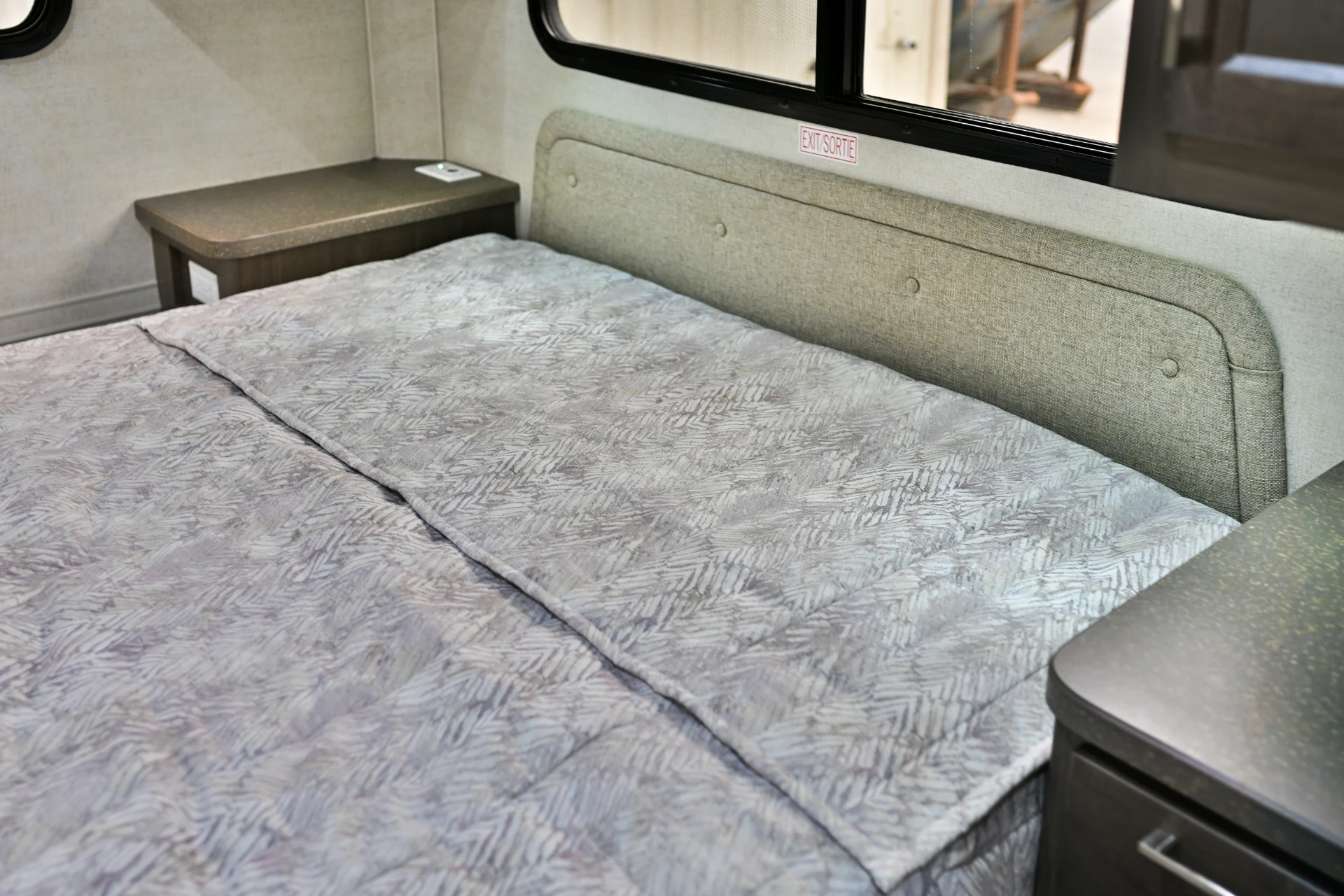

- Spring Filled Foam Mattress
- Surged Carpet in Bedroom

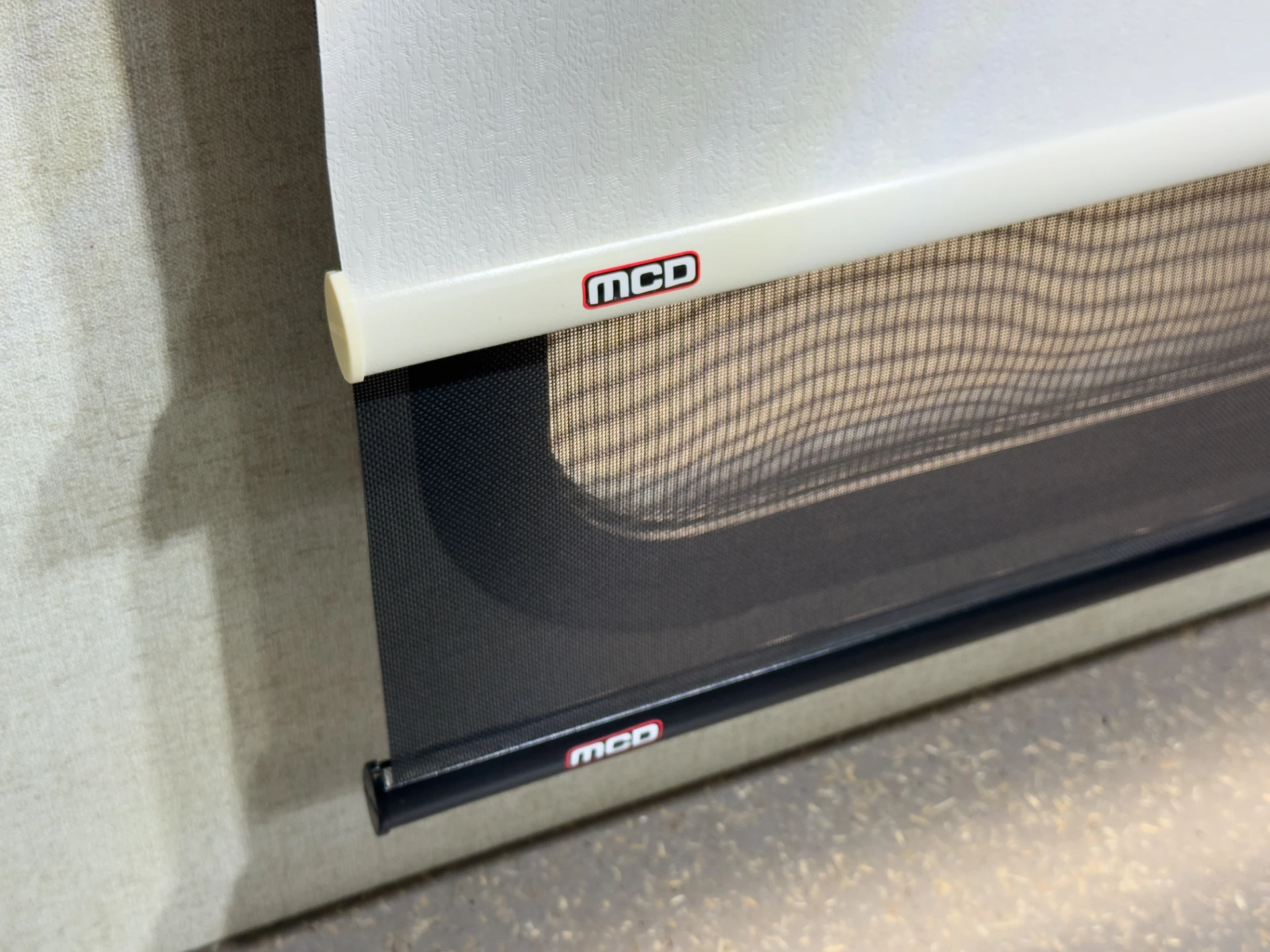

- Roller Shades

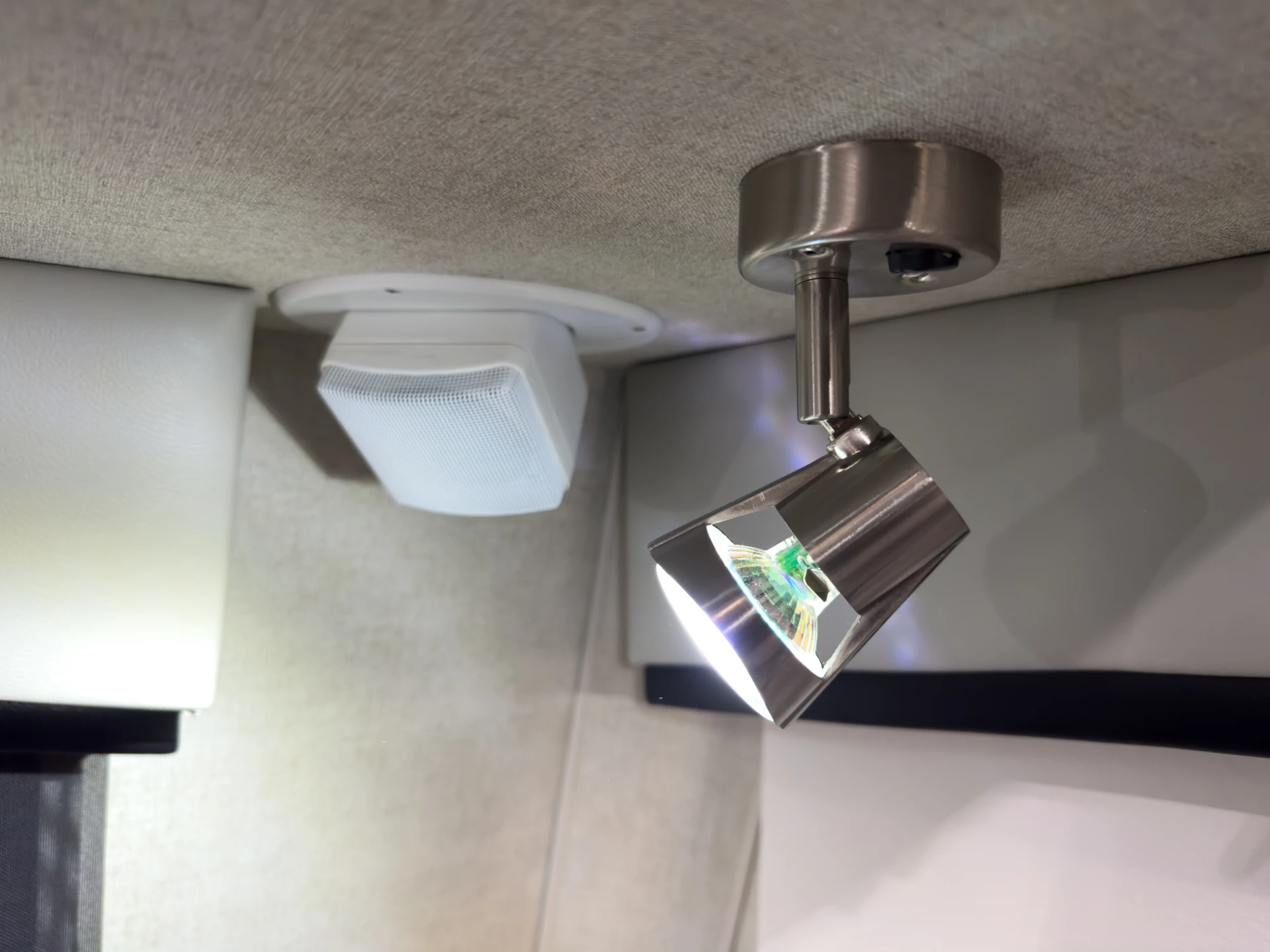

- LED Lighting
- LCD 12 Volt TV Prep Package
- Electrical Battery Disconnect
Electrical
- Electrical 120 VAC / 30 Amp Service / 45 Amp DC Power Converter with Battery Charger
- Pre-wired for Roof Air Conditioner
- Power Fan in Bathroom

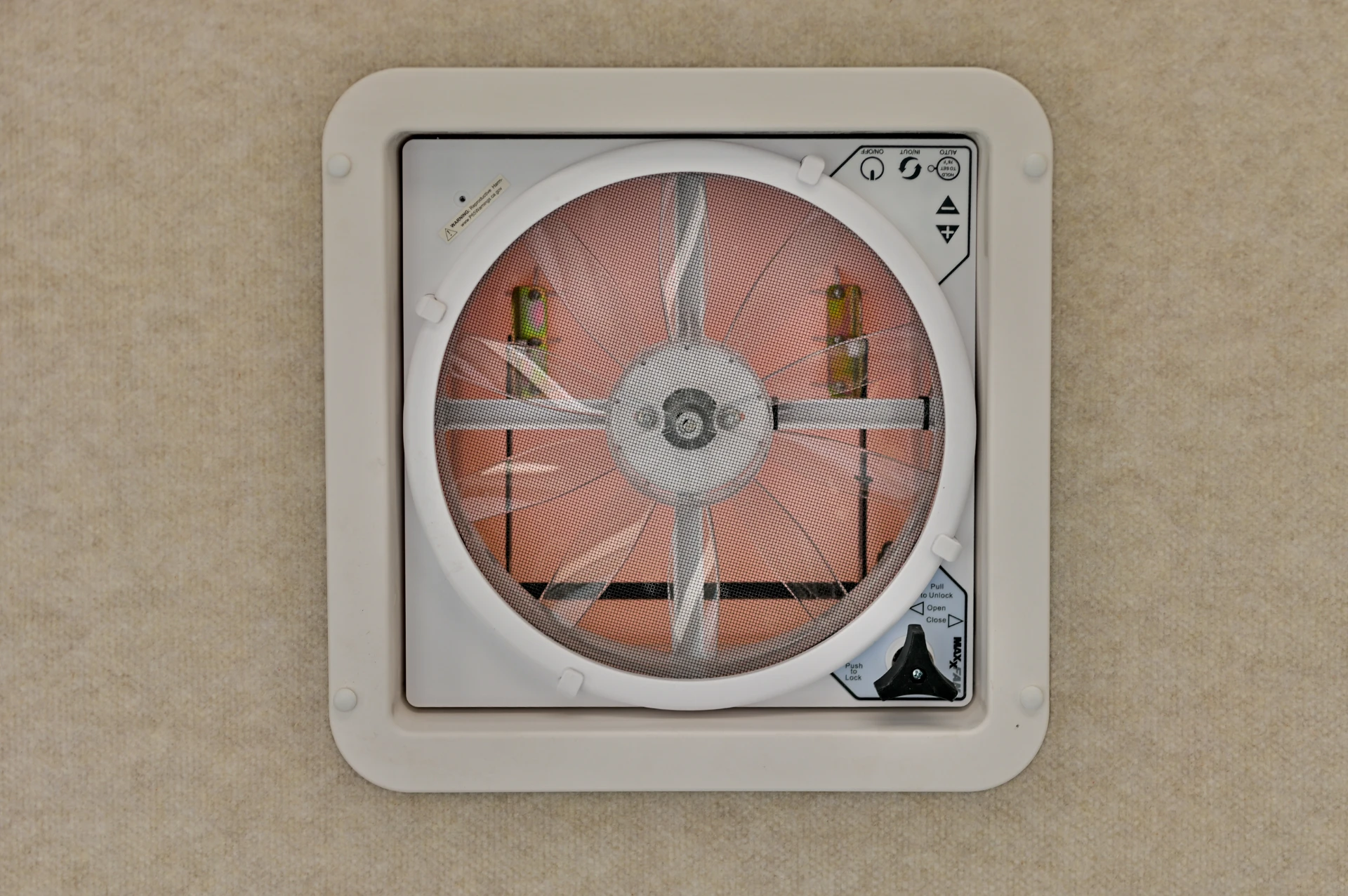

- Maxxair Fan (choice of location)
- Battery Ready
- Porch, Hitch and Roadside Lights
- Detachable 30 Amp Power Cord
Safety

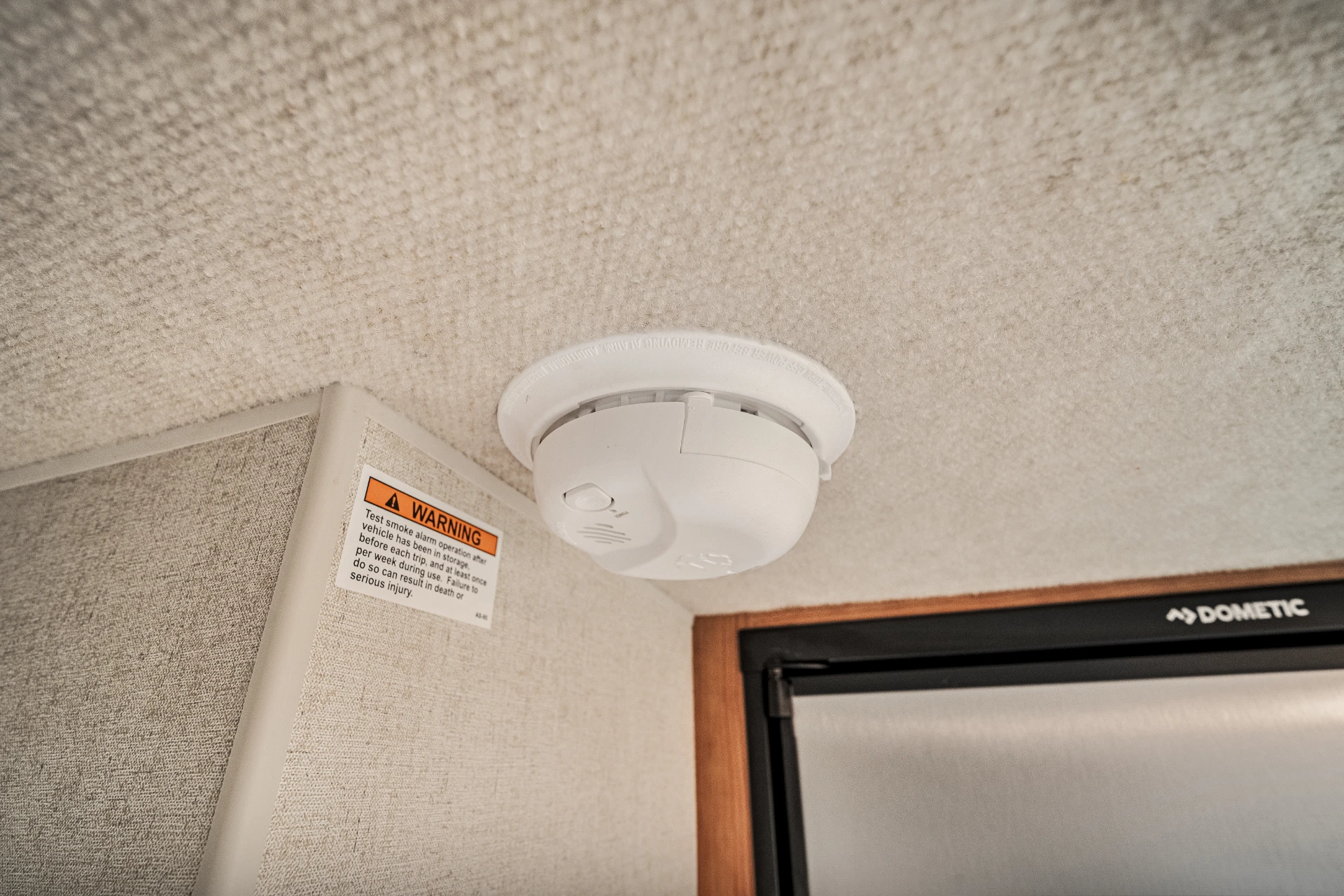

- Smoke, Carbon Monoxide and Propane Detectors
- Fire Extinguisher
- Emergency Egress Window
Kitchen & Appliances

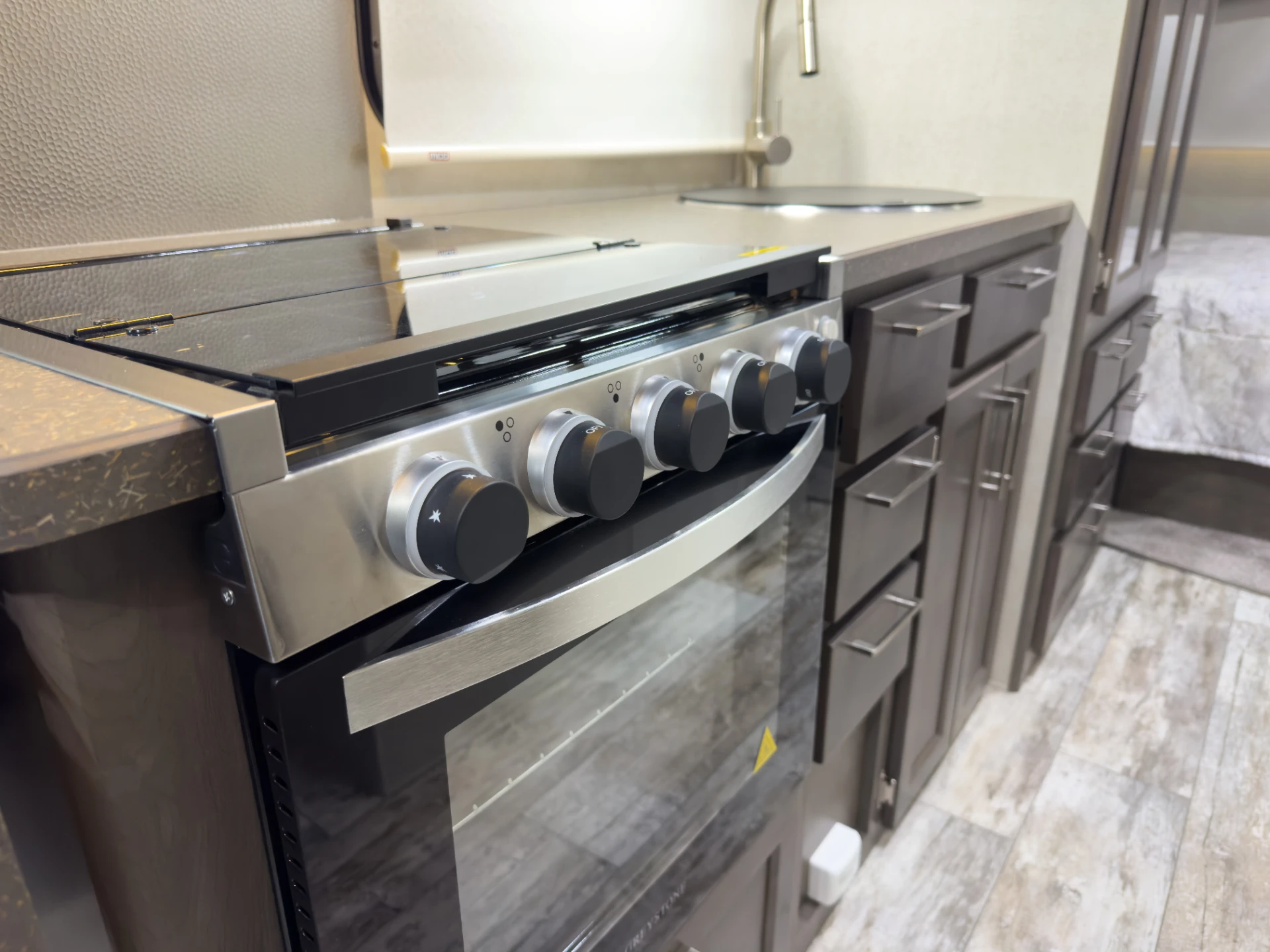

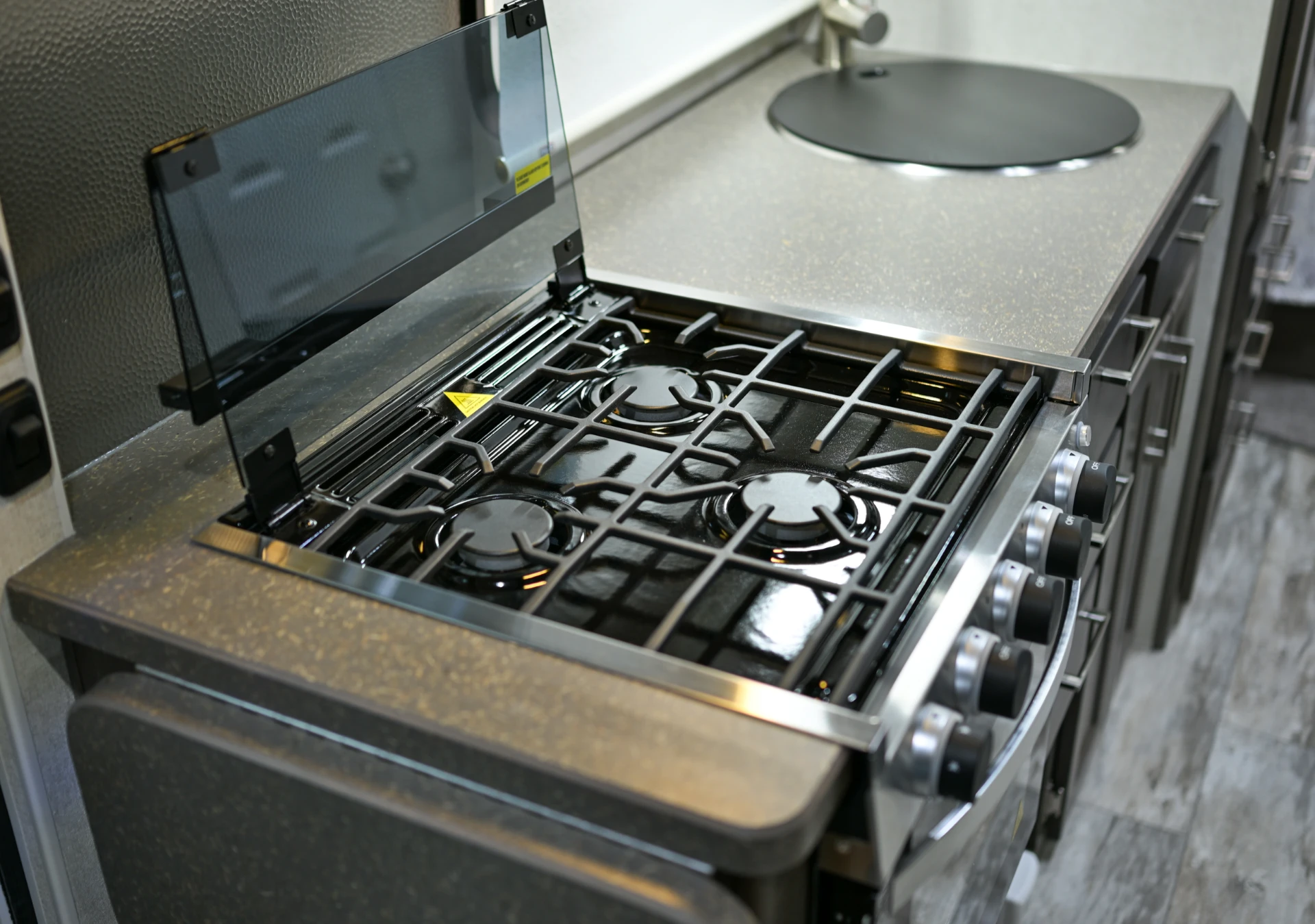

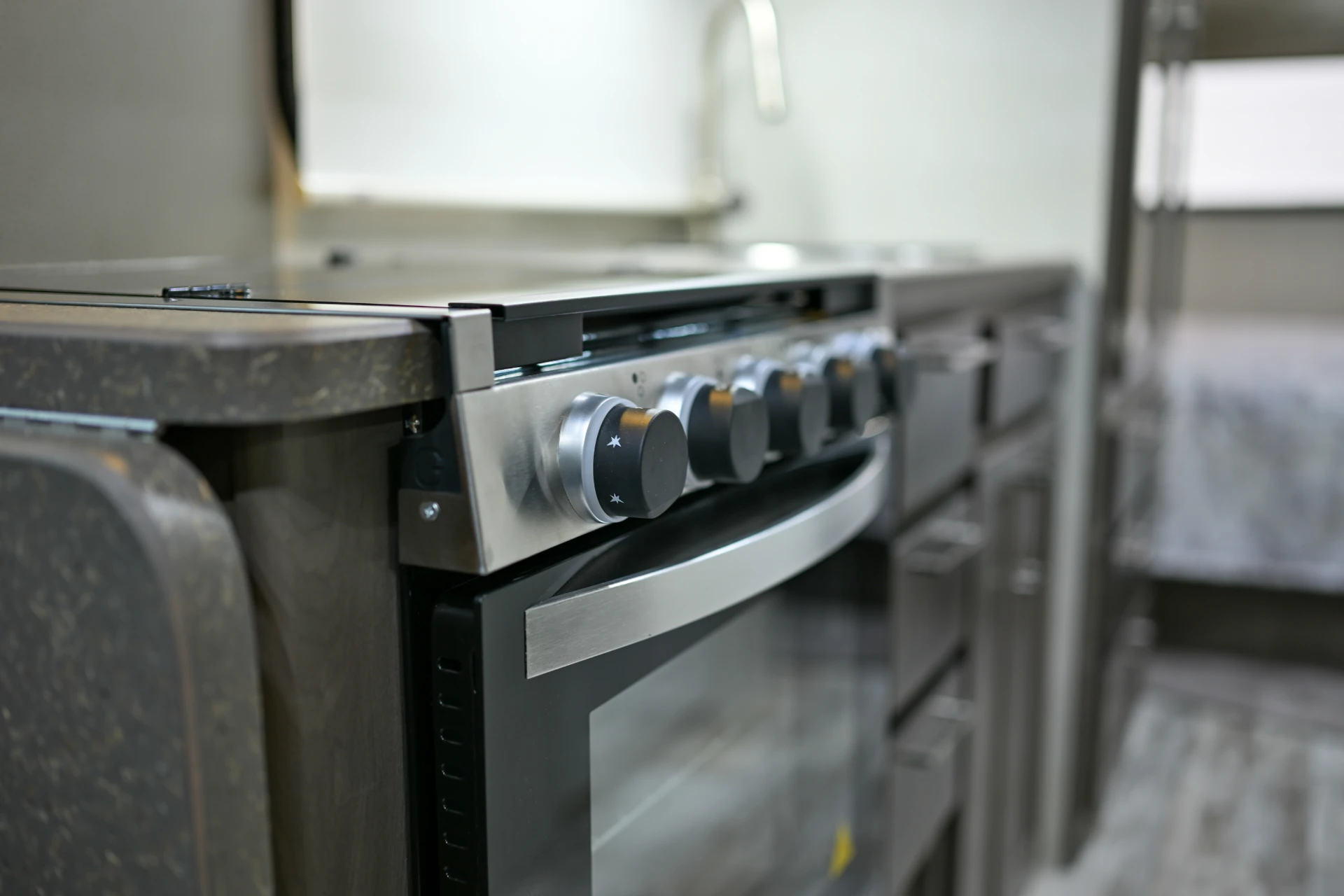

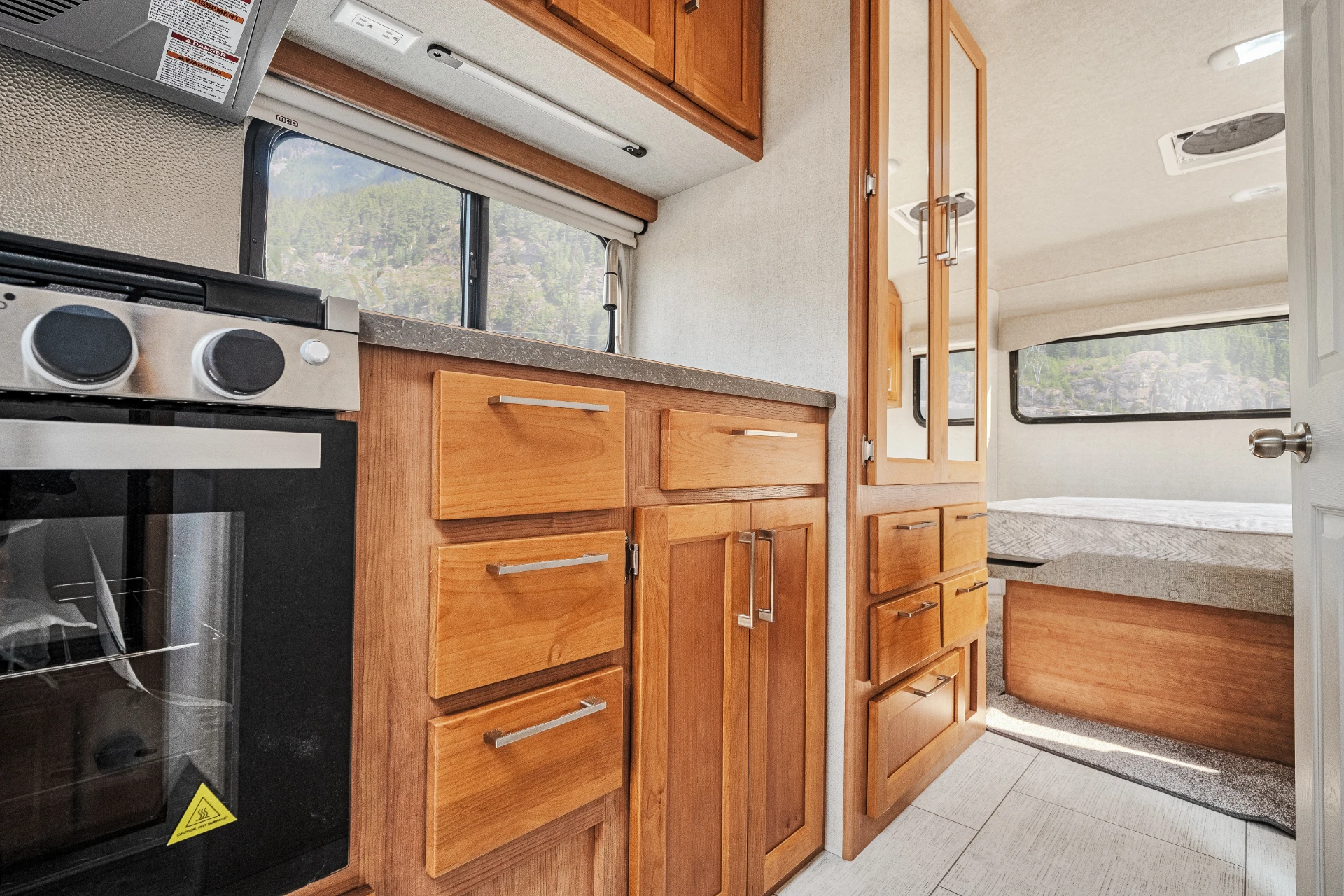

- Stainless Steel Oven and Cooktop with Glass Cover
- 12 Volt Range Hood
- 30,000 BTU furnace

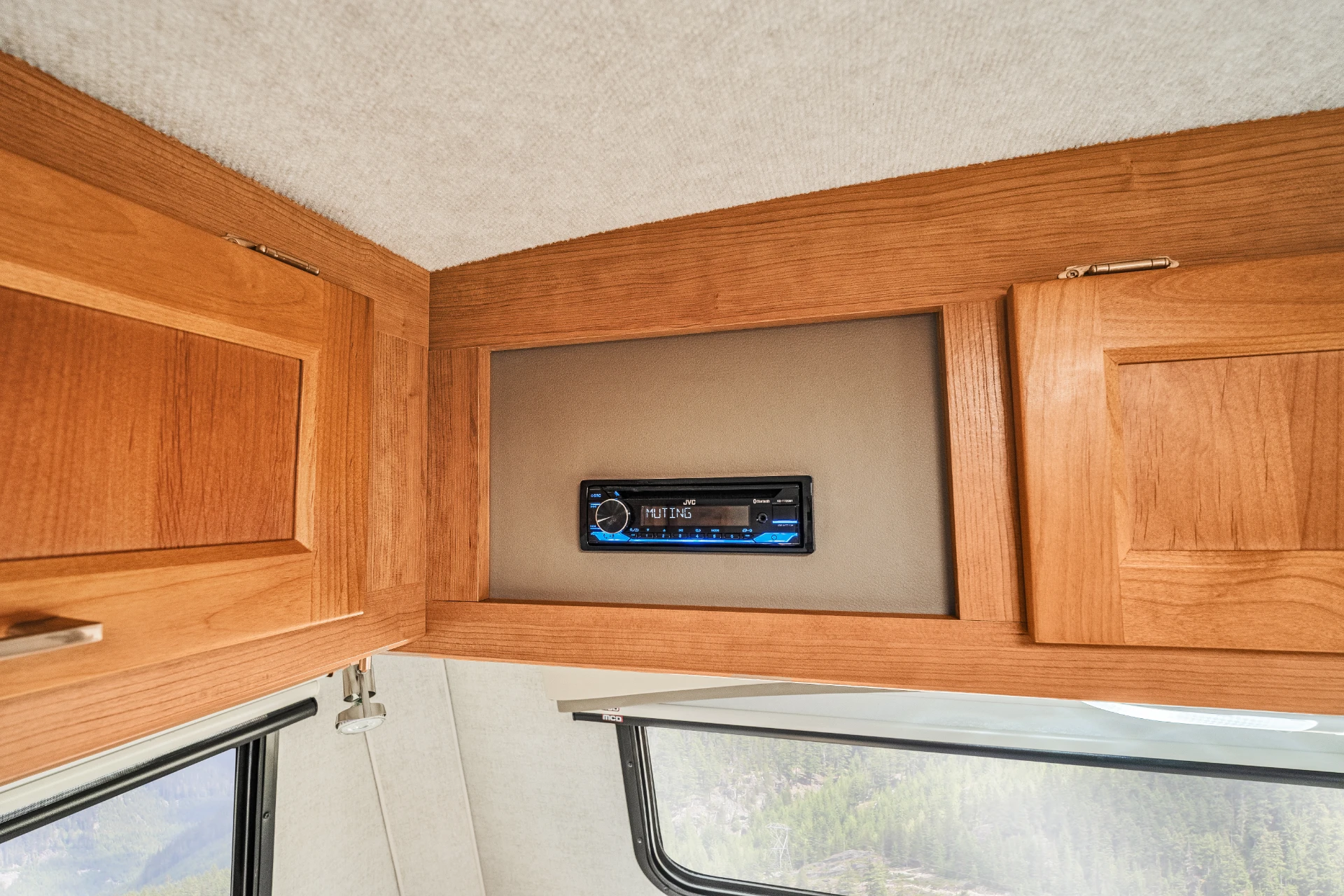

- Stereo AM/FM CD Player (Satellite Ready)

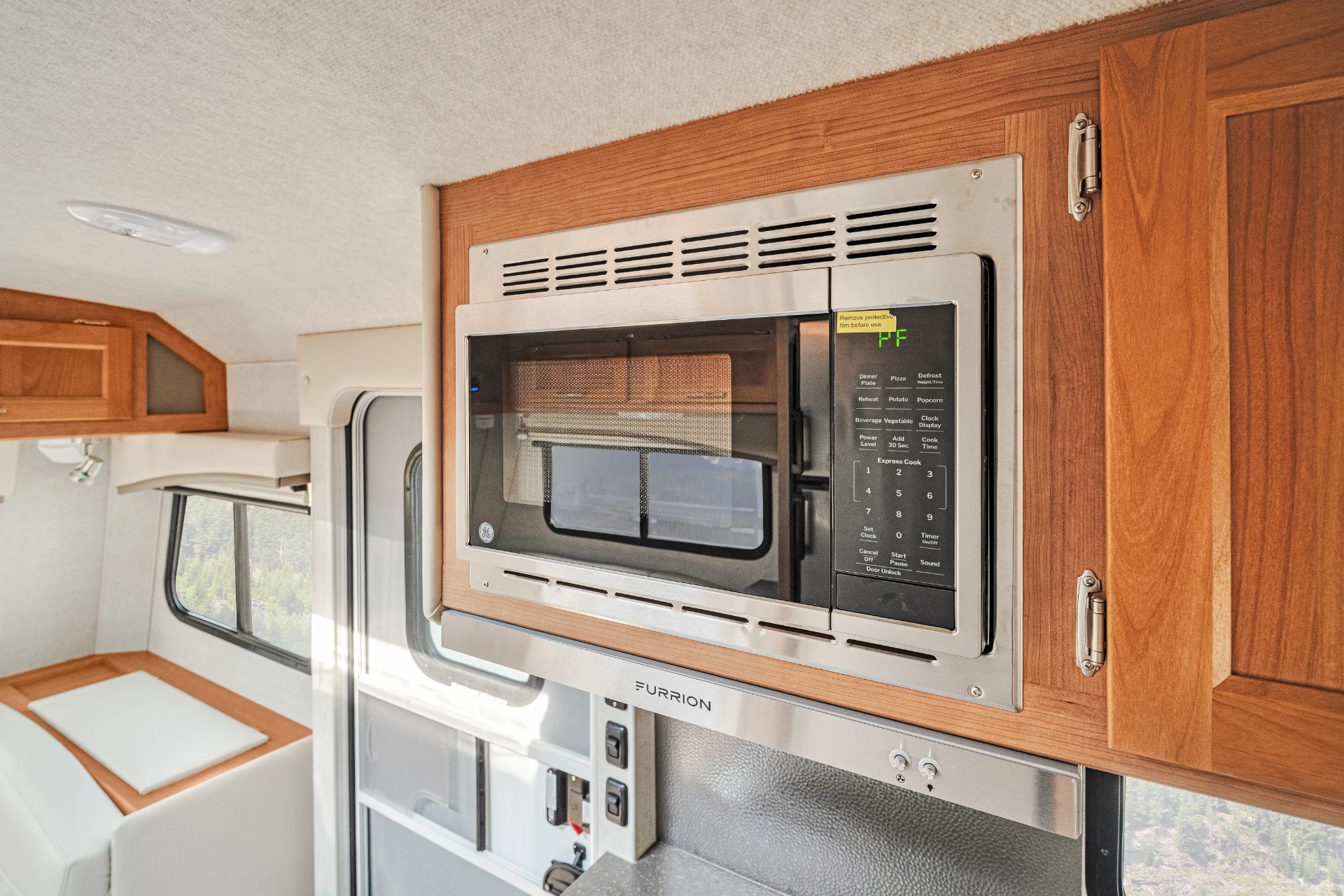

- Stainless Steel Microwave Oven (9 cu ft)
- Monitor Panel (See Level)

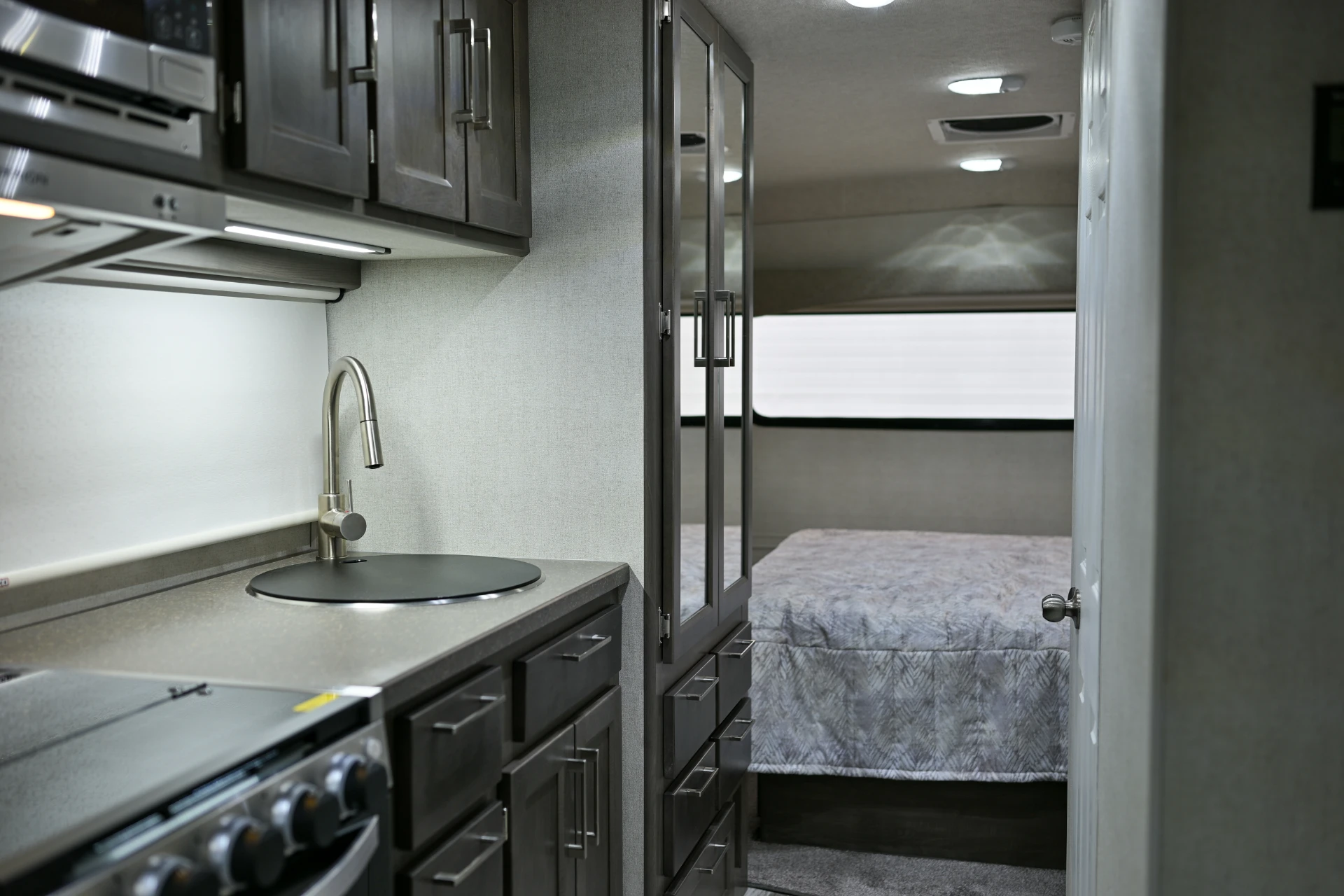

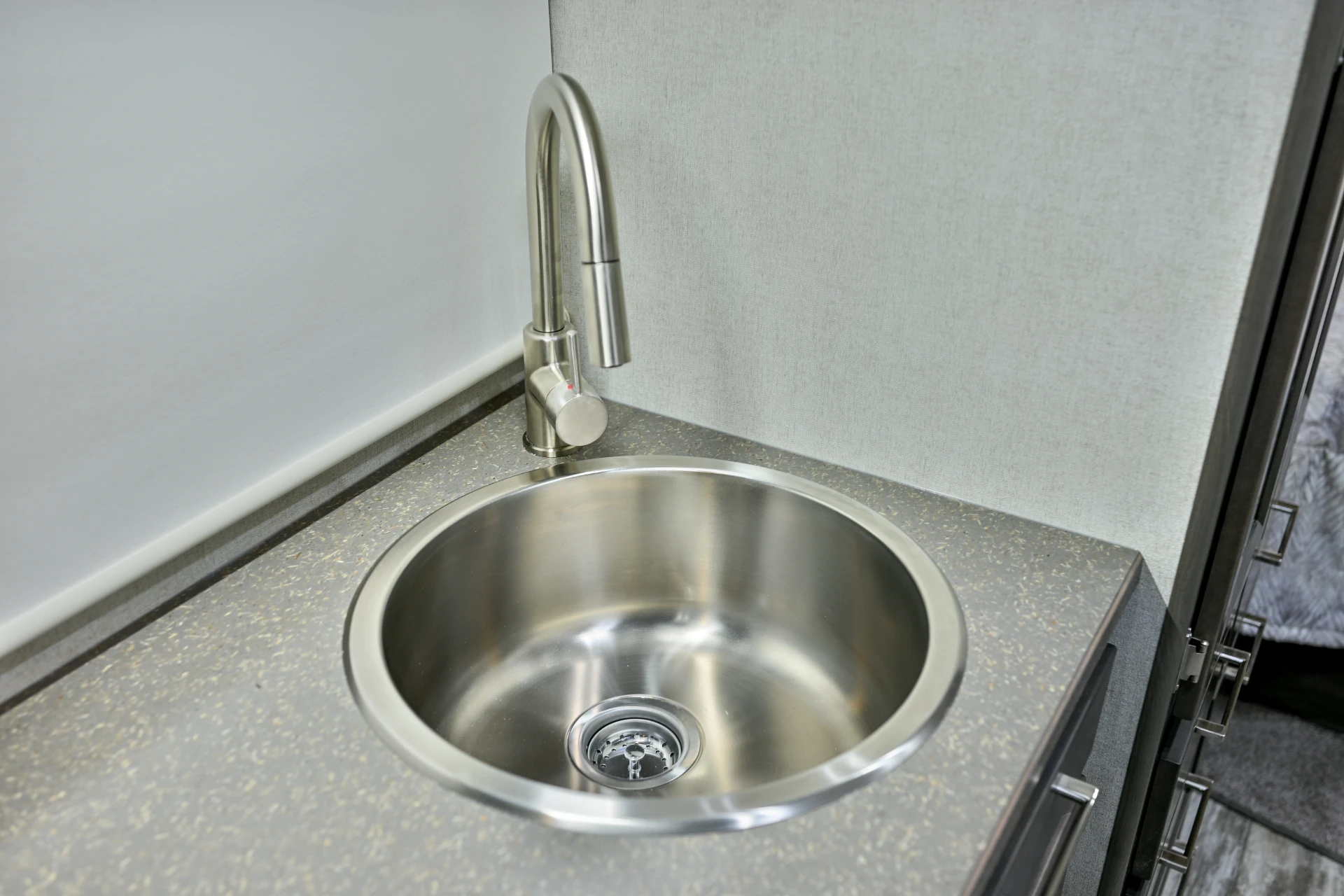

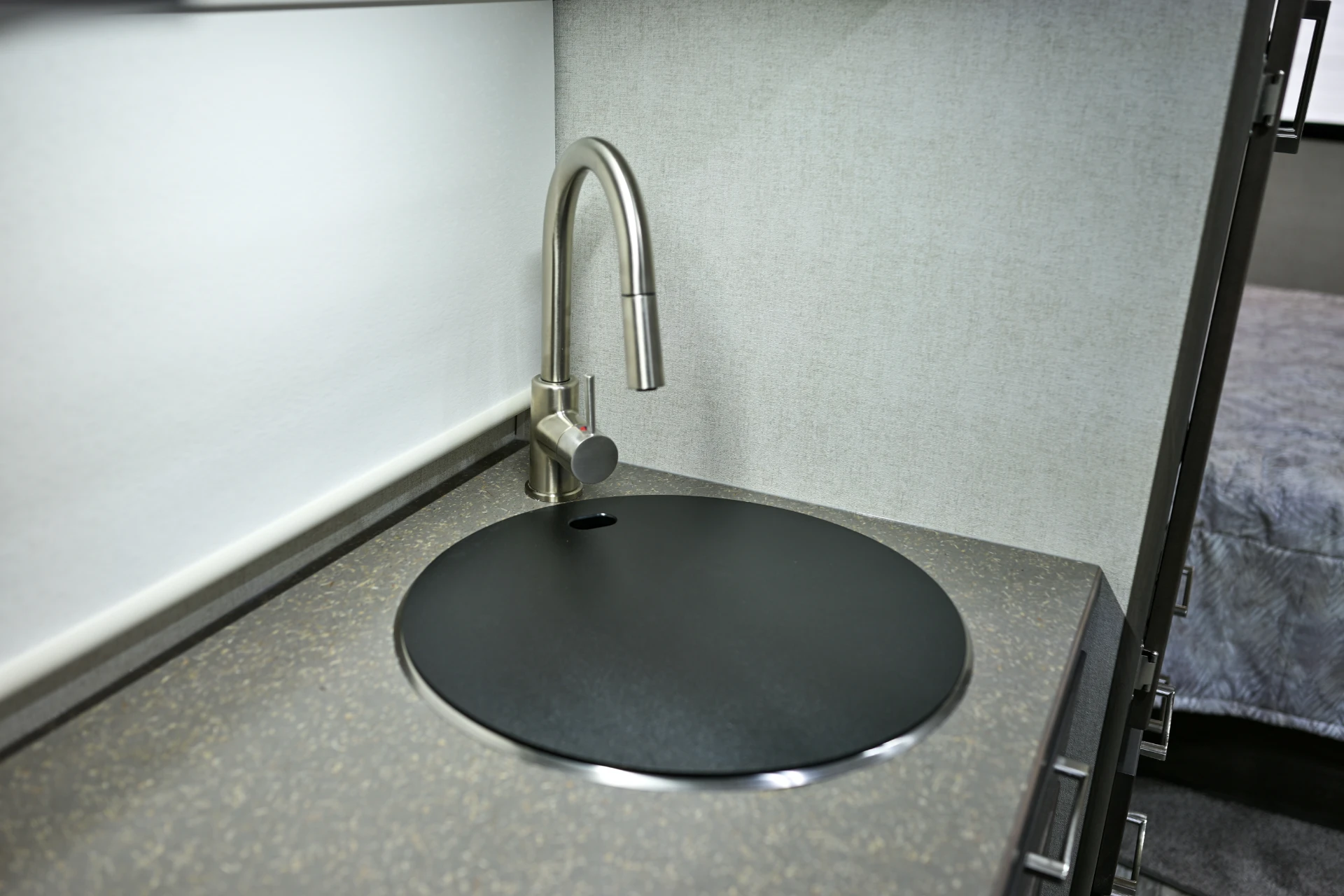

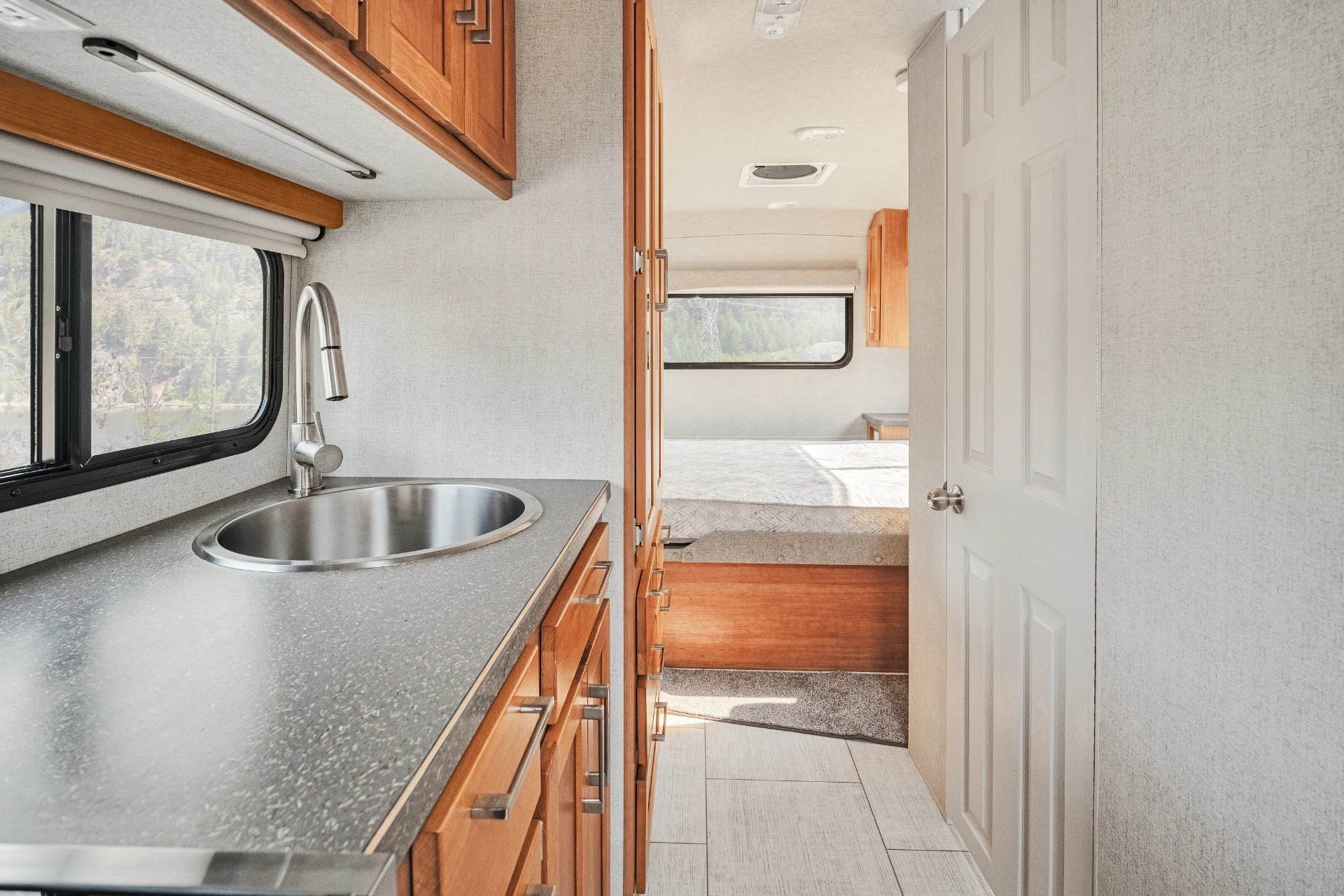

- Round Stainless Steel Sink with Hi-Rise Faucet
- Cutting Board

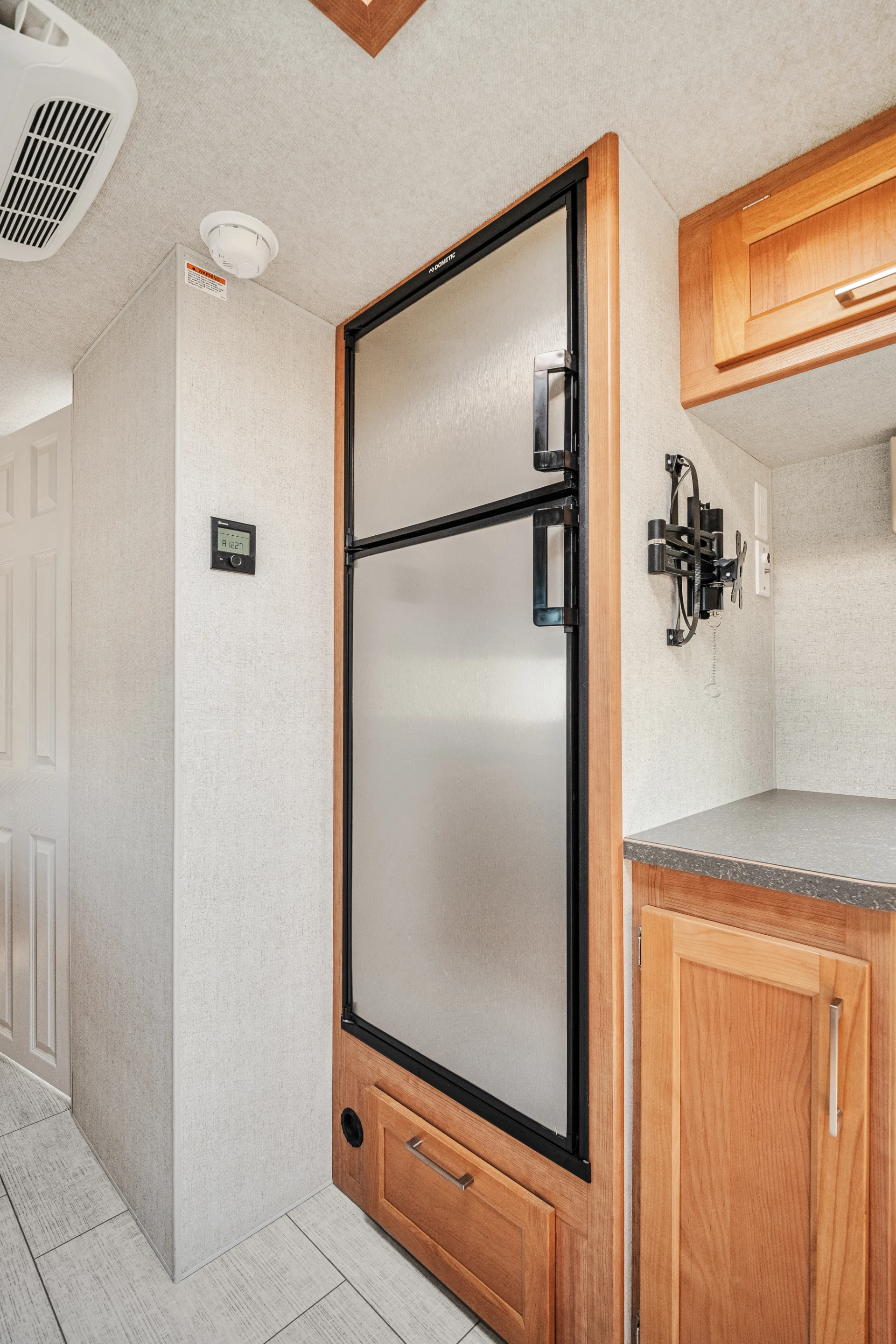

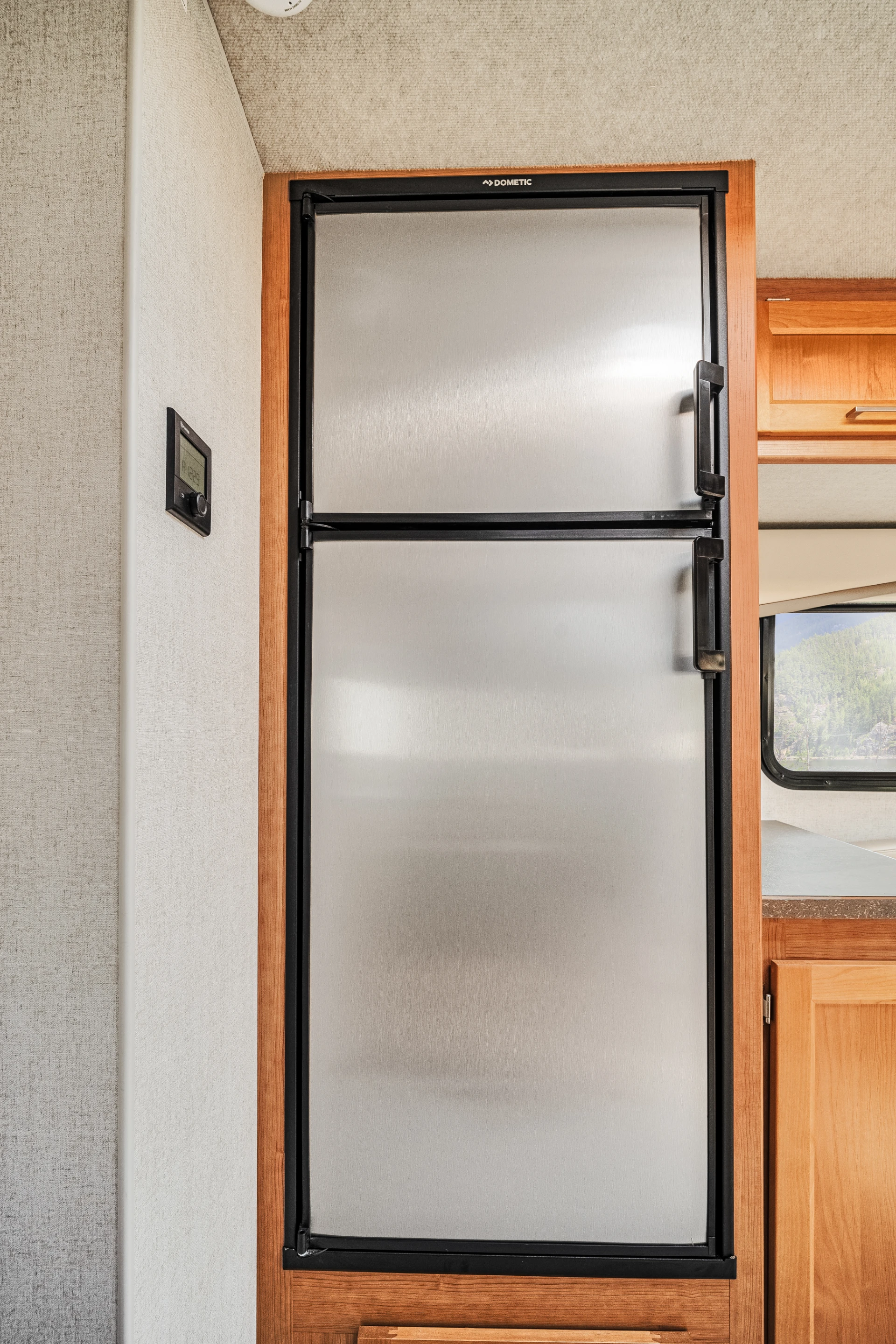

- Stainless Steel 2 Way Refrigerator
Plumbing
- City Water Hookup

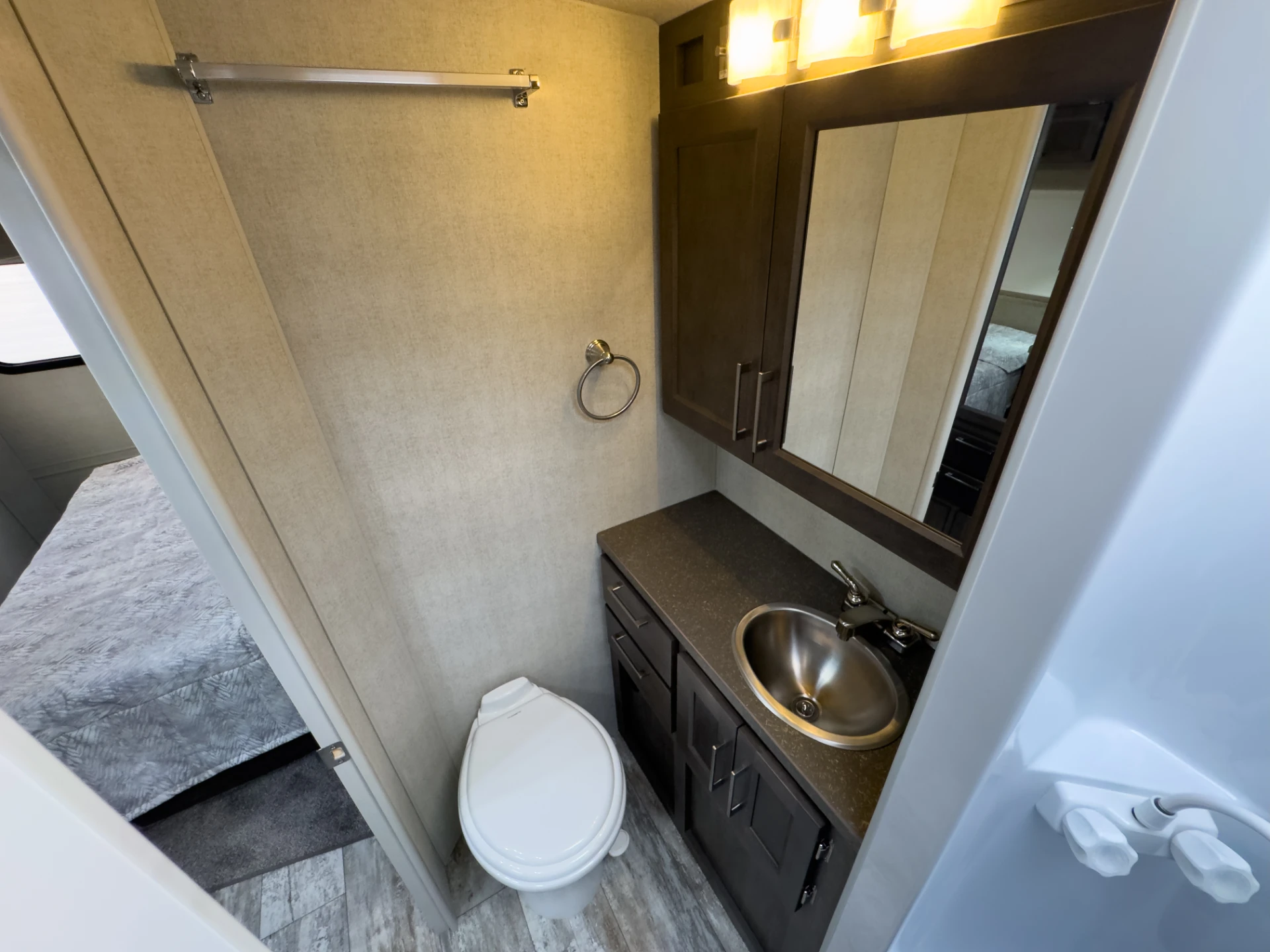

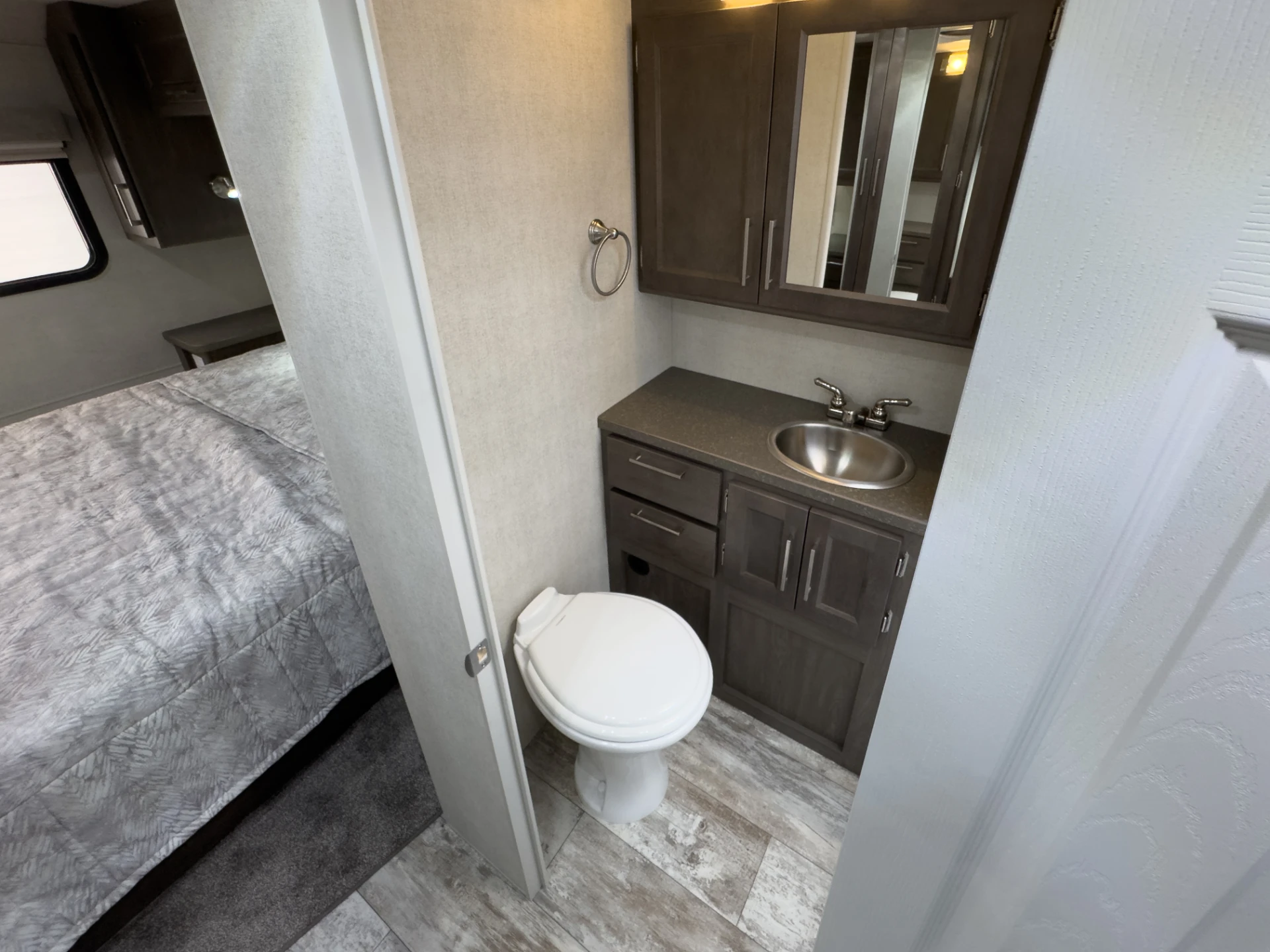

- Porcelain Toilet
- 12 Volt Demand Water Pump System

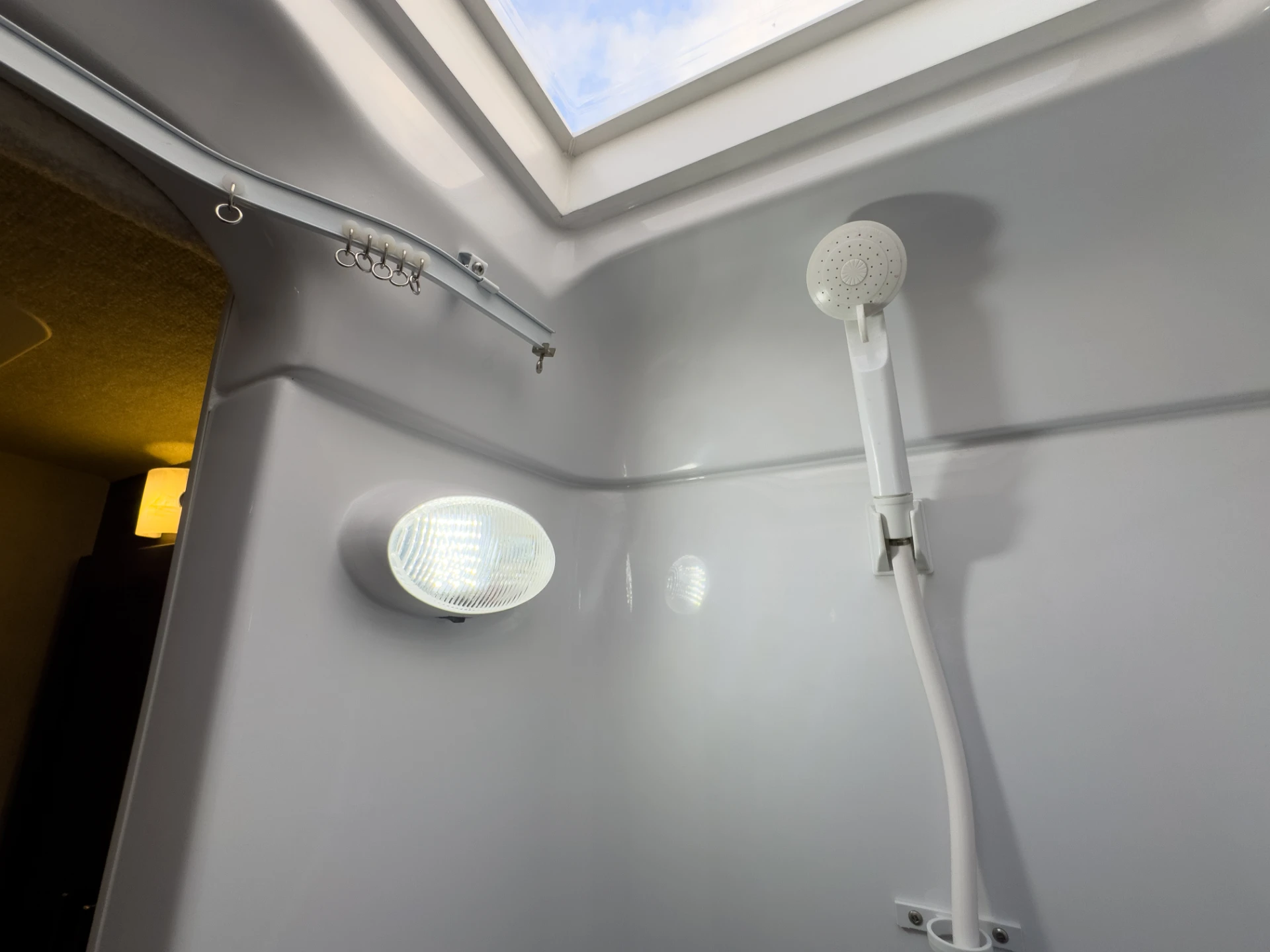

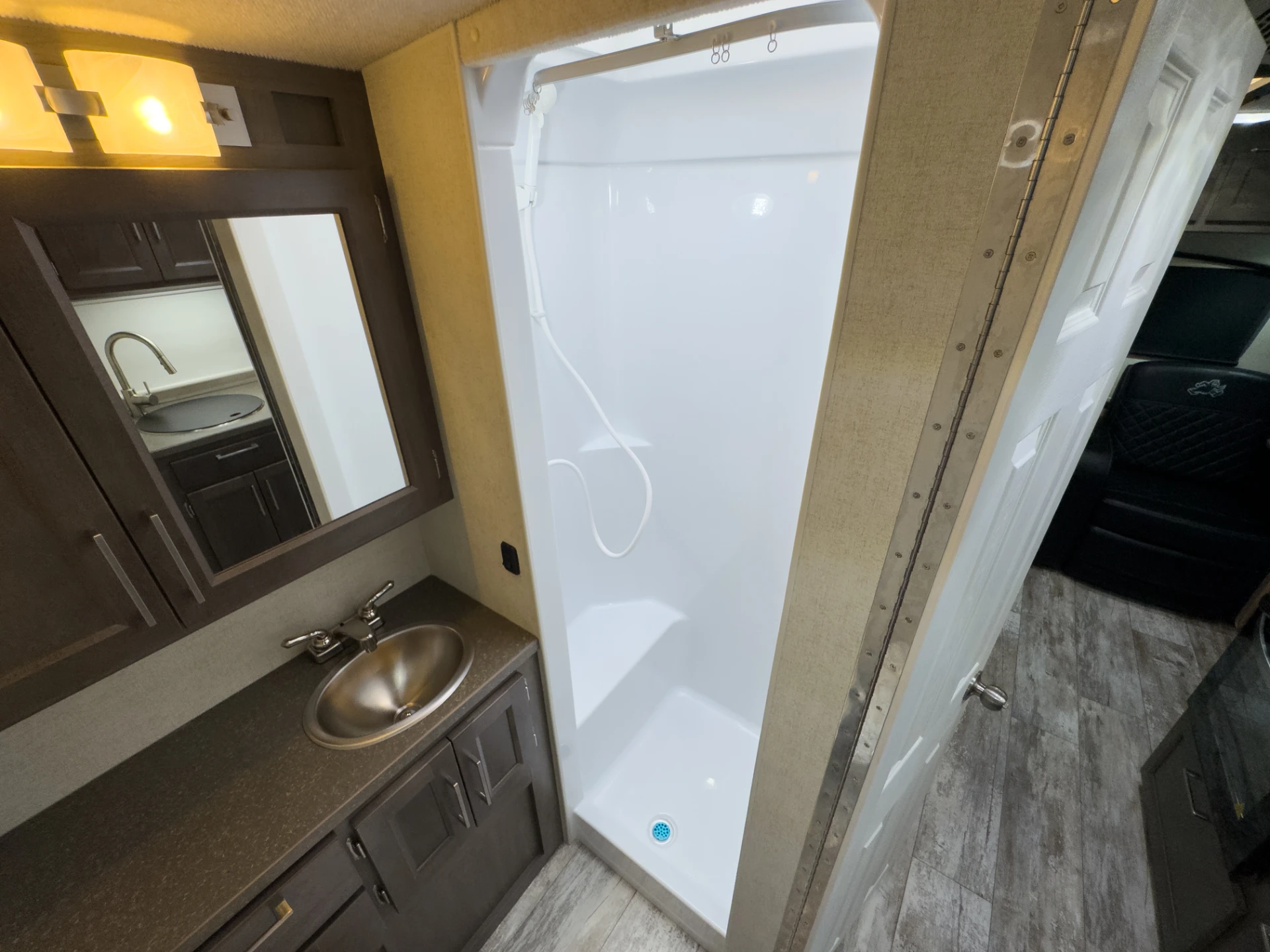

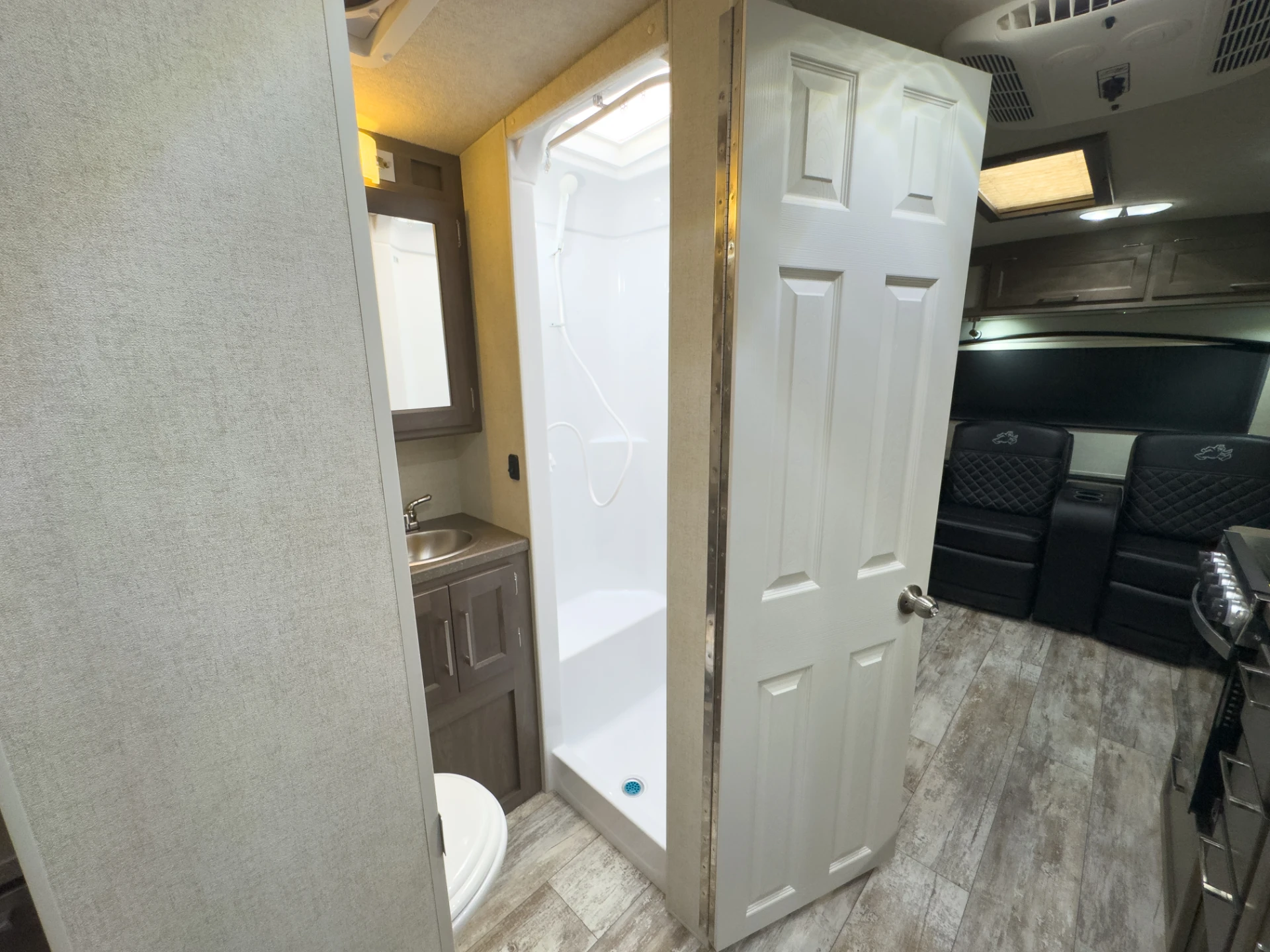

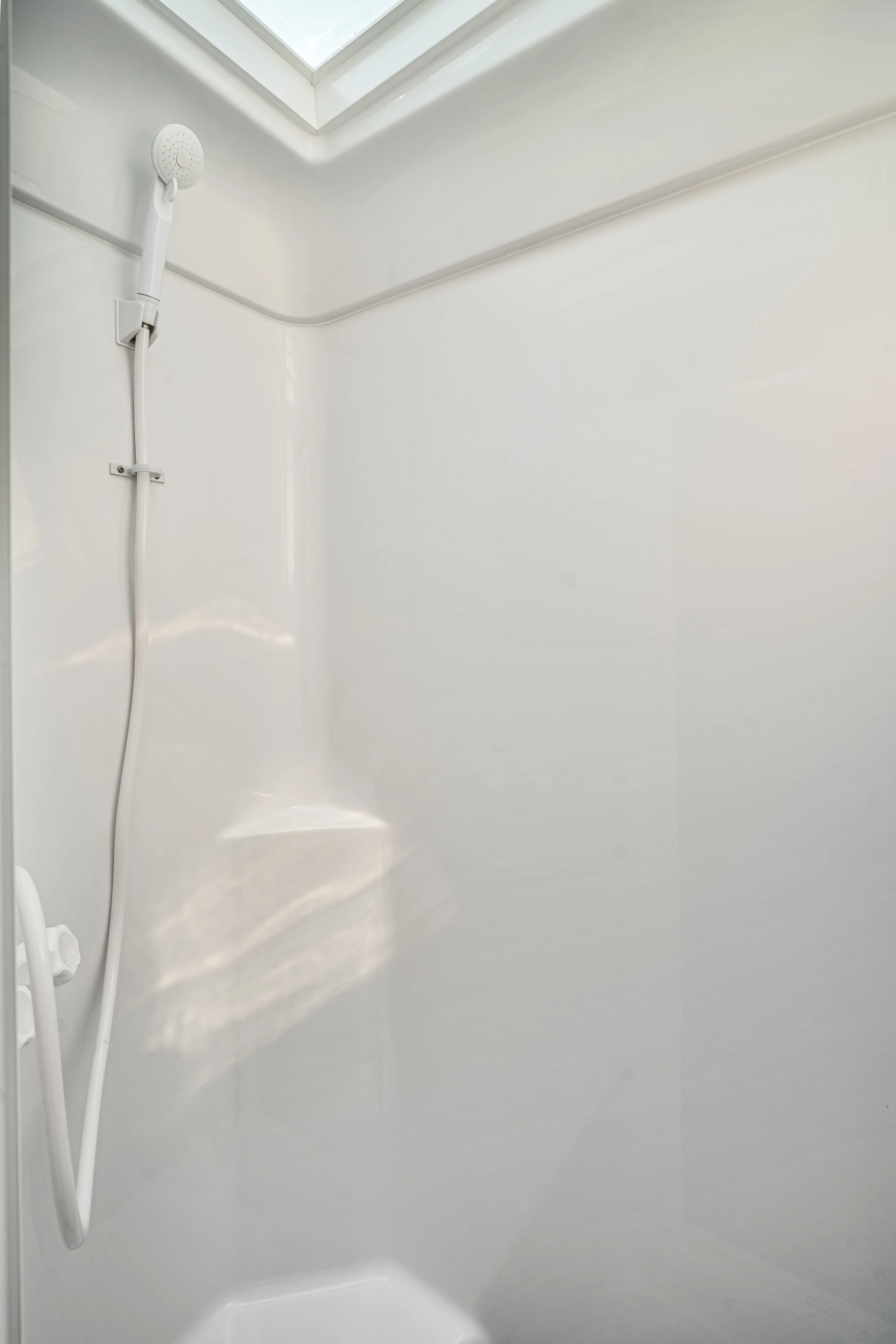

- Molded Fiberglass Shower Enclosure
- Exterior Shower with Winterizing Valves
- Water Heater Bypass System & RV Antifreeze Pickup System for Winterization
- Heated and Enclosed Holding Tanks
- Black Tank Rinse System
- LP / 110V Hot Water Heater
Options (sold separately) available for the 25B25RQ — tailor your build through your dealer.

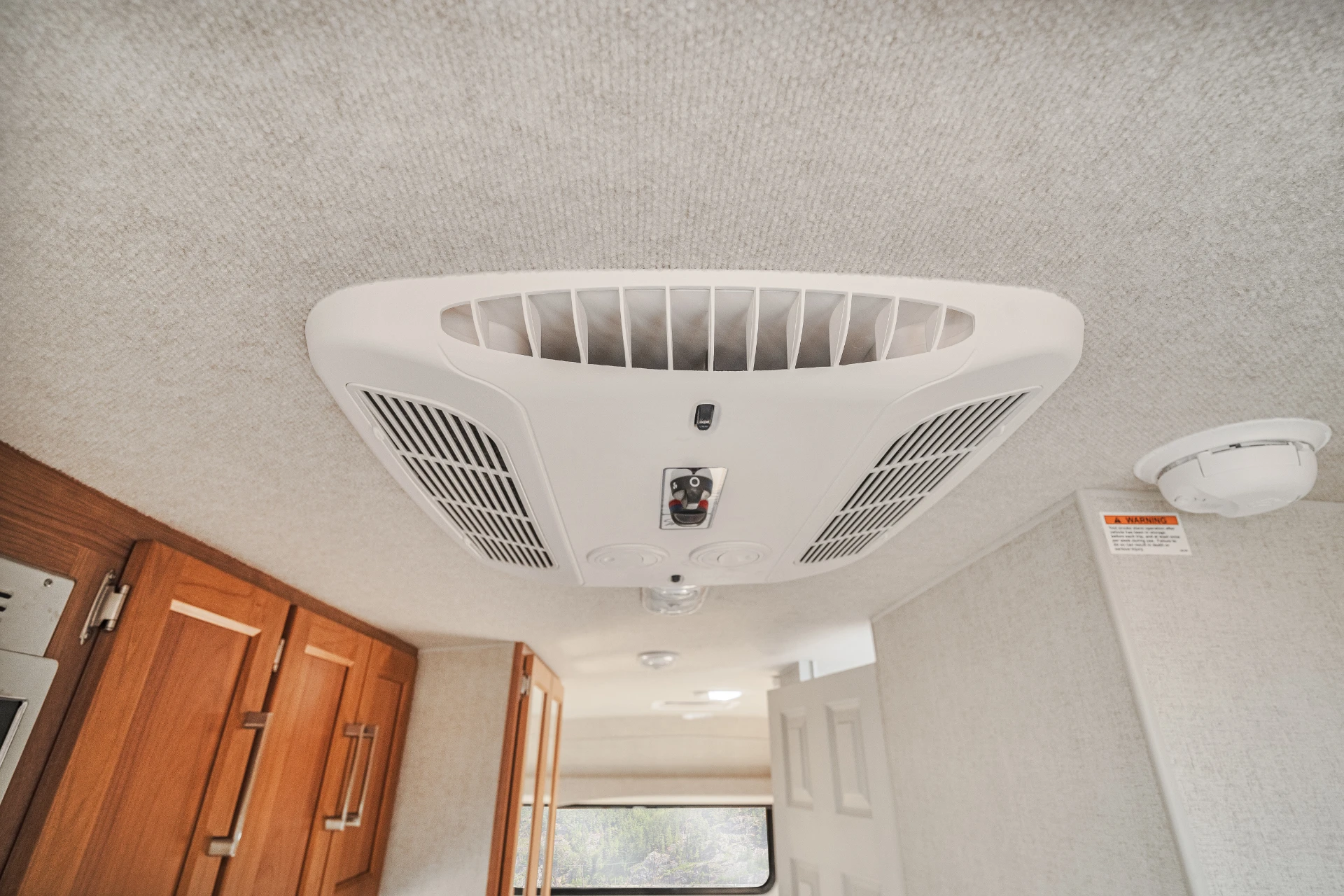

- Air Conditioner - MACH 10 NDQ - 13,500 BTU
- Air Conditioner - Truma Aventa Eco
- Winegard AIR 360 & LP 5G Antenna
- Exterior Stereo Speakers
- Maxxair Exhaust Fan (Bathroom)
- Maxxair 2 Way Fan (Bedroom and/or Galley)
- Fiberglass Front Cargo Box (Adds 2' to length of Trailer)
- Generator Ready Package with Auto Transfer Switch
- Generator - Cummins Onan 2.5kW Propane
- LCD 12 Volt TV
- Leather Decor Upgrade (Simulated)
- Privacy Curtain
- RV BBQ Hook Up
- Receiver for 2" Bike Rack
- Rear Roof Rack
- Rollaway Shower Door
- Wireless Rear View Camera System
- EcoFlow Power System - includes 5kW Lithium Battery and 3.6kW Inverter with option of adding 2kW and 5kW Batteries, includes 400W solar panels
- Truma Combi Comfort Plus (replaces hot water heater & furnace)
- Two Inch Lift
- Truma Aquago (On Demand Water Heater)
- Twin Beds

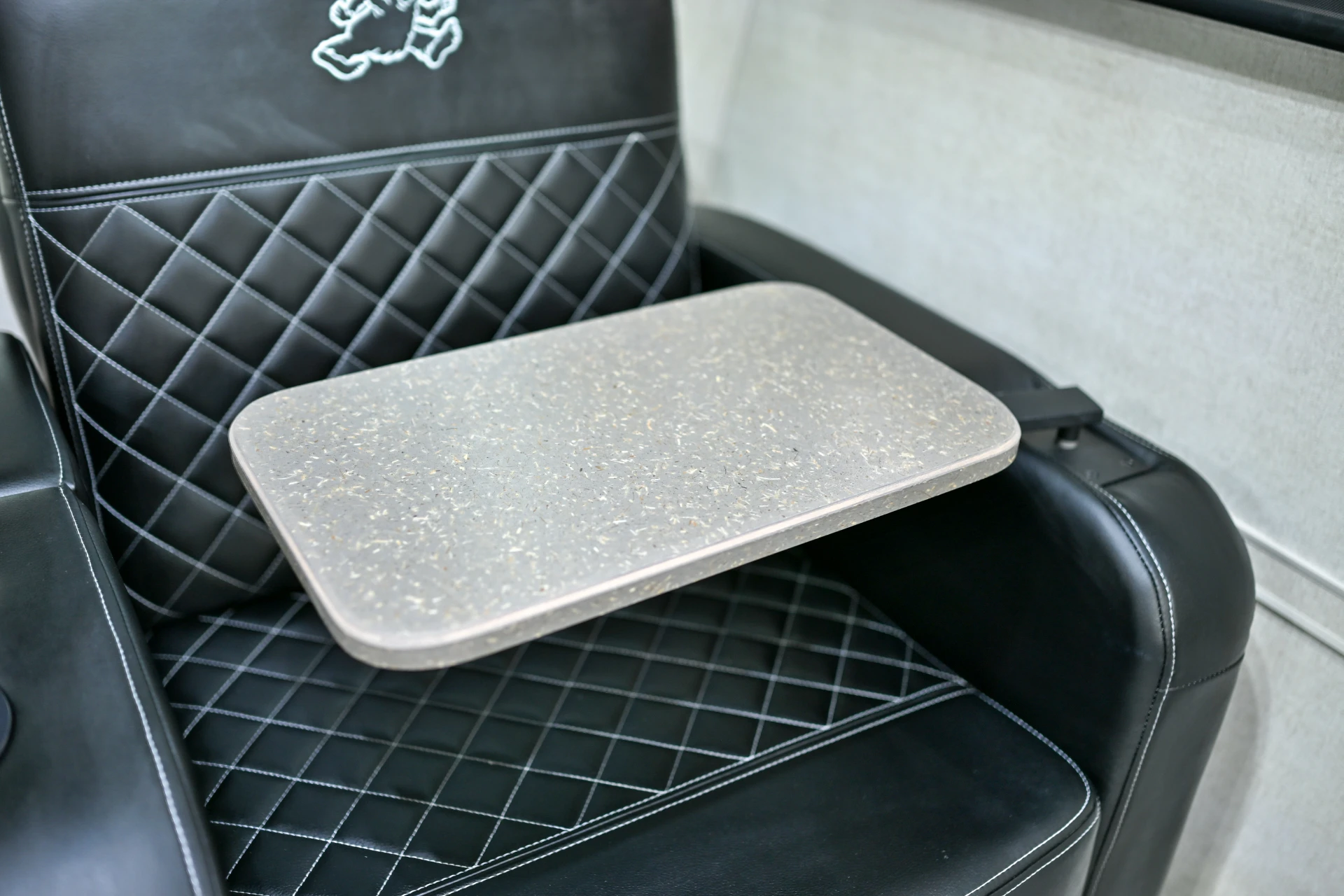

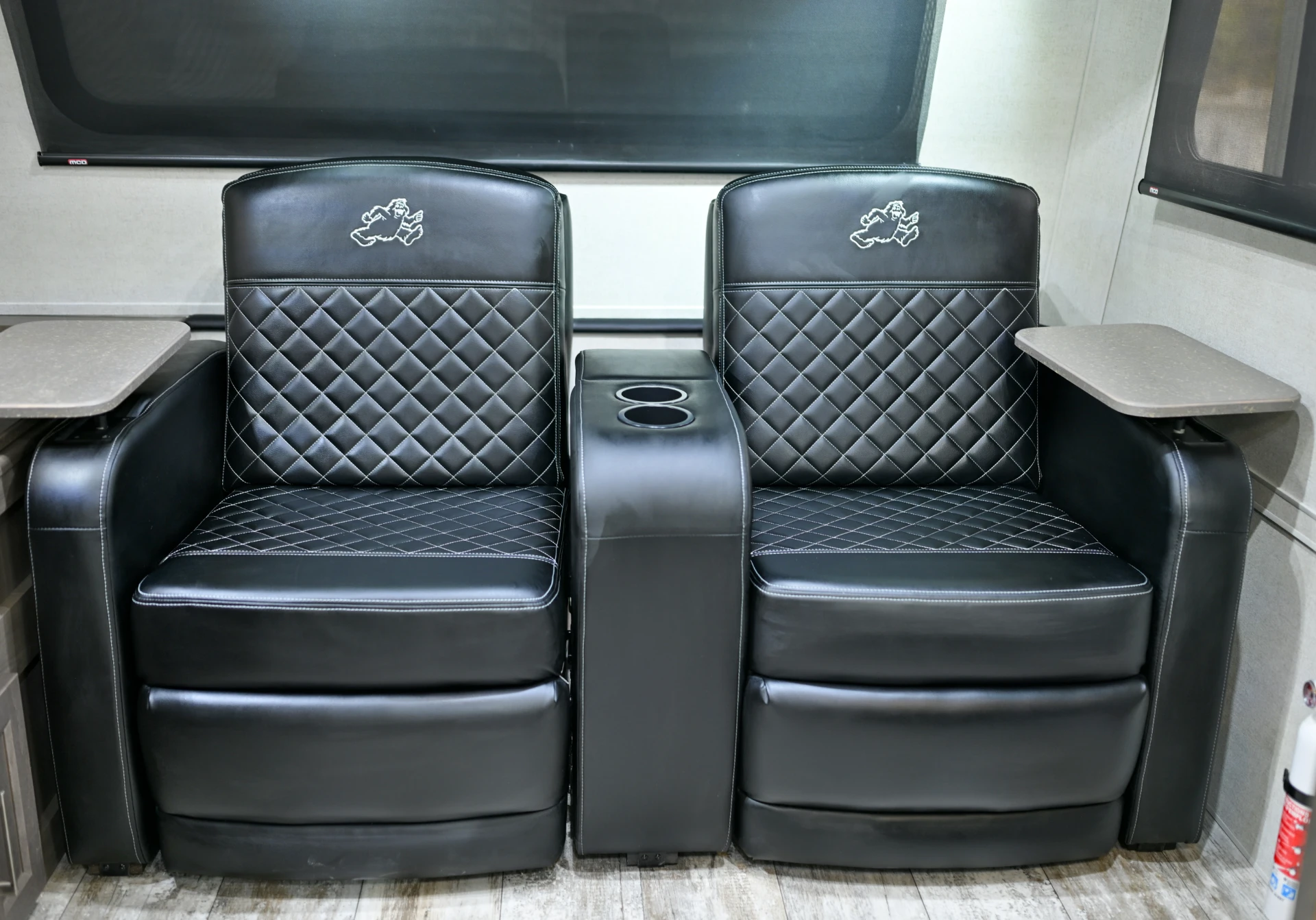

- Theater Seats (Leather Decor Required)
- LCD Prep Package - Bedroom
- LCD 12 Volt TV - Bedroom

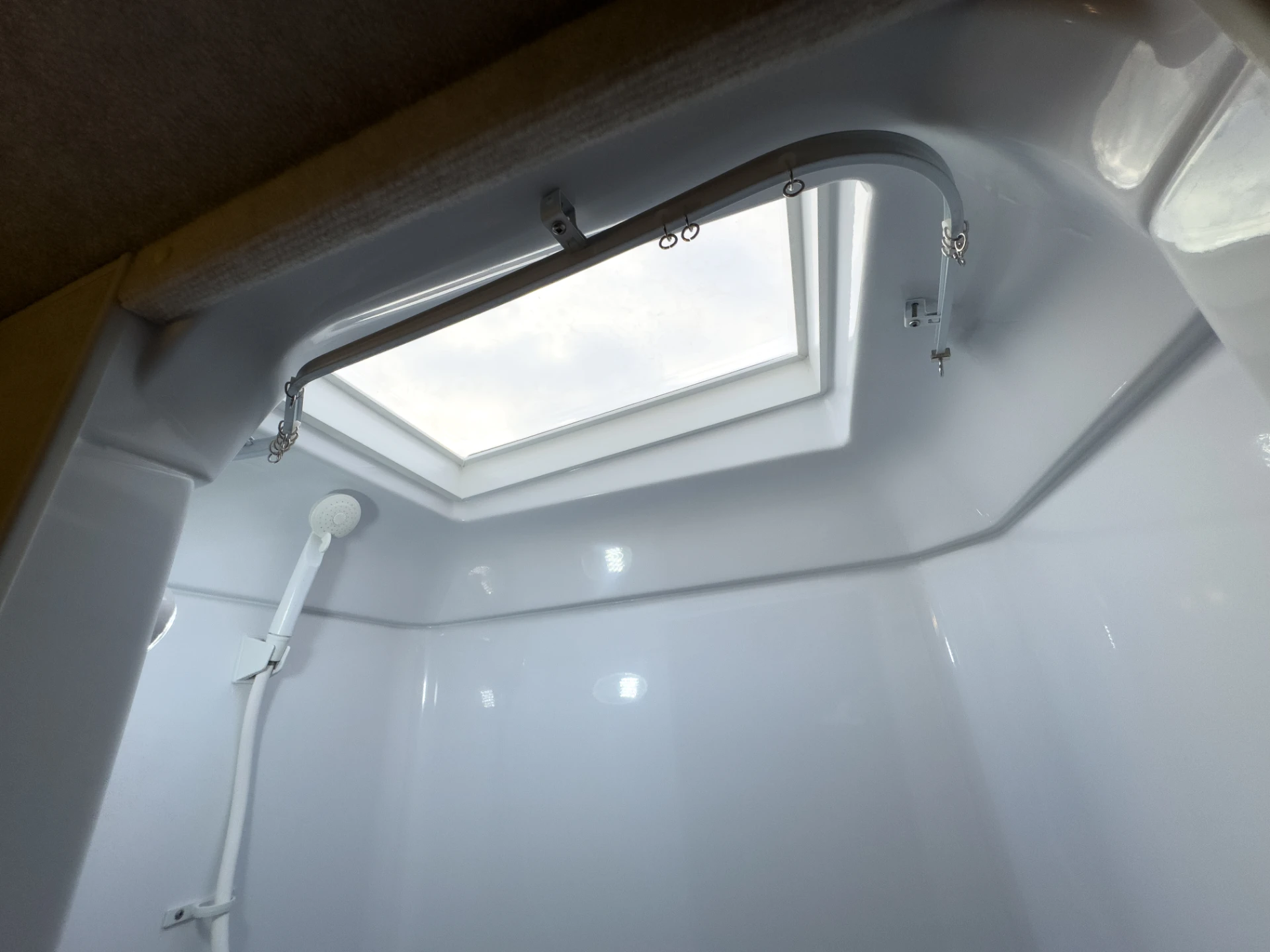

- Skylight in Shower
Personalize your Bigfoot RV with our curated selection of premium interior materials and finishes.
Onyx LeatherUpholsteryValances
Quick Silver LeatherUpholsteryValances
Windswept LeatherUpholsteryValances
Evolution LeatherUpholsteryValances
Windswept FabricUpholsteryValances
Evolution FabricUpholsteryValances
Canoe BirchCabinets
DriftwoodCabinets
Birch PlankFlooring
CarpetFlooring
Counter LaminateSurfaces
Wall VinylSurfaces
Marine HeadlinerSurfaces
