01C9.5 Series

C9.5FR

Name: C9.5 C9.5FR
Brand: Bigfoot RV

Designed for long-box trucks, the C9.5 series provides more interior space and storage while maintaining the lightweight advantages of the 1500 series.

Find a Dealer

See the layout

02Floor Plan

The C9.5FR Layout

Click to enlarge

03Specs & Equipment

Detailed specifications for C9.5FR.

Overall Length16'-6" (5.03 m)

Overall Height7'-5" (2.26 m) (Truck bed to top of refrigerator vent)

Overall Width7'-11" (2.41 m)

Interior Height6'-7" (2.03 m)

Base Dry Weight2,245 lbs (1,019 kg)

Fresh Water32 gal (122 L)

Grey Water11 gal (42 L)

Black Water14 gal (53 L)

LPG Capacity40 lbs (18 L)

Water Heater6 gal (23 L)

Furnace20,000 BTU

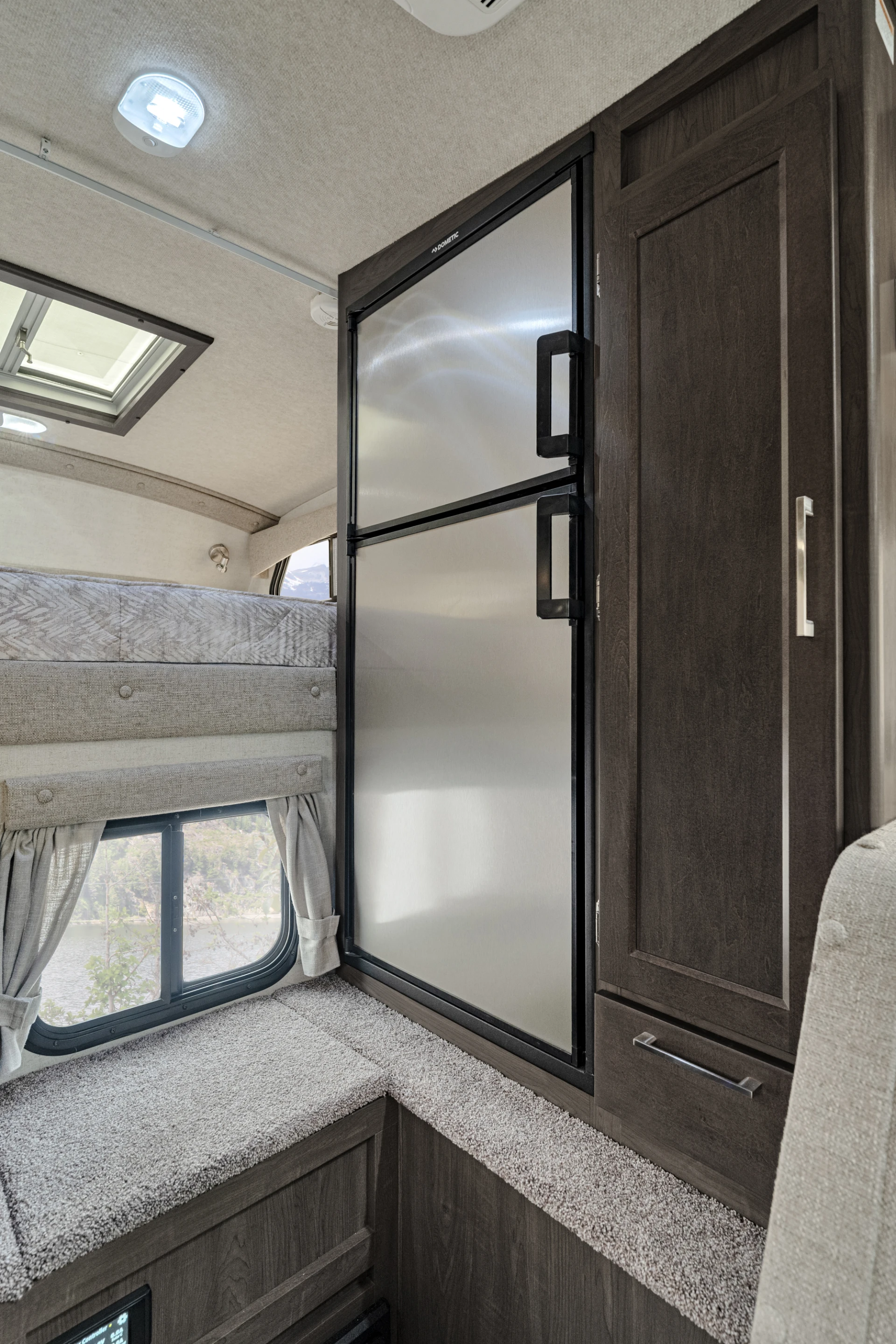

Fridge6 cu ft (170 L)

Standard equipment included on every C9.5FR — built in at the factory, no upgrades required.

Exterior

Lightweight Two Piece Fiberglass Exterior Shell
1” 2 Lbs (Type 3) High Density EPS Insulation (R6)
Radius Corner Solar Reflective Safety Glass Thermal Pane Windows with Screens
Folding Assist Handle
LED Exterior Clearance and Directional Lighting
Propane Tank Storage Compartment
Dual 20 lb Propane Tanks with Auto Changeover & OPD Valves
Sewer Hose Storage Compartment
Cab Thru Window (Not Tinted)

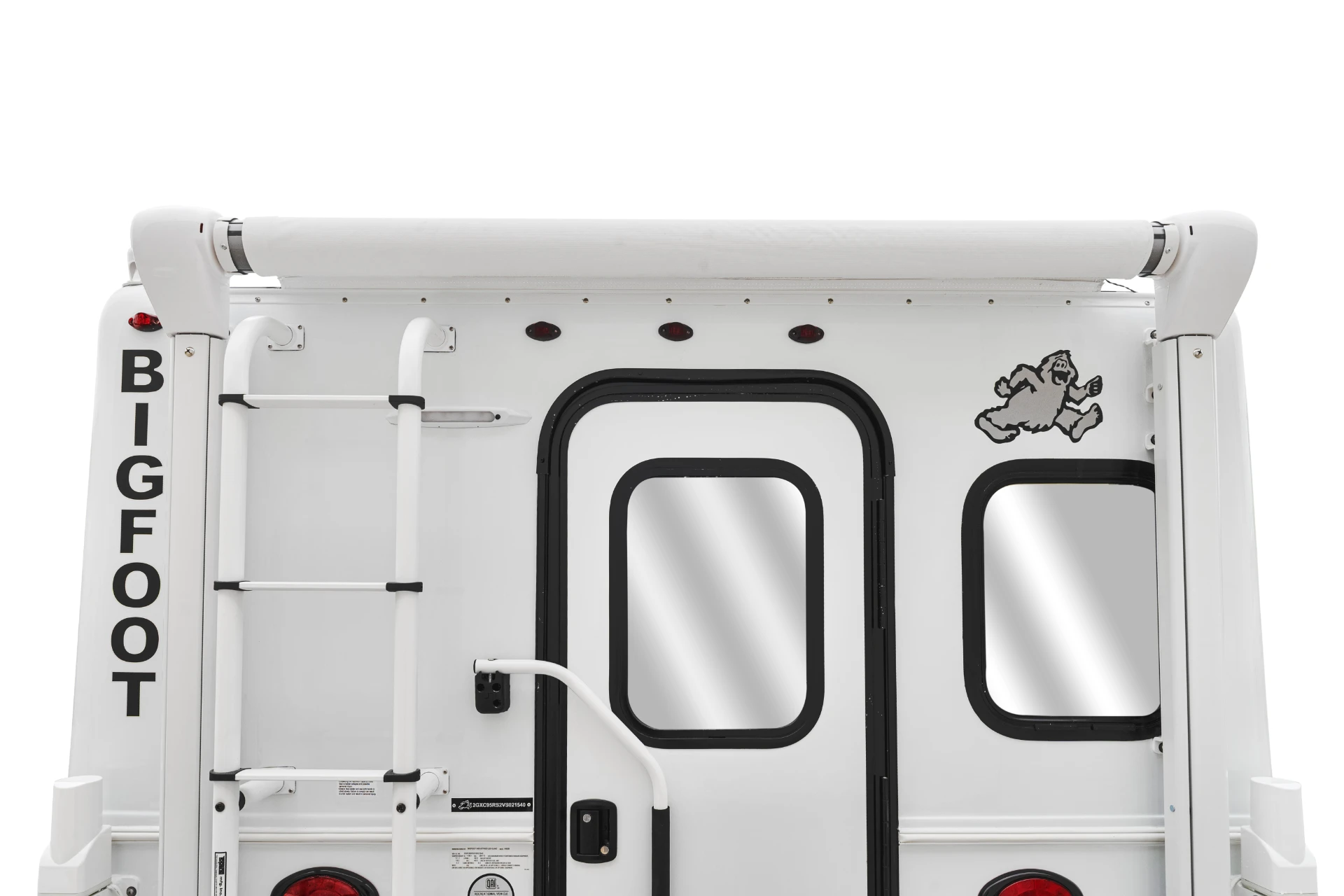

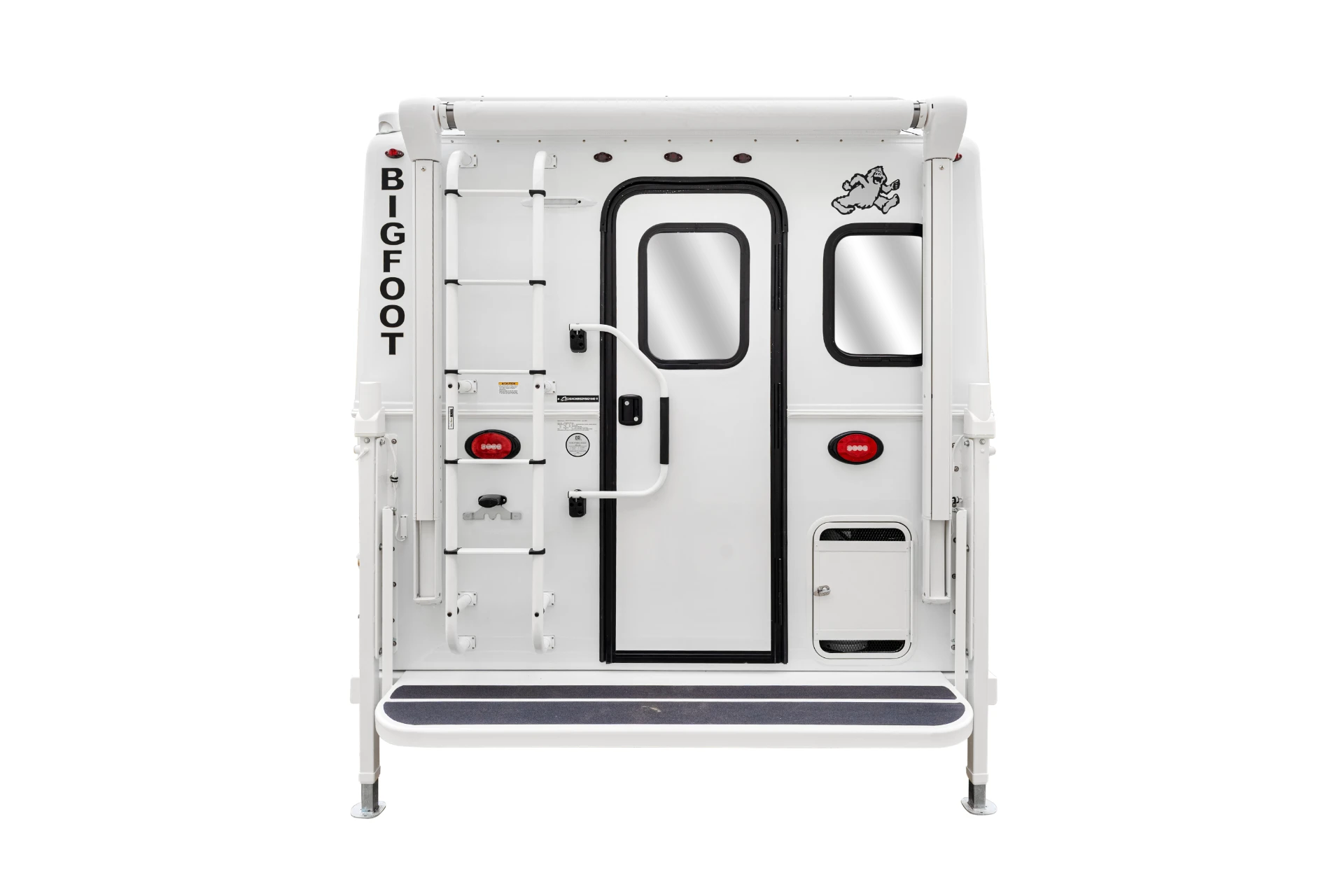

Ladder
Mechanical Power-Coated Jacks

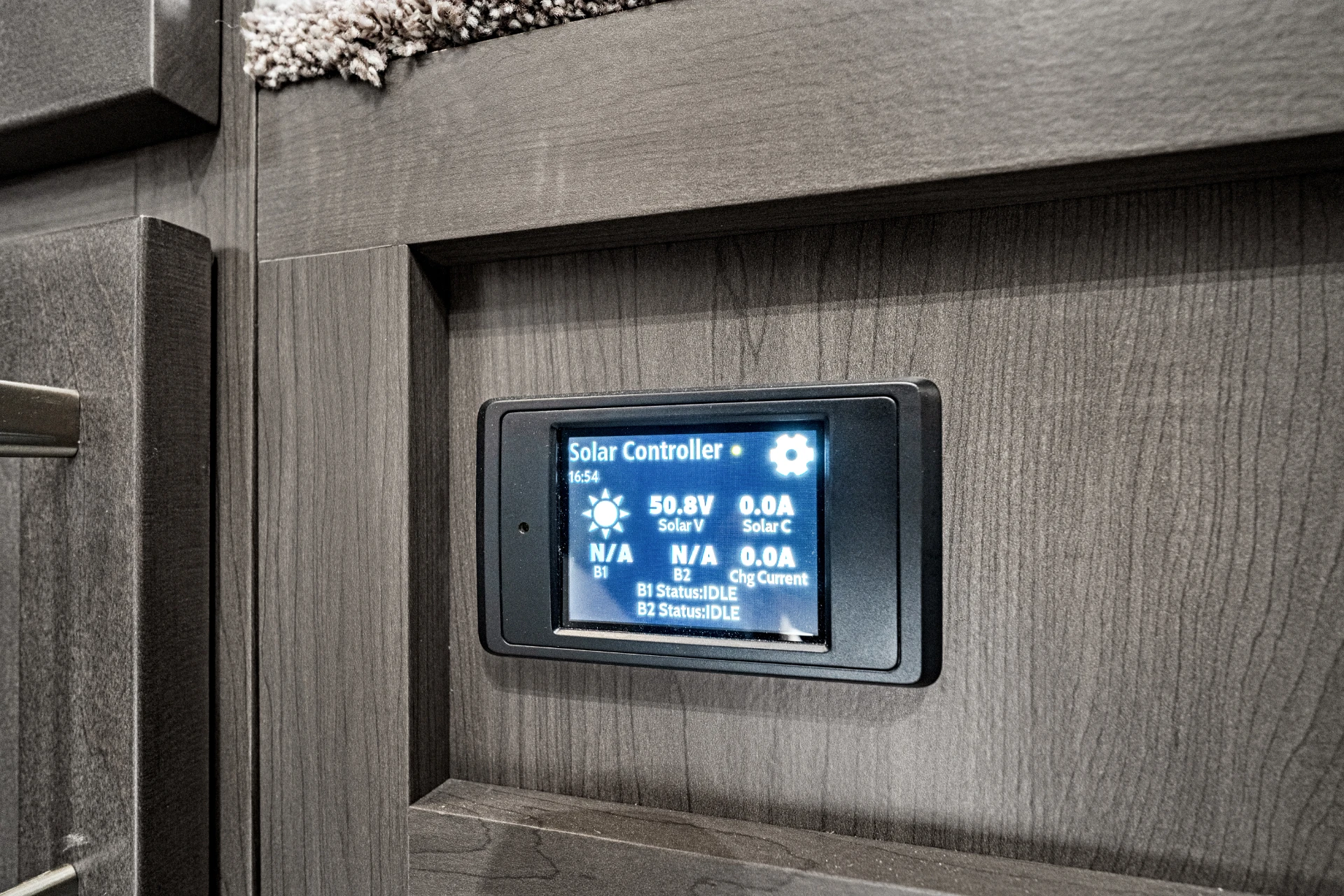

Solar System - 400 Watt solar panel with charge controller

Interior

Washable Vinyl Wall Panelling
Marine Quality Fabric Headliner
Face Framed Double Screwed Cabinets

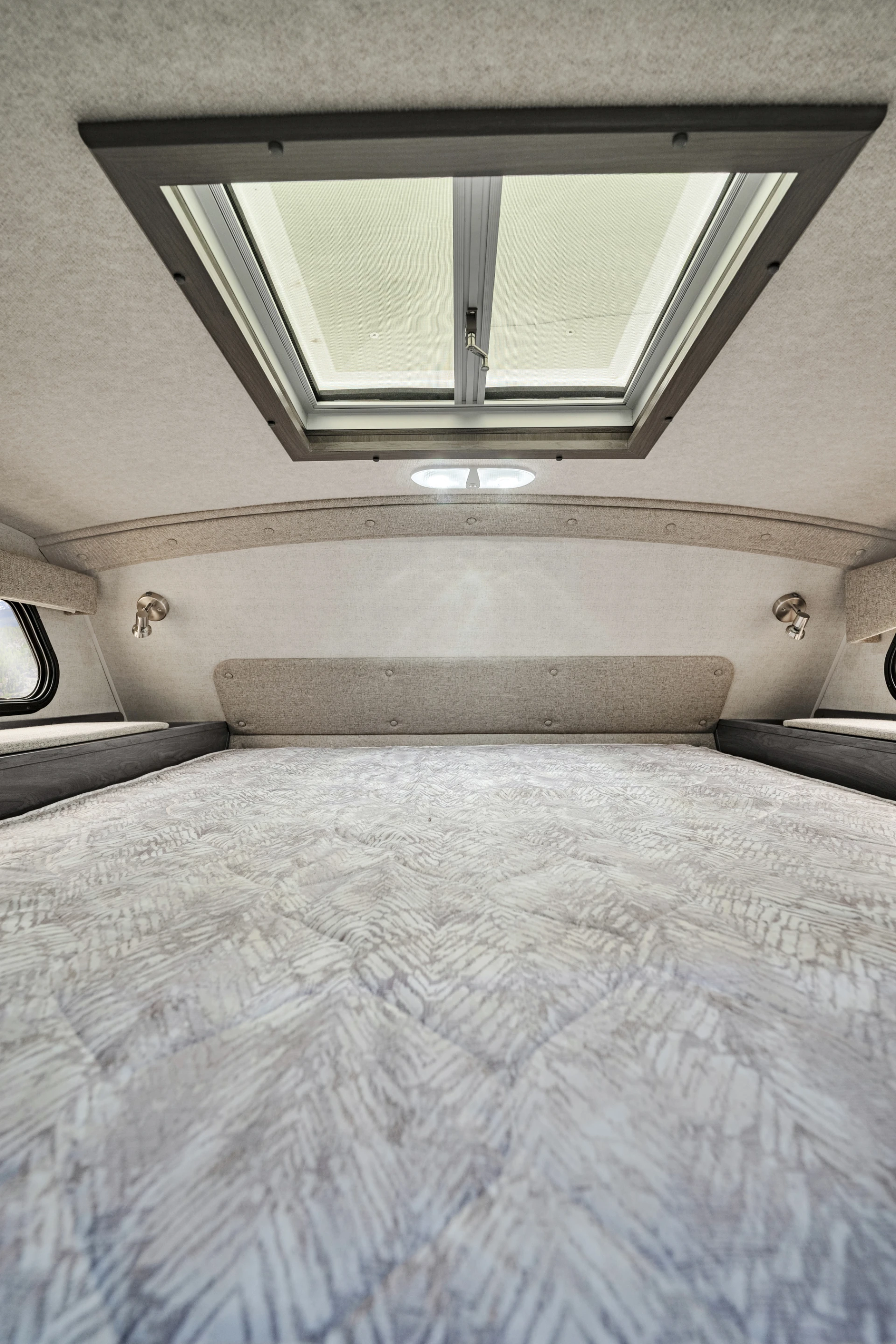

Spring Filled Foam Mattress
36" Headroom in Bunk Area
Shirt Closet in Bunk Area
Roller Shades
Bedside Storage Cabinets
TV Shelf
LED Lighting

Electrical

Electrical Battery Disconnect
Electrical 120 VAC / 30 Amp Service / 45 Amp DC Power Converter with Battery Charger
Pre-wired for Roof Air Conditioner

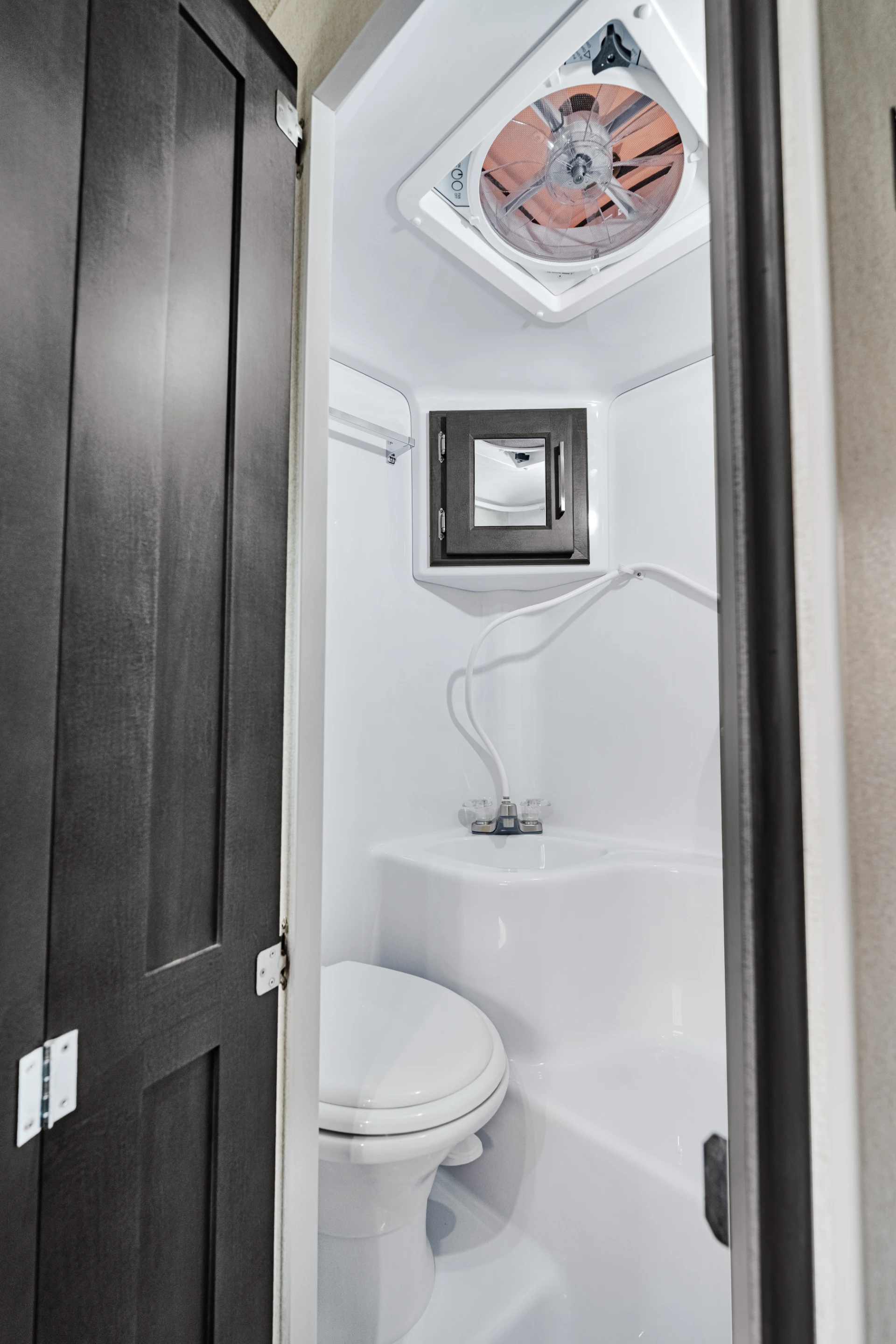

Power Fan in Bathroom
Maxxair Fan (choice of location)
Battery Ready
Exterior Lights (3)
